JBL Control 60PS/T-WH 8-Inch Pendant Subwoofer Speaker with Crossover (Pair), 150W @ 8 Ohm or 70V/100V Line - White

JBL Control 60PS/T-WH 8-Inch Pendant Subwoofer Speaker with Crossover Features

- High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers
- 200 mm (8 in) long-excursion driver
- 8 ohm (150 Watt) and 70V/100V (100 Watt) operation
- Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp
- Stylish design, available in black or white (-WH)
- UL listed (speaker and hanging cable system)

JBL Control 60PS/T-WH 8-Inch Pendant Subwoofer Speaker with Crossover Specifications

- Frequency Range (-10dB): 42 Hz - 350 Hz
- Frequency Response (±3 dB): 55 Hz - 125 Hz
- Power Rating: 300 Watts Continuous Program Power, 100 hrs 150 Watts Continuous Pink Noise, 100 hrs
- Nominal Sensitivity (2.83V/1m): 88 dB
- Maximum SPL (1m): 107 dB @ 1 m (3.3 ft) average, 113 dB peak
- Impedance: 8 ohms
- Transformer Taps: 110W, 55W, 30W (& 15W@70V). Set via rotary tap-selector switch (70V/100V taps along with direct 8 Ohm)
- Transformer Insertion Loss: 0.98 dB @ 15W, 0.99 dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W
- Standalone Hookup: Connect to Input connector; built-in low-pass filter permanently engaged. Loop Out in parallel with Input connector (pre low-pass filter) for sending to additional speakers.
- Subwoofer-Satellite Hookup: For either two or four satellite speakers (not for one or three satellite speakers). With two satellite speakers, must connect to Sat 1 and Sat 2 terminals only (NC to Sat 3 and Sat 4 terminals). Satellite outputs highpassed. Suggested satellite speakers include Control 62P (pendant), Control 52 (surface-mount on-wall) and Control 42C (in-ceiling). Satellite speakers to be low-Z type (8 to 16
- Drivers: 200mm (8 in) polypropylene-coated paper cone with butyl rubber surround, 50 mm (2 in) high-temperature copper voice coil, vented fiberglass resin voice coil former.
- Enclosure Material: High impact polystyrene
- Grille: Zinc-plated steel grille with powder-coat finish, foam backing (grille and grille backing are removable for painting)
- Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splash-proof rating
- Input Connectors: Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included.
- Suspension: Two identical suspension cable systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long, 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cable has SWL rating of 45 kg (99 lb).
- Safety Agency: Speaker listed per UL1480 (UEAY), transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple- brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
- Dimensions (H x W x D): 333 mm (13.1 in) diameter, 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
- Net Weight (each): 7.6 kg (16.7 lb)
- Shipping Weight: 17.6 kg (38.7 lbs) per pair-packed carton

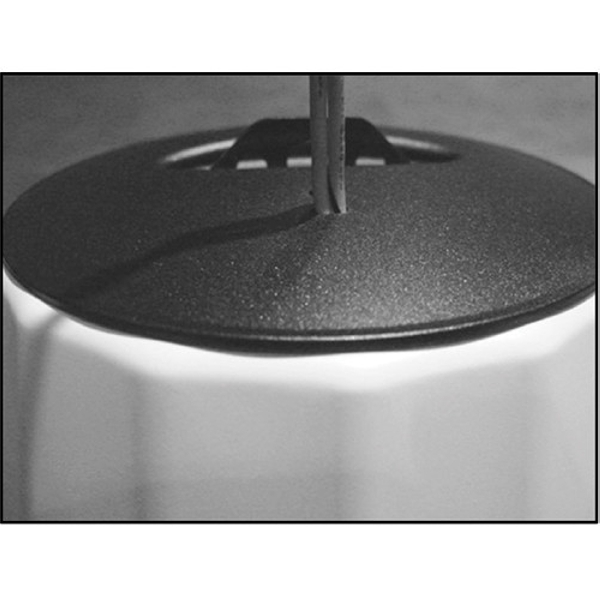

- Optional Accessories: MTC-PC60 full top panel / terminal cover. Wire access holes in plastic cover to be drilled by installer to suit the number and dimensions of wire.
- Colors: Available in black or white (-WH). Paintable

Further Product Information Below

JBL Control 60PS/T-WH WH Data Sheet (PDF)

JBL Control 60 Series Installation Instructions (PDF)

JBL Control 60PS/T-WH 8-Inch Pendant Subwoofer Speaker with Crossover Supplied With

- Two suspension cable systems (see "suspension", above)
- Six removable locking 2-pin euro-block connectors
- Six rubber cover boots for euroblock connectors
