JBL Control 50 Pack Surface-Mount Subwoofer-Satellite Loudspeaker System, 100W @ 4 Ohms or 70V/100V - Black

JBL Control 50 Pack Surface-Mount Subwoofer-Satellite Loudspeaker System Features

- Versatile four satellite speaker system
- Stylish, unobtrusive design ?ts into a wide variety of decor
- High ?delity sound
- Selectable 70V/100V for distributed lines, or low impedance
- Wall-mount brackets included

JBL Control 52 Satellite Speaker for Subwoofer-Satellite Loudspeaker System Features

- Stylish, unobtrusive design fits into a wide variety of decors
- Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
- 16 ohms impedance
- Wall-mount brackets included

JBL Control 50S/T Surface-Mount Subwoofer for Subwoofer-Satellite Loudspeaker System Features

- Full bandwidth 32 Hz - 20 kHz high fidelity sound
- Selectable 70V/100V for distributed lines, or low impedance
- Versatility for either two or four satellite speakers per system

JBL Control 50 Pack Surface-Mount Subwoofer-Satellite Loudspeaker System Specifications

- Frequency Range (-10dB): 32 Hz - 20 kHz
- Frequency Response (±3 dB): 50 Hz - 17 kHz
- Power Rating:
  - 200 Watts Continuous Program Power (100 hrs)
  - 100 Watts Continuous Pink Noise (100 hrs)
- Sensitivity: System: 87 dB with 4 satellites, 85 dB with 2 satellites (depends on subwoofer boundary loading, see application note)
- Impedance: 4 ohms with 4 satellites, 8 ohms with 2 satellites
- Transformer Taps: 80W, 40W, 20W, (& 10W @ 70V), plus bypass/thru (listed as 8 ohms on switch to indicate subwoofer impedance
- Maximum SPL (1m): System: 107 dB with 4 satellites, continuous (113 dB peak)
- 105 dB with 2 satellites, continuous (111 dB peak) (depends on subwoofer boundary loading, see application note)
- Input Connectors: Removable locking 2-pin connectors with screw-down terminals.
- Grille: Zinc-plated steel
- Mounting Hardware: C50S/T: 2-part flush wall-mount bracket included.
- C52: Wall swivel ball bracket included
- Included Accessories: See Control 50S/T & Control 52

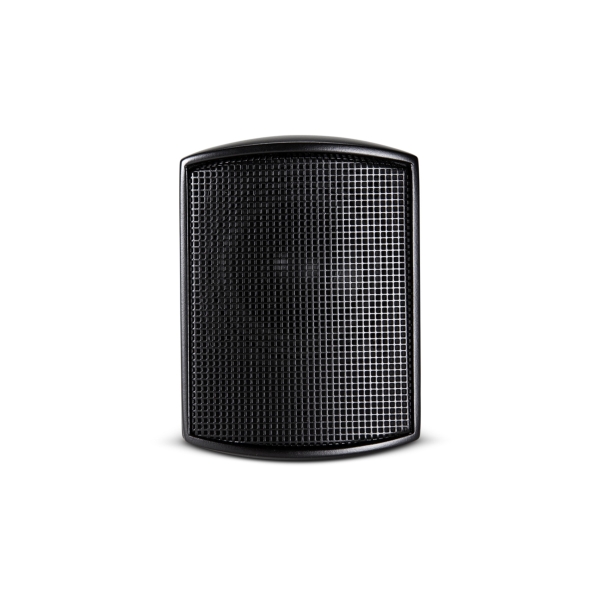

JBL Control 52 Satellite Speaker for Subwoofer-Satellite Loudspeaker System Specifications

- Frequency Range (-10dB): 140 Hz - 20 kHz
- Frequency Response (±3 dB): 180 Hz - 17 kHz
- Power Rating:
  - 50 Watts Continuous Program Power (2 hrs)
  - 25 Watts Continuous Pink Noise (2 hrs)
  - 30 Watts Continuous Program Power (100 hrs)
  - 15 Watts Continuous Pink Noise (100 hrs)
- Sensitivity: 85 dB (4.0V/1m = 1W), 82 dB (2.83V, 1m)
- Coverage Angle: 150° x 150° (omnidirectional)
- Maximum SPL (1m): 94 dB average, 100 dB peak
- Impedance: 16 ohms
- Drivers: 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension.
- Input Connectors: Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2)
- Enclosure: High impact polystyrene, painted zinc-plated metal grille.
- Dimensions (H x W x D): Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in)Wall bracket: 51 mm (2.0 in)
- Net Weight (each): 0.7 kg (1.5 lbs)
- Shipping Weight: 0.8 kg (1.8 lbs)
- Grille: Zinc-plated steel
- Mounting Hardware: Included wall swivel ball bracket
- Optional Accessories: Wall-mount ball-type bracket

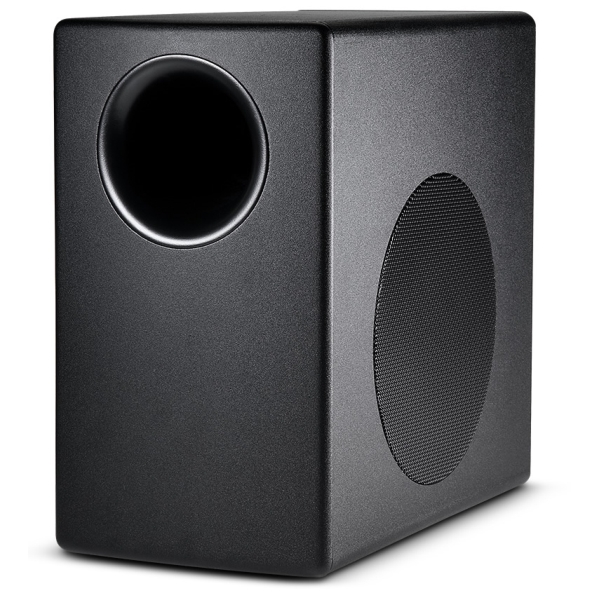

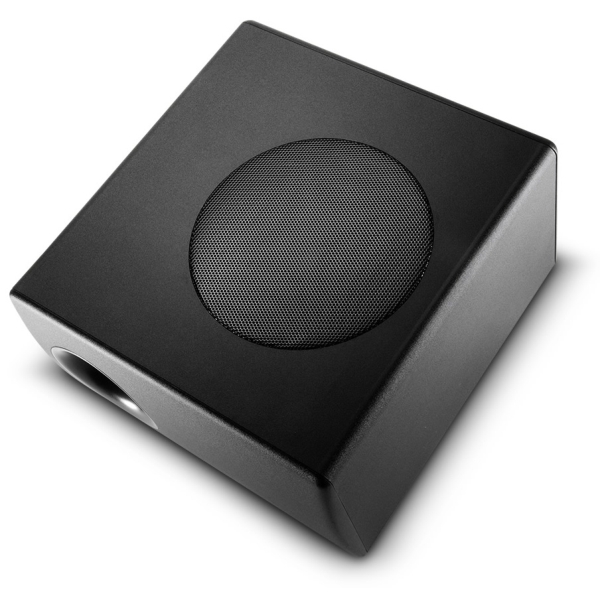

JBL Control 50S/T Surface-Mount Subwoofer for Subwoofer-Satellite Loudspeaker System Specifications

- Frequency Range (-10dB): 32 Hz - 200 Hz
- Frequency Response (±3 dB): 50 Hz - 150 Hz
- Power Capacity:
  - 300 Watts Continuous Program Power (2 hrs)
  - 150 Watts Continuous Pink Noise (2 hrs)
  - 200 Watts Continuous Program Power (100 hrs)
  - 100 Watts Continuous Pink Noise (100 hrs)
- Sensitivity: 95 dB (near corner), 89 dB (center of wall)
- Maximum SPL (1m): 115 dB average, 121 dB peak (near corner)109 dB average, 115 dB peak (center of wall)
- Impedance: 8 ohms (in bypass/thru mode)
- Transformer Taps: 80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru
- Drivers: 200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former
- Input Connectors: Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2)
- Enclosure: Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal.
- Dimensions (H x W x D): Cabinet: 356 x 391 x 203 mm (14.0 x 15.4 x 8.0 in)Wall Bracket: 15 mm (0.6 in) deep
- Mounting Hardware: 2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel
- Net Weight (each): 9.0 kg (20 lbs)
- Shipping Weight: 10.2 kg (23 lbs)
- Grille: Zinc-plated steel

Further Product Information Below

JBL Control 50 Pack Data Sheet (PDF)

JBL Control 50S-T Subwoofer Data Sheet (PDF)

JBL Control 52 Satellite Speaker Data Sheet (PDF)

JBL Control 50 Pack Surface-Mount Subwoofer-Satellite Loudspeaker System Supplied With

- JBL Control 50S/T Subwoofer
- 4x JBL Control 52 Satellite speakers
- Wall bracket (both speaker and wall parts)
- 2-pin locking connector
- Wall bracket (both speaker and wall parts)
- 4x M6 screws to attach to speaker
- 6x 2-pin locking connectors
- terminal cover
- M6 screw for safety lanyard attachment
