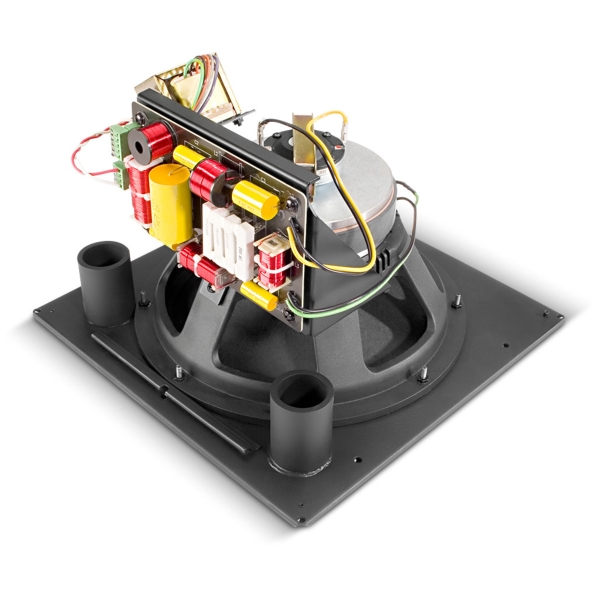

JBL Control 322C 12-inch High-Output Coaxial Ceiling Loudspeaker, 250W @ 8 Ohms

JBL Control 322C 12-inch High-Output Coaxial Ceiling Loudspeaker Features

- Consistent 90° broadband pattern control
- Components
  - Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone
  - Medium-format compression driver
- Extraordinary clarity for speech and vocals with extended frequency response for music
- Power handling of 400 Watts with high sensitivity provides high SPL capability
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange
- Clean, contemporary grille and optional backbox available

JBL Control 322C 12-inch High-Output Coaxial Ceiling Loudspeaker Specifications

- Frequency Range (-10dB): 32 Hz - 20 kHz
- Power Rating: IEC Long-Term System Power Rating:
- 400 W continuous pink noise (1600 W peak), 2 hrs 250 W continuous pink noise (1000 W peak), 100 hrs
- Sensitivity: 95 dB (1 kHz - 16 kHz)
- Frequency Response (±3 dB): 48 Hz - 19 kHz
- Coverage Angle: 90° conical, constant directivity
- Directivity Factor (Q): 9 (1k - 16kHz)
- Directivity Index (DI): 9.5dB (1k - 16kHz)
- Crossover Network: 1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
- Impedance: 8 ohms
- Dimensions (H x W x D): 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 223 mm (8.8 in)
- Maximum SPL (1m): 121 dB (127 dB peak)
- Input Connectors: Screw locking barrier strip for bare wire
- Drivers:
  - LF Driver: 300 mm (12 in)
  - HF Driver: compression driver, 37 mm (1.5 inch) coil
- Color: White
- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB12. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Backcan: formed steel (wood-lined; accessory)
- Baffle/Rim: Metal, driver pre-mounted to baffle, ported.
- Ceiling Cutout Size: 378 x 378 mm (14.9 x 14.9 in) (for MTC-300BB12 backcan)
- Optional Accessories: MTC-300SG12 Grille, square contoured, white. MTC-300BB12 Backbox, 80 liters (3 cubic feet) MTC-300T150 Transformer, 150 W for use with 322C.
- Plenum Usage: Yes, with accessory backcan
