JBL Control 25AV-LS 5.25-Inch 2-Way Compact Indoor/Outdoor Speaker for EN54-24 Life Safety Applications (Pair), 100W @ 8 Ohms or 70V/100V Line - IP-X5, Black

JBL Control 25AV-LS 5.25-Inch 2-Way Compact Indoor/Outdoor Speaker for EN54-24 Life Safety Applications Features

- UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems; EN54-24 certified
- EN 54-24 Compliant for Life Safety Applications
- Video shielded for use near video monitors
- Extremely smooth frequency response
- Aluminum Grille with Polyester Powder Coating for enduring reliability
- 60 W transformer for 70 V or 100 V lines, with 8 ohms thru
- SonicGuard overload protection
- 130 mm (5.25-inch) polypropylene coated woofer, 10 mm (.75-inch) titanium coated horn-loaded tweeter
- Includes InvisiBall mounting hardware and sealed input panel cover
- Screw-down input terminals
- 105° x 85° high frequency horn

JBL Control 25AV-LS 5.25-Inch 2-Way Compact Indoor/Outdoor Speaker for EN54-24 Life Safety Applications Specifications

- Frequency Range (-10dB): 90 Hz - 20 kHz
- Power Rating: 200 Watts Continuous Program Power (at 8 ohm bypass mode) 100 Watts Continuous Pink Noise (at 8 ohm bypass mode) 60 Watts (at 60W tap setting)
- Transformer Taps: 60W, 30W, 15W (& 7.5W @ 70V)
- Sensitivity: 87dB, 1W at 1m (1kHz-10kHz, ave., at 8 ohm bypass mode); 71 dB, 1W at 4m per EN54-24 (100 Hz - 10 kHz, ave., 60W tap)
- Coverage Angle: 110° x 85° (1kHz to 16kHz)
- Directivity Factor (Q): 4.8 (500 Hz to 4kHz)
- Directivity Index (DI): 6.5dB (500 Hz to 4kHz)
- Maximum SPL (1m):
  - 107 dB @ 1m (3.3 ft) average, 113 dB peak at 8 ohms bypass mode
  - 89 dB @ 4 m (13.2 ft.) average, at 60W tap setting, measured
- Drivers:
  - LF: 130mm (5.25-inch) with polypropylene coated paper cone withWeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
  - HF: 20mm (.75-inch) titanium coated PEI
- Input Connectors: Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm)
- Enclosure: ABS, (materials rated UL94-5VA)

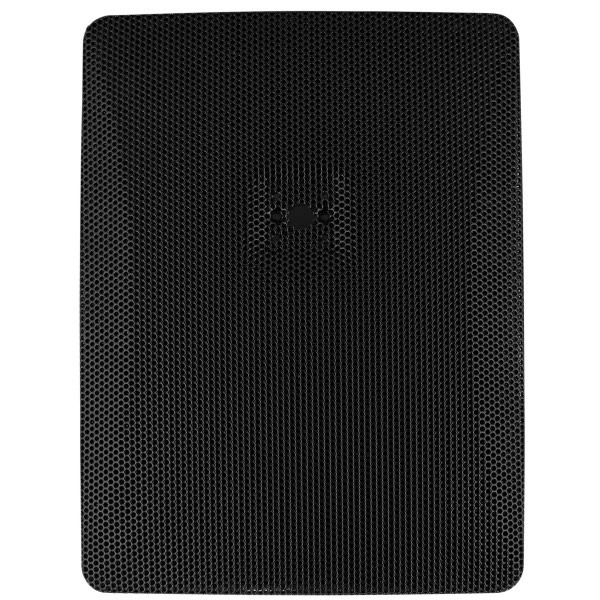

- Grille: Aluminum with polyester powder coating
- Outdoor Capability: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating
- Safety Agency: UL1480-UUMW Listed (S7232), EN54-24:2008 certified (Certificate No. 0359-CPR-00245), NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849
- Dimensions (H x W x D): 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
- Net Weight (each): 3.8 kg (8.4 lbs) ea
- Shipping Weight: 8.6 kg (19 lbs) pair
- Optional Accessories:
  - MTC-25V for vertical columnar mounting of up to 3 speakers
  - MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360° horizontal coverage.
  - MTC-28/25CM to install speaker down from the ceiling. See JBL Control Contractor Bracket and Adapter Handbook

Further Product Information Below

JBL Control 25AV-LS Data Sheet (PDF)

JBL Control Contractor Series Manual (PDF)

JBL Control Contractor Series Brochure (PDF)

JBL Control 25AV-LS 5.25-Inch 2-Way Compact Indoor/Outdoor Speaker for EN54-24 Life Safety Applications Supplied With

- 2x JBL Control 25AV-LS speakers
- 2x InvisiBall mounting base
- MTC-PC2 input panel cover
- 6 mm x 100 mm InvisiBall hex wrench
