JBL Control 25-1 5.25-Inch 2-Way Compact Indoor/Outdoor Speaker (Pair), 100W @ 8 Ohms or 70V/100V Line - IP44, Black

JBL Control 25-1 5.25-Inch 2-Way Compact Indoor/Outdoor Speaker Features

- Components:
  - 5.25-inch woofer with woven fiberglass cone
  - ¾-inch PEI diaphragm tweeter with fluid cooling
- Contemporary, high-design appearance
- Built-in InvisiBall mounting hardware*, plus available U-bracket
- Weather resistant enclosure and transducers
- Wide 100° x 100° coverage
- 100 Watt power handling (200 Watt program) in direct 8Ω setting, plus built-in 30 Watt 70V/100V multi-tap transformer
- High fidelity sound character with broad frequency response of 60 Hz - 20 kHz

JBL Control 25-1 5.25-Inch 2-Way Compact Indoor/Outdoor Speaker Specifications

- Frequency Range (-10dB): 60 Hz to 20 kHz
- Frequency Response (±3 dB): 85Hz - 17 kHz
- Power Rating: 200 W Continuous Program (2 hrs) 100 W (400W peak), Continuous Pink Noise (2 hrs) 75 W (300W peak) Continuous Pink Noise (100 hrs)
- Maximum Input Voltage: 25.3 V RMS (2 hrs), 50.6 V peak
- Maximum SPL (1m): 110 dB ave. Continuous Pink Noise (116 dB peak)
- Sensitivity: 90 dB, 1W/1m (ave. 100 Hz - 10 kHz)
- Coverage Angle: 100° x 100°
- Directivity Factor (Q): 6.04 (averaged 1kHz - 16kHz)
- Directivity Index (DI): 7.6dB (averaged 1kHz - 16kHz)
- Impedance: 8 ohms (THRU setting)
- Crossover Type: 2nd order low-pass, 3rd order high-pass

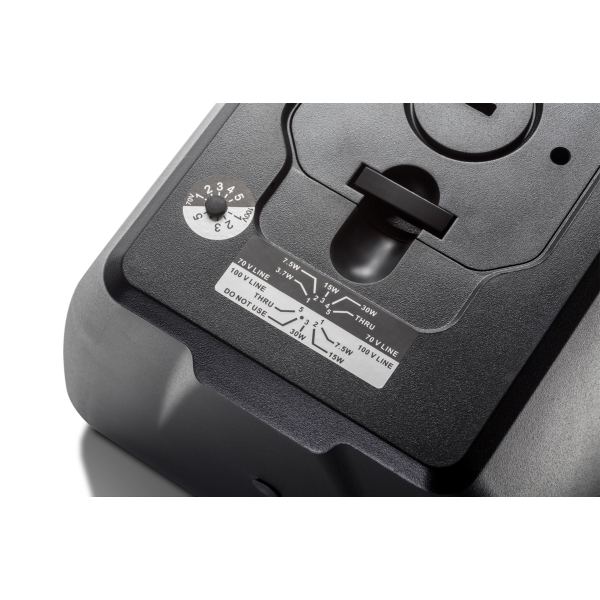

- Transformer Taps:
  - 70V: 30W, 15W, 7.5W, 3.7W
  - 100V: 30W, 15W, 7.5W
- Insertion Loss: <0.94 dB at any tap setting
- Thru Setting: 8Ω nominal
- Recommended ProtectiveHigh-Pass: 60 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings).
- Drivers:
  - LF: 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
  - HF: 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton voice coil former.
- Enclosure: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
- Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax multi-layer foam and tight-weave mesh vapor barrier backing.
- Mounting Hardware: InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
- Outdoor Capability: IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-25WMG-1 WeatherMax grille for breaking up driving rain and for especially difficult environments.

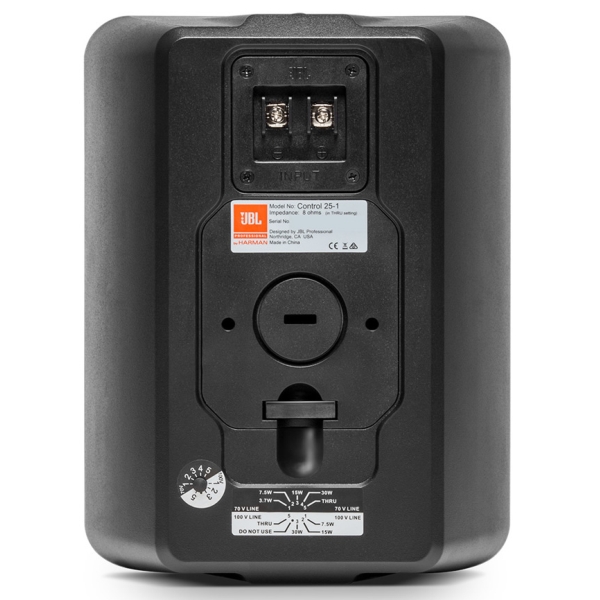

- Input Connectors: Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
- Safety Agency: ROHS-compliant; Transformer UL Recognized per UL1876
- Colors: Black (RAL9004) or white (-WH, RAL9016)
- Dimensions (H x W x D): 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket.
- Net Weight (each): 3.4 kg (7.5 lbs)
- Shipping Weight: 8.16 kg (18 lbs) for the pair-pack (for 2 speakers)
- Optional Accessories:
  - MTC-25UB-1 - Yolk-type U-bracket (&-WH)
  - MTC-25WMG-1 - WeatherMax grille with backing (&-WH)
  - MTC-28/25CM - Ceiling-Mount InvisiBall adapter (&-WH)

Further Product Information Below

JBL Control 25-1 Data Sheet (PDF)

JBL Control Contractor Series Manual (PDF)

JBL Control Contractor Series Brochure (PDF)

JBL Control 25-1 5.25-Inch 2-Way Compact Indoor/Outdoor Speaker Supplied With

- 2x JBL Control 25-1 speakers
- 2x InvisiBall wall-mounting system
- 6 mm x 100 mm InvisiBall hex wrench
