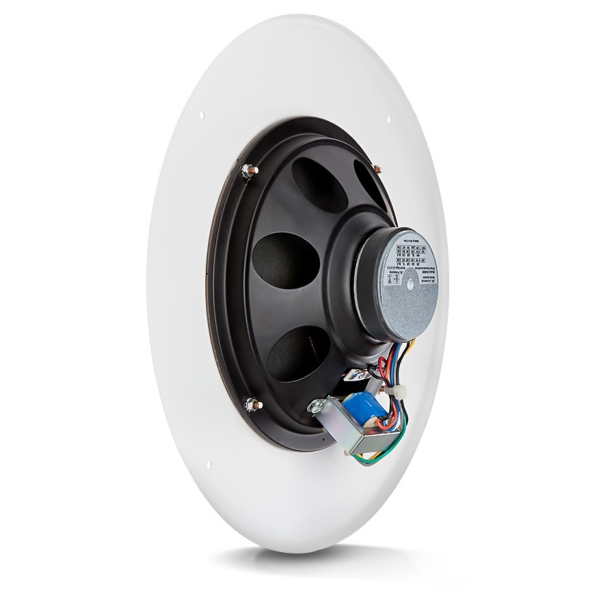

JBL CSS8008 8-Inch Commercial Series Ceiling Speaker (Pack of 4), 15W @ 25V, 70V or 100V Line

Pack of 4 £124.65 (£149.58 Including VAT at 20%)

REF: JP3317

Quantity:

JBL CSS8008 8-Inch Commercial Series Ceiling Speaker (Pack of 4), 15W @ 25V, 70V or 100V Line

The JBL CSS8008 8-Inch Commercial Series Ceiling Speaker provides excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

Click Here for Printer Friendly Version

JBL CSS8008 8-Inch Commercial Series Ceiling Speaker Features

- High 96 dB sensitivity
- 5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
- 120° conical coverage
- Fits CSS-BB8 backcan

JBL CSS8008 8-Inch Commercial Series Ceiling Speaker Specifications

- Drivers: 200 mm (8-inch) Full-Range
- Sensitivity: 96 dB (2k - 6k Hz)
- Frequency Range (-10 dB) Driver/Grille Assembly: 55 Hz - 16 kHz
- Installed in CSS-BB backcan: 100 Hz - 16 kHz
- Coverage Angle: 120° conical
- Driver Continuous Power Handling: 15 Watts
- Transformer Taps:
  - 100V Taps: 5W, 2.5W, 1.3W
  - 70V Taps: 5W, 2.5W, 1.3W, 0.7W
  - 25V Taps: 5W, 2.5W, 1.3W, 0.7W
- Maximum SPL (1m): 103 dB (top 25V/70V/100V tap)
- Transformer Insertion Loss: 1.5 dB Maximum
- Transformer Connection: Bare wire
- Motor Mass: 200 g (7 oz)
- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Matching CSS Backcan: CSS-BB8 (0.15 cu ft)
- Other Compatible Backcans: MTC-81BB8 (0.26 cu ft)MTC-200BB6 (0.5 cu ft)MTC-300BB8 (1.0 cu ft)
- Bolt Mounting Circle to Backcan: 4 points on 286 mm(11.25-inch) diameter
- Cutout DiameterOpen-back: 216 mm (8.5-inch)
- In CSS-BB backcan: 295 mm (11.7in)
- Depth (behind grille): 71 mm (2.8-inch)
- Grille Diameter: 327 mm (12.9-inch)
- Net Weight (each): 1.27 kg (2.8 lb)
- Shipping Weight (ea): 1.94 kg (4.3 lb)
- Power Rating: See transformer taps
- Input Connectors: Bare wire
- Color: White
- Backcan: formed steel (accessory)
- Baffle/Rim: Metal
- Ceiling Cutout Size: 216 mm (8.5-inch)
- Plenum Usage: Yes, with accessory backcan

Further Product Information Below

JBL CSS8008 Data Sheet (PDF)

JBL CSS8008 Installation Instructions (PDF)

JBL CSS8008 8-Inch Commercial Series Ceiling Speaker Supplied With

- 4x JBL CSS8008 ceiling speaker
- 4x M4 40mm screws per speaker
