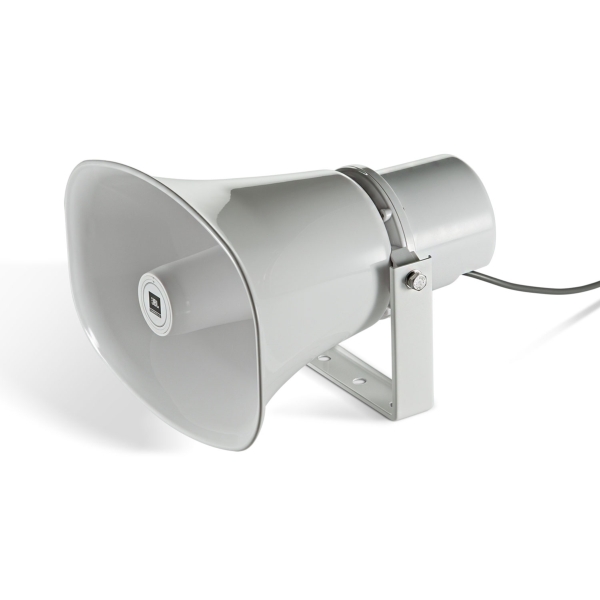

JBL CSS-H15 Weather Resistant Paging Horn, 15W @ 8 Ohms or 70V / 100V Line - IP65

JBL CSS-H15 Weather Resistant Paging Horn Features

- Excellent voice range clarity for announcement and paging
- High sensitivity delivers high sound levels with minimal power amplification
- Wide 70° horizontal by 90° vertical coverage for medium throw applications
- Phenolic diaphragm driver for outdoor durability and high reliability
- UL-registered 15-watt multi-tap transformer, with 8 ohm direct bypass
- Built-in high-pass filter enhances reliability by protecting against low frequency damage
- Highly weather-resistant, with stainless steel bracket and hardware

JBL CSS-H15 Weather Resistant Paging Horn Specifications

- Frequency Range (-10dB): 400 Hz - 7.5 kHz
- Coverage Angle: 70° horizontal by 90° vertical (at 2 kHz and averaged 1 kHz - 4 kHz)
- Included High-Pass Filter: Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range.
- Directivity Factor (Q): 10.9 (2 kHz)
- Directivity Index (DI): 10.4 (2 kHz)
- Power Rating: 15 W (60 W peak), 100 hrs
- Sensitivity (1W, 2.83V@ 1m): 105 dB, ave. 1 kHz - 6 kHz; 111 dB at 2 kHz
- Maximum SPL (1m): 117 dB cont ave. (123 dB peak), 1 kHz - 6 kHz;123 dB cont ave. (129 dB peak), 2 kHz, 15W input,8 ohm setting
- Impedance:
  - 15W/70V, NC/100V tap: 333 ohms
  - 7.5W/70V, 15W/100V tap: 667 ohms
  - 3.8W/70V, 7.5W/100V tap: 1333 ohms
  - 1.9W/70V, 3.8W/100V tap: 2666 ohms
  - 0.9W/100V, 1.9W/100V tap:5332 ohms
  - 8 ohms at 8 ohm direct setting
- Transformer Taps:
  - 70V: 15W, 7.5W, 3.8W, 1.9W. 0.9W
  - 100V: 15W, 7.5W, 3.8W, 1.9W
- Drivers: 33 mm (1.3 in) diameter with phenolic diaphragm
- Horn Material: ABS
- Mounting Hardware: Stainless steel powder-coated U-bracket (yolk) with 3 x 8.8 mm (0.34 in) dia mounting holes, stainless steel exterior hardware.
- Color: RAL9016 (horn and bracket)
- Input Connectors: 300 mm (12 in) pigtail to bare wire; entrance via watertight fitting. Wire colors: red = positive (+); black = negative (-).
- Outdoor Capability: IP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware.
- Safety Agency Ratings: Transformer UL Registered per UL1876 "Isolating Signal and Feedback Transformers for Use in Electronic Equipment"

Physical:
- Dimensions (H x W x D):
  - Horn: 163 x 222 x 232 mm (6.5 x 8.8 x 9.2 in)
  - Horn with Mounting Bracket: 181 x 222 x 232 mm (7.1 x 8.8 x 9.2 in)
- Net Weight (each): 3.0 lb/1.36 kg
- Shipping Weight (ea): 3.7 lb/1.68 kg
