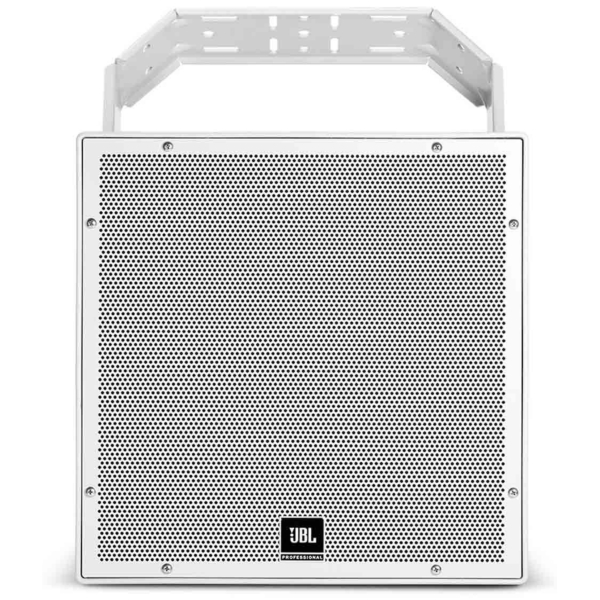

JBL AWC159 15-Inch Coaxial All Weather Compact Speaker, 500W @ 8 Ohms or 70V/100V Line - IP56, Grey

JBL AWC159 12-Inch Coaxial All Weather Compact Speaker Features

- Highly weather-resistant IP56 rating
- Consistent 90° x 90° broadband pattern control
- Components:
  - 380 mm (15 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
  - 38 mm (1.5 in) diaphragm compression driver with patented design and high temperature polymer diaphragm.
- Extraordinary clarity for speech, with extended frequency response for music.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- 500 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
- High-power passive crossover network.
- 52 Hz - 20 kHz frequency response.
- 300 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance

JBL AWC159 12-Inch Coaxial All Weather Compact Speaker Specifications

- Frequency Range (-10 dB): 52 Hz - 20 kHz
- Frequency Response (±3 dB): 80 Hz - 20 kHz
- Coverage Pattern: 90° x 90°
- Directivity Factor: 11.1 (1 kHz - 16 kHz)
- Directivity Index (DI): 9.7 dB (1 kHz - 16 kHz)
- Long-Term System Power Rating (IEC):
  - 500 W (2000 W peak), 2 hrs.
  - 300 W (1200 W peak), 100 hrs
- Sensitivity (2.83V @ 1m): 98 dB (Ave. 80 Hz - 20 kHz)
- Maximum SPL:
  - Direct 8Ω: 125 dB (peaks of 131 dB)
  - 300 W Tap: 123 dB (peaks of 129 dB)
- Crossover Network: 1.5 kHz, 4th order (24 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
- Nominal Impedance: 8 ohms
- Transformer Taps:
  - 70V: 300W, 150W, 75W, 38W
  - 100V: 300W, 150W, 75W
- Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.
- High Frequency Driver: 2408H-2 38 mm (1.5 in) diaphragm and voice coil diameter, patented high-temperature annular polymer diaphragm, copper-clad aluminum coil, fluid-cooled.
- Enclosure: ABS with Glass enclosure, heavily braced
- Attachment: Two M10 (course-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
- Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
- Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with roundjacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
- Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs)
- Height: 486mm
- Width: 486mm
- Depth: 479mm
- Net Weight (each): 15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket

Further Product Information Below

JBL AWC159 Data Sheet (PDF)
