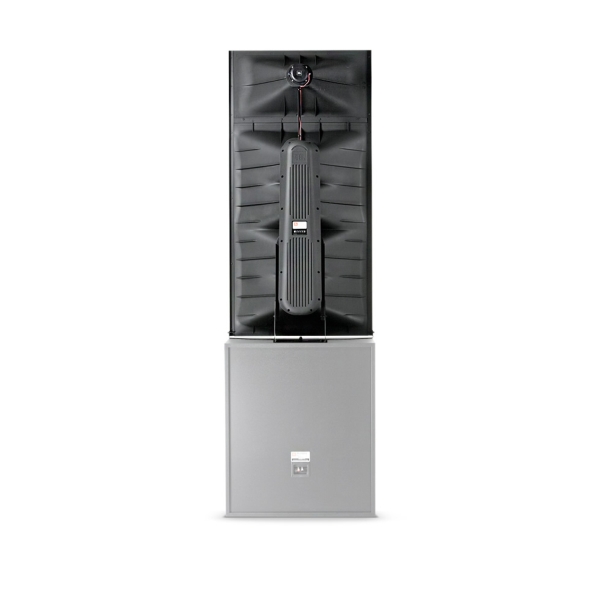

JBL 4732-M/HF-T Mid/HF Section for JBL 4732T Tri-Amplified ScreenArray Loudspeaker

Name: JBL 4732-M/HF-T Mid/HF Section for JBL 4732T Tri-Amplified ScreenArray Loudspeaker
Brand: JBL
SKU: JP100214
Price: 2661.11 GBP
Availability: InStock

Price Each £2,217.59 (£2,661.11 Including VAT at 20%)

REF: JP100214

Quantity:

JBL 4732-M/HF-T Mid/HF Section for JBL 4732T Tri-Amplified ScreenArray Loudspeaker

The JBL 4732-M/HF-T Mid/HF Section for JBL 4732T Tri-Amplified ScreenArray Loudspeaker delivers coverage in every seat of the auditorium, wide dynamic range and extended bandwidth, as well as inaudible levels of distortion. Digital soundtracks, especially those associated with the latest digital cinema requirements, require sound systems that can accurately reproduce the sound exactly as recorded. Designed for high power critical sound reproduction in premier cinemas, studio production and post production applications, the 4732 next-generation ScreenArray features true three-way design enhanced by advanced engineering. JBL's latest technical innovations are integrated into a system design that provides superior coverage, maximum power handling and uniform acoustic power output, along with extremely low distortion. The ScreenArray design provides ideal power response and directivity control with seamless transitions between acoustic sections.

Please Note: The JBL 4732T is comprised of 2 separate parts to make one complete speaker. This listing is for the Mid/High Frequency section. For details on the indevidual components please see:
- Complete speaker: JBL 4732T (JP104358)
- LF component: JBL 4739 (JP3256)
The JBL 4732T is the Tri-Amplified version of the speaker and requires 3 channels of amplification with crossovers for the complete speaker. For the Bi-Amplified version see the JBL 4732 (JP104357).

Click Here for Printer Friendly Version

JBL 4732-M/HF-T Mid/HF Section for JBL 4732T Tri-Amplified ScreenArray Loudspeaker Features

- Three-way ScreenArray design for maximum output, optimal coverage and minimum distortion
- Available for bi-amplified operation (model 4732) or tri-amplified operation (model 4732-T)
- Large format 3 inch neodymium, titanium diaphragm, high frequency compression driver
- Patented Differential Drive 15 inch low frequency woofers for improved power handling and reduced distortion
- Molded Optimized Aperture Waveguide technology for ultra-low distortion and extremely uniform frequency response
- SSC Screen Spreading Compensation
- Focused coverage technology
- Flat front waveguide design for easy baffle wall installation
- Shallow profile for minimum behind-screen depth requirements

JBL 4732-M/HF-T Mid/HF Section for JBL 4732T Tri-Amplified ScreenArray Loudspeaker Specifications

JBL 4732-M/HF Mid/High Frequency Section Specifications
- Mid Frequency Transducers (Ships Fully Assembled): 4 x 165H, 165 mm (6.5 in) diameter, 38 mm (1.5 in) voice coil
- High Frequency Transducer (Ships Fully Assembled): 1 x 2432H, 75 mm (3 in) titanium diaphragm and voice coil diameter, 38 mm (1.5 in) exit diameter
- Input Connectors: Screw terminal barrier strip
- Nominal Impedance:
  - HF: 8 Ω
  - MF: 4 Ω
- Minimum Impedance: 3.5 Ω @ 300 Hz
- Free-Field Sensitivity: 107 dB SPL, 2.83V @ 1 m (3.3 ft)
- Input Power Handling (AES 100-Hour Rating):
  - HF: 200 W
  - MF: 200W
- Recommended Amplifier:
  - HF: 400 W
  - MF: 400W
- Dimensions (H x W x D): 1544 mm x 762 mm x 450 mm (60.8 in x 30 in x 17.75 in)
- Net Weight 35.4 kg (78 lb)
- Shipping Weight 47.7 kg (105 lb)

Complete JBL 4732 Specifications
- Frequency Range: 30 Hz - 20 kHz
- Frequency Response: (±3 dB) 40 Hz - 19 kHz
- Horizontal Coverage Angle: (-6 dB) 90°
- Vertical Coverage Angle: (-6 dB) 20° up, 30° down
- Rated Maximum SPL: 130 dB @ 1m (3.3 ft), 136 dB peak
- Crossover Frequencies: 250 Hz, 1.2 kHz
- Net Weight: 84.4 kg (186 lb)
- Shipping Weight: 103.5 kg (228 lb)
- Dimensions: (H x W x D) 2427 mm x 762 mm x 450 mm (95.6 in x 30 in x 17.75 in)

JBL 4739 Low Frequency Section Specifications
- Low Frequency Transducers: 2 x 265H-2, 380mm (15 in dia.)
- Transducers: Differential Drive edgewood ribbon voice coil
- Nominal Impedance: 4 Ω
- Input Power Handling: 800 W
- Recommended Amplifier: 1200 W
- Free-Field Sensitivity: 104 dB, 2.83V @ 1m (3.3 ft)
- Dimensions (H x W x D): 883 mm x 762 mm x 450 mm (34.75 in x 30 in x 17.75 in)
- Net Weight: 48.6 kg (107 lb)
- Shipping Weight: 55.4 kg (122 lb)

Further Product Information Below

JBL 4732-M/HF-T Data Sheet (PDF)
