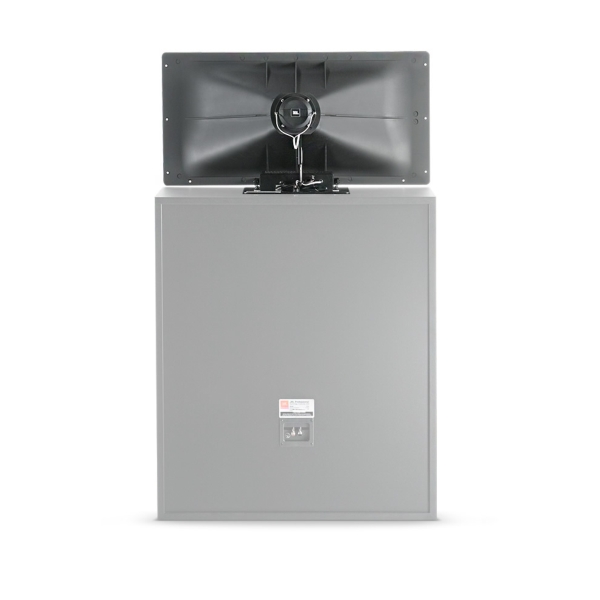

JBL 4722N-HF High Frequency Section for JBL 4722N Passive ScreenArray Cinema Loudspeaker

Price Each £657.02 (£788.42 Including VAT at 20%)

REF: JP3259

Quantity:

JBL 4722N-HF High Frequency Section for JBL 4722N Passive ScreenArray Cinema Loudspeaker

The JBL 4722N-HF High Frequency Section for JBL 4722N Passive ScreenArray Cinema Loudspeaker delivers JBL quality and ScreenArray performance in a two-way system. The new "next-generation" Two-Way ScreenArray speaker systems are now available. The Two-Way ScreenArray Systems provide smooth and accurate reproduction of cinema soundtracks while being compact and very cost-effective. Measuring less than 18 inches deep, each system features screen spreading compenstation and the latest advanced JBL technology. All models offer the low-distortion ScreenArray horn for clear, accurate reproduction of the mid and high frequencies.
The 4722N provides smooth and accurate reproduction of cinema soundtracks in a compact and very cost effective system.

Please Note: The JBL 4722N is comprised of 2 separate parts to make one complete speaker. This listing is for the High Frequency Section only. For further details please see:
- Complete JBL 4722N System: JBL 4722N (JP104349)
- LF component: JBL 4739 (JP3256)
The JBL 4722N-HF is the Passive version of the HF component and requires 1 channel of amplification for the complete speaker. For the Bi-Amplified version see the JBL 4722-HF (JP104348).

Click Here for Printer Friendly Version

JBL 4722N-HF High Frequency Section for JBL 4722N Passive ScreenArray Cinema Loudspeaker Features

- Two-way ScreenArray design for maximum output, optimal coverage and minimum distortion
- Available for bi-amplified operation (model 4722) or fully passive operation (model 4722N)
- Large format 3 inch neodymium, titanium diaphragm, high frequency compression driver
- Patented Differential Drive 15 inch low frequency woofers for improved power handling and reduced distortion
- SSC Screen Spreading Compensation
- Molded Optimized Aperture Waveguide technology for ultra-low distortion and extremely uniform frequency response
- Flat front waveguide design for easy baffle wall installation
- Shallow profile for minimum behind-screen depth requirements

JBL 4722N-HF High Frequency Section for JBL 4722N Passive ScreenArray Cinema Loudspeaker Specifications

JBL 4722N-HF High Frequency Section Specifications
- Components:
  - 1x 2432H compression driver
  - 1x 2384 horn flare
  - 1x adjustable bracket
- Net Weight: 7.3 kg (16 lbs)
- Shipping Weight: 12.7 kg (28 lbs)

Complete JBL 4722N Specifications
- Frequency Range: 30Hz to 20kHz
- Frequency Response: 40 Hz - 19 kHz (±3 dB)
- Sensitivity: 104dB, 2.83V @ 1m (3.3ft)
- Nominal Impedance: 4Ω
- Rated Maximum SPL: 130dB, @ 1m (3.3ft) 136 dB peak
- Crossover Frequency: 800Hz
- Dimensions (H x W x D): 1265 x 762 x 450 mm (49.9 x 30 x 17.75 inches)
- Net Weight: 55.8 kg (123 lbs)
- Shipping Weight: 65.4 kg (144 lbs)

JBL 4739 Low Frequency Section Specifications
- Drivers: 2 x 26SH-1 380 mm (15 in) Ø
- Transducers: 76 mm (3 in) Edgewound Ribbonvoice Coil
- Net Weight: 48.6 kg (107 lbs)
- Shipping Weight: 55.4 kg (122 lbs)

Further Product Information Below

JBL 4722N-HF Data Sheet (PDF)
