JBL 3733-M/HF Mid/HF Section for JBL 3733 Bi-Amplified ScreenArray Loudspeaker

JBL 3733-M/HF Mid/HF Section for JBL 3733 Bi-Amplified ScreenArray Loudspeaker Features

- Three-way ScreenArray design for maximum output, optimal coverage and minimum distortion
- Dual Dissimilar Arraying technology to improve high frequency coverage in rooms with raked seating
- JBL 2415-XP next-generation high frequency compression driver
- Advanced waveguide design for improved frequency response and higher output with lower distortion
- Used in conjunction with CRF2 reflector horns, which are used to reflect high frequency content off a solid screen
- Includes the same HF driver as the CRF2 to maintain tonal quality
- Supports bi-amp configuration only

JBL 3733-M/HF Mid/HF Section for JBL 3733 Bi-Amplified ScreenArray Loudspeaker Specifications

JBL 3733-M/HF High Frequency Section Specifications
- Mid Frequency Transducers: 2 x 165H, 165 mm (6.5 in) diameter, 38mm (1.5 in) voice coil
- High Frequency Transducers: 2 x 2415-XP, Dual Dissimilar Arraying configuration
- Nominal Impedance: 12 Ω
- Minimum Impedance: 10.2 Ω @ 12 kHz
- Free-Field Sensitivity: 104 dB, 2.83 V @ 1m (3.3 ft)
- Input Power Handling (AES 100-Hour Rating): 150 W (39.1 V)
- Input Power Handling (AES 2-Hour Rating): 200 W (45.2 V)
- Dimensions (H x W x D): 1000 mm x 762 mm x 450 mm (39.37 in x 30 in x 17.75 in)
- Net Weight: 23.2 kg (51 lb)
- Shipping Weight: 31.3 kg (69 lb)

Complete JBL 3733 Specifications
- Frequency Response: (-3 dB) 40Hz - 19kHz
- System Input Power Handling
  - M/HF: 300 W
  - LF: 800 W
- Horizontal Coverage Angle: (-6dB) 100°
- Vertical Coverage Angle: (-6dB) Asymetrical with Dual Dissimilar Arraying
- Net Weight: 71.8 kg (158 lb)
- Shipping Weight: 86.7 kg (191 lb)
- Dimension (H x W x D): 1000 mm x 1648 mm x 450 mm (39.37 in x 64.88 in x 17.75 in)

JBL 4739 Low Frequency Section Specifications
- Low Frequency Transducers: 2 x 265H-2, 380mm (15 in dia.)
- Transducers: Differential Drive edgewood ribbon voice coil
- Nominal Impedance: 4 Ω
- Input Power Handling: 800 W
- Recommended Amplifier: 1200 W
- Free-Field Sensitivity: 104 dB, 2.83V @ 1m (3.3 ft)
- Dimensions (H x W x D): 883 mm x 762 mm x 450 mm (34.75 in x 30 in x 17.75 in)
- Net Weight: 48.6 kg (107 lb)
- Shipping Weight: 55.4 kg (122 lb)

Further Product Information Below

JBL 3733-M/HF Data Sheet (PDF)

JBL 3733-M/HF CAD Drawing (PDF)

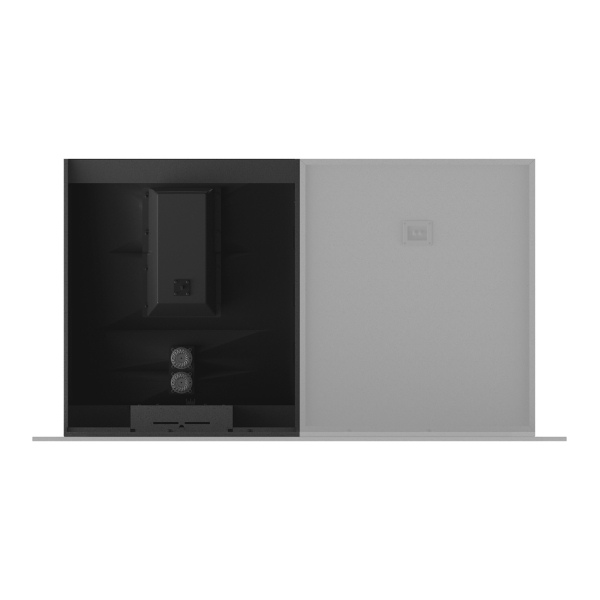

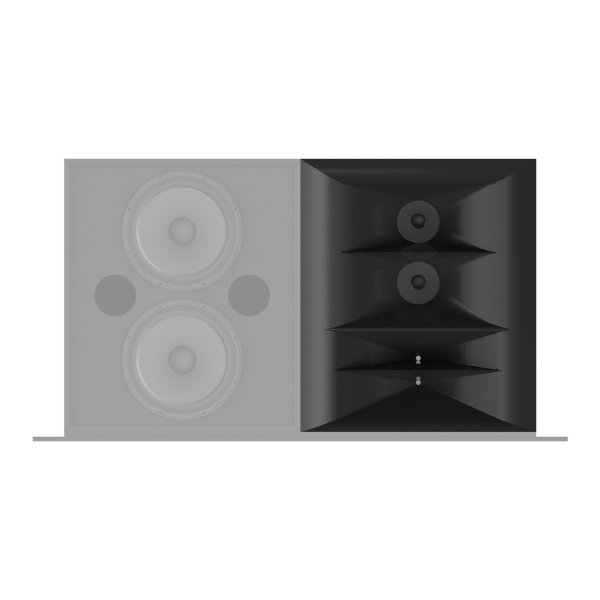

Please Note: The JBL 3733 is comprised of 2 separate parts to make one complete speaker. This listing is for the Mid/High Frequency section. For details on Low Frequency component please see:
- JBL 4739 (JP3256)
The JBL 3733 is Bi-Amplified and requires 2 channels of amplification with a crossover for the complete speaker.
