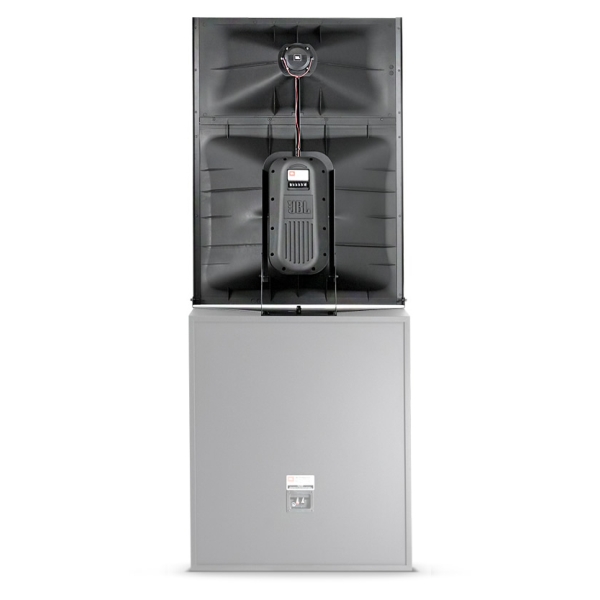

JBL 3732-M/HF Mid/HF Section for JBL 3732 Three-Way Bi-Amplified ScreenArray Loudspeaker

JBL 3732-M/HF Mid/HF Section for JBL 3732 Three-Way Bi-Amplified ScreenArray Loudspeaker Features

- Three-way ScreenArray design for maximum output, optimal coverage and minimum distortion
- Bi-amplified or fully passive switchable operation (tri-amp option available)
- SSC Screen Spreading Compensation
- Molded Optimized Aperture Waveguide technology for ultra-low distortion and extremely uniform frequency response
- Low-frequency section features dual 15 inch transducers with ribbon wire voice coils for low distortion and high efficiency
- Flat front waveguide design for easy baffle wall installation
- Shallow profile for minimum behind-screen depth requirements

JBL 3732-M/HF Mid/HF Section for JBL 3732 Three-Way Bi-Amplified ScreenArray Loudspeaker Specifications

JBL 3732-M/HF High Frequency Section Specifications
- Mid Frequency Transducers (Ships Fully Assembled): 2 x 165H, 165 mm (6.5 in) diameter, 38 mm (1.5 in) voice coil
- High Frequency Transducer (Ships Fully Assembled): 1 x 2432H, 75 mm (3 in) titanium diaphragm and voice coil diameter, 38 mm (1.5 in) exit diameter
- Input Connectors: Screw terminal barrier strip
- Nominal Impedance:
  - M/HF: 8 Ω
  - MF: 12 Ω
  - HF: 8 Ω
- Minimum Impedance: 6.1 Ω @ 11 kHz
- Free-Field Sensitivity:
  - M/HF: 103 dB SPL, 2.83 V @ 1 m (3.3 ft)
  - MF: 107 dB SPL, 2.83 V @ 1 m (3.3 ft)
  - HF: 115 dB SPL, 2.83 V @ 1 m (3.3 ft)
- Input Power Handling (AES 100-Hour Rating):
  - M/HF: 150 W, 300 W recommended amplifier
  - MF: 150 W, 300 W recommended amplifier
  - HF: 85 W, 200 W recommended amplifier
- Dimensions: (H x W x D) 1054 mm x 762 mm x 450 mm (41.5 in x 30 in x 17.75 in)
- Net Weight: 23.2 kg (51 lbs)
- Shipping Weight: 31.3 kg (69 lbs)

Complete JBL 3732 Specifications
- Frequency Range: 30 Hz - 20 kHz
- Frequency Response: (±3 dB) 40 Hz - 19 kHz
- Horizontal Coverage Angle: (-6 dB) 90°
- Vertical Coverage Angle: (-6 dB) 20° up, 30° down
- Crossover Frequencies: 350 Hz
- Rated Maximum SPL: 125 dB @ 1m (3.3 ft), 131 dB peak
- Net Weight: 77.9 kg (172 lbs)
- Shipping Weight: 92.8 kg (205 lbs)
- Dimensions: (H x W x D) 1937 mm x 762 mm x 450 mm (76.3 in x 30 in x 17.75 in)

JBL 3739 Low Frequency Section Specifications
- Drivers: 2x M115H-8A, 380 mm (15 in) Ø
- Transducers: 61 mm (2.5 in) Edgewound Ribbon Voice Coil
- Input Connectors: Push terminal binding posts
- Nominal Impedance: 4 Ω
- Minimum Impedance: 2.7 Ω @ 150 Hz
- Input Power Handling (AES 2-Hour Rating): 500 W
- Recommended Amplifier: 600 W
- Free-Field Sensitivity: 104 dB SPL, 2.83V @ 1 m (3.3 ft)
- Net Weight: 54.9 kg (121 lbs)
- Shipping Weight: 63.6 kg (140 lbs)

Further Product Information Below

JBL 3732-M/HF Data Sheet (PDF)

Please Note: The JBL 3732 is comprised of 2 separate parts to make one complete speaker. This listing is for the Mid/High Frequency section. For details on the indevidual components please see:
- Complete System: JBL 3732 (JP104355)
- LF component: JBL 3739 (JP3209)
The JBL 3732 is the Bi-Amplified version of the speaker and requires 2 channels of amplification with a crossover for the complete speaker. For the Tri-Amplified version see the JBL 3732T (JP104356).
