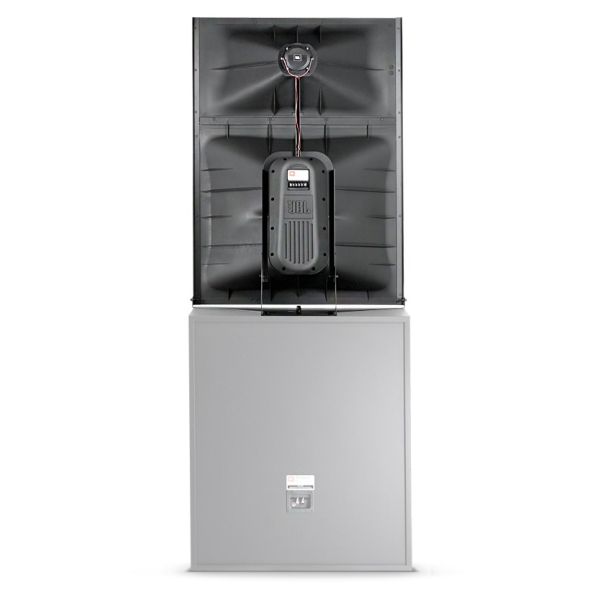

JBL 3732-M/HF-T Mid/HF Section for JBL 3732T Tri-Amplified ScreenArray Loudspeaker

Name: JBL 3732-M/HF-T Mid/HF Section for JBL 3732T Tri-Amplified ScreenArray Loudspeaker
Brand: JBL
SKU: JP100213
Price: 2089.73 GBP
Availability: InStock

Price Each £1,741.44 (£2,089.73 Including VAT at 20%)

REF: JP100213

Quantity:

JBL 3732-M/HF-T Mid/HF Section for JBL 3732T Tri-Amplified ScreenArray Loudspeaker

The JBL 3732-M/HF-T Mid/HF Section for JBL 3732T Tri-Amplified ScreenArray Loudspeaker promises perfect coverage in every seat of the auditorium, wide dynamic range and extended bandwidth, as well as inaudible levels of distortion. Digital soundtracks, especially those associated with the latest digital cinema requirements, require sound systems that can accurately reproduce the sound exactly as recorded. The 3732 ScreenArray Cinema Loudspeaer System features true three-way design enhanced by advanced engineering. JBL's latest technical innovations are integrated into a system design that provides superior coverage, maximum power handling and uniform acoustic power output, along with extremely low distortion. The ScreenArray design provides ideal power response and directivity control with seamless transitions between acoustic sections.

Please Note: The JBL 3732T is comprised of 2 separate parts to make one complete speaker. This listing is for the Mid/HF Section. For details on the indevidual components please see:
- Complete Speaker: JBL 3732T (JP104356)
- LF component: JBL 3739 (JP3209)
The JBL 3732T is the Tri-Amplified version of the speaker and requires 3 channels of amplification with crossovers for the complete speaker. For the Bi-Amplified version see the JBL 3732 (JP104355).

Click Here for Printer Friendly Version

JBL 3732-M/HF-T Mid/HF Section for JBL 3732T Tri-Amplified ScreenArray Loudspeaker Features

- Three-way ScreenArray design for maximum output, optimal coverage and minimum distortion
- Bi-amplified or fully passive switchable operation (tri-amp option available)
- SSC Screen Spreading Compensation
- Molded Optimized Aperture Waveguide technology for ultra-low distortion and extremely uniform frequency response
- Low-frequency section features dual 15 inch transducers with ribbon wire voice coils for low distortion and high efficiency
- Flat front waveguide design for easy baffle wall installation
- Shallow profile for minimum behind-screen depth requirements

JBL 3732-M/HF-T Mid/HF Section for JBL 3732T Tri-Amplified ScreenArray Loudspeaker Specifications

JBL 3732-M/HF High Frequency Section Specifications
- Mid Frequency Transducers (Ships Fully Assembled): 2 x 165H, 165 mm (6.5 in) diameter, 38 mm (1.5 in) voice coil
- High Frequency Transducer (Ships Fully Assembled): 1 x 2432H, 75 mm (3 in) titanium diaphragm and voice coil diameter, 38 mm (1.5 in) exit diameter
- Input Connectors: Screw terminal barrier strip
- Nominal Impedance:
  - MF: 12 Ω
  - HF: 8 Ω
- Minimum Impedance: 6.1 Ω @ 11 kHz
- Free-Field Sensitivity:
  - MF: 107 dB SPL, 2.83 V @ 1 m (3.3 ft)
  - HF: 115 dB SPL, 2.83 V @ 1 m (3.3 ft)
- Input Power Handling (AES 100-Hour Rating):
  - MF: 150 W, 300 W recommended amplifier
  - HF: 85 W, 200 W recommended amplifier
- Dimensions: (H x W x D) 1054 mm x 762 mm x 450 mm (41.5 in x 30 in x 17.75 in)
- Net Weight: 23.2 kg (51 lbs)
- Shipping Weight: 31.3 kg (69 lbs)

Complete JBL 3732 Specifications
- Frequency Range: 30 Hz - 20 kHz
- Frequency Response: (±3 dB) 40 Hz - 19 kHz
- Horizontal Coverage Angle: (-6 dB) 90°
- Vertical Coverage Angle: (-6 dB) 20° up, 30° down
- Crossover Frequencies: 350 Hz, 1.2kHz
- Rated Maximum SPL: 125 dB @ 1m (3.3 ft), 131 dB peak
- Net Weight: 77.9 kg (172 lbs)
- Shipping Weight: 92.8 kg (205 lbs)
- Dimensions: (H x W x D) 1937 mm x 762 mm x 450 mm (76.3 in x 30 in x 17.75 in)

JBL 3739 Low Frequency Section Specifications
- Drivers: 2x M115H-8A, 380 mm (15 in) Ø
- Transducers: 61 mm (2.5 in) Edgewound Ribbon Voice Coil
- Input Connectors: Push terminal binding posts
- Nominal Impedance: 4 Ω
- Minimum Impedance: 2.7 Ω @ 150 Hz
- Input Power Handling (AES 2-Hour Rating): 500 W
- Recommended Amplifier: 600 W
- Free-Field Sensitivity: 104 dB SPL, 2.83V @ 1 m (3.3 ft)
- Net Weight: 54.9 kg (121 lbs)
- Shipping Weight: 63.6 kg (140 lbs)

Further Product Information Below

JBL 3732-M/HF-T Data Sheet (PDF)
