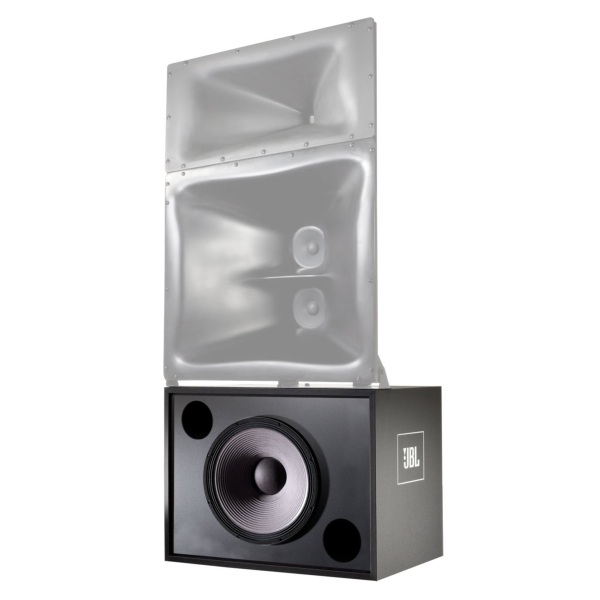

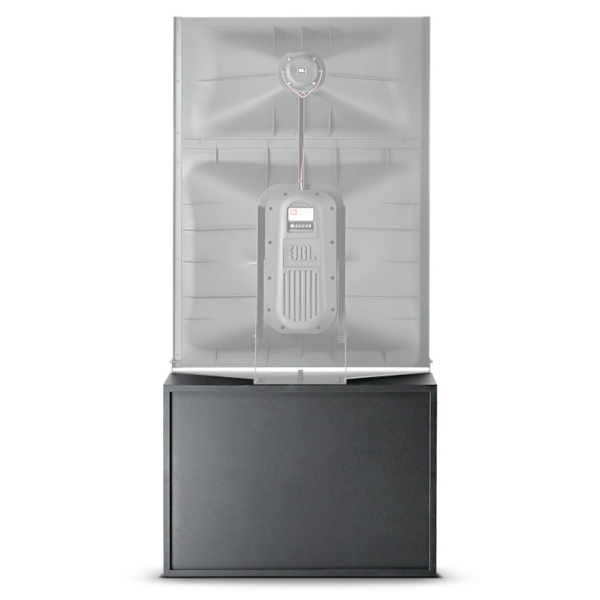

JBL Low Frequency Section for JBL 3732 Three-Way Triamplified (T) ScreenArray Loudspeaker System

JBL Low Frequency Section for JBL 3732 Three-Way Triamplified (T) ScreenArray Loudspeaker System Features

- Three-way Screen Array design for maximum output, optimal coverage, and minimum distortion
- One 380 mm (15-inch) Vented Gap Cooled (VGC) LF Transducer
- Triamplified (T) or Biamplified operation
- Approved for THX certified applications (3731T)
- M/HF ships fully assembled
- Second Generation Optimized Aperture Waveguide technology for ultra-low distortion, and extremely uniform frequency response
- SSCTM Screen Spreading Compensation
- Focused Coverage Technology
- Flat-front waveguide design for easy baffle wall installation
- Shallow depth for minimum behind screen requirements
- Low profile design with 600W LF

JBL Low Frequency Section for JBL 3732 Three-Way Triamplified (T) ScreenArray Loudspeaker System Specifications

- Frequency Response (±3 dB): 40 Hz - 19 kHz
- Frequency Range (-10dB): 30 Hz - 20 kHz
- Sensitivity: 103dB @ 2.83V
- Maximum SPL (1m): 125 dB @ 1m (3.3 ft), 131 dB peak
- System Input Power Rating: LF: 600 watts, M/HF: 150 watts [HF: 85 watts]
- Horizontal Coverage Angle (-6dB): 90°
- Vertical Coverage Angle (-6dB): 20° up, 30° down
- Directivity Factor (Q): 10.0
- Directivity Index (DI): 10 dB
- Crossover Frequencies: 350 Hz [1.2 kHz]
- Dimensions (H x W x D): 1600 mm x 762 mm x 450 mm (63 in x 30 in x 17.75 in)
- Net Weight (each): 114 lbs (51.8 kg)
- Shipping Weight: 64.0 kg (141 lbs)
- Nominal Impedance: 8Ω
- Power Handling (2Hr AES Rating): 600W

Further Product Information Below

JBL 3731 Data Sheet (PDF)

Please Note: The JBL 3731 is comprised of 2 separate parts to make one complete speaker. This listing is for the Low Frequncy section. For details on the indevidual components please see:
- Mid/HF Component: JBL 3732-M/HF - Bi-Amplified (JP100212)
- Mid/HF component: JBL 3732-M/HF-T - Tri-Amplified (JP100213)
