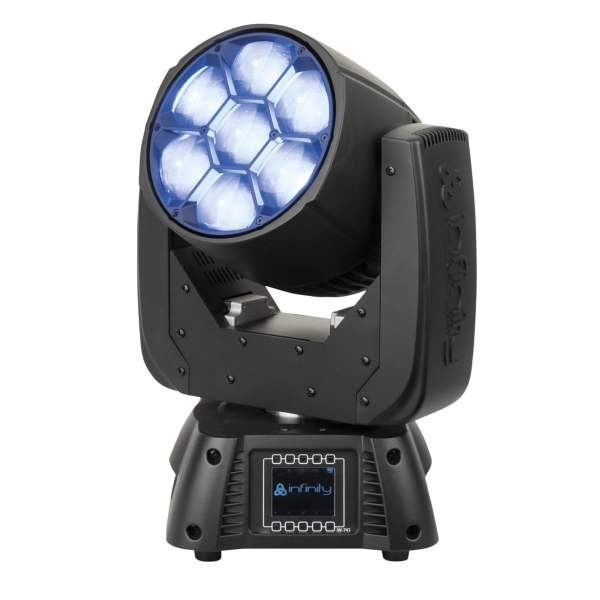

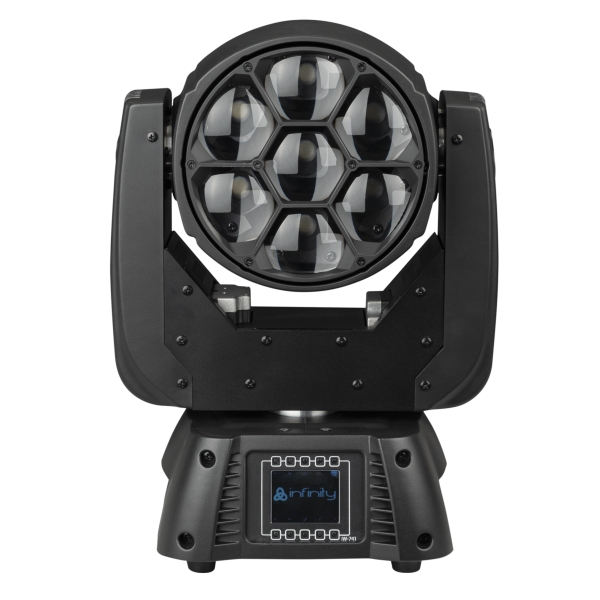

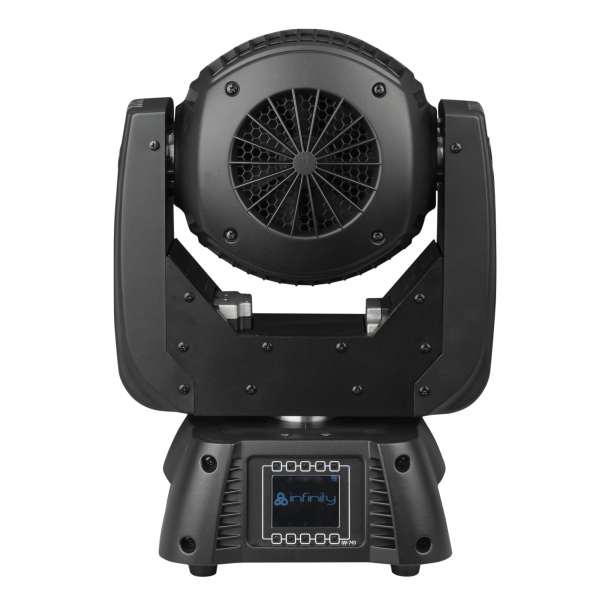

Infinity iW-741 RDM RGBW LED Wash Moving Head, 7x 40W

Price Each £913.13 (£1,095.76 Including VAT at 20%)

REF: JP108961

Quantity:

Infinity iW-741 RDM RGBW LED Wash Moving Head, 7x 40W

The Infinity iW-741 RDM RGBW LED Wash Moving Head is a compact power-pack, equipped with 7 RGBW 40 W Osram LEDs. Specially selected motors provide ultrafast and precise movements, and the silent fan ensures quiet operation. In combination with the motorised zoom a razor sharp 3.6° beam can be produced which changes into a 60° wash effect through various available controlling protocols. The seven O-Star LEDs produce very bright and saturated colours and by changing the PWM through DMX the iW-741 is very well suited for theatre or television applications.

Click Here for Printer Friendly Version

Infinity iW-741 RDM RGBW LED Wash Moving Head Features

- Ultrafast movements and zoom 3.6° to 60°
- Selectable PWM rate by DMX
- Silent fan
- White Output Mode
- Battery powered display

Infinity iW-741 RDM RGBW LED Wash Moving Head Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 7
- Light Source Power: 40 W
- LED Colour Type: RGBW
- Refresh Rate: 6000 Hz
- Refresh Rate (Max.): 15 kHz
- Luminous Flux:
  - Total: 3208 lm
  - Red: 802 lm
  - Green: 1305 lm
  - Blue: 461 lm
  - White: 1813 lm
- CRI: 78

Optical:
- Beam Angle Minimum (Circular): 3.6 °
- Beam Angle Max. (Circular): 60 °
- Zoom Minimum: 3.6 °
- Zoom Maximum: 60 °

Control and Programming:
- Control Mode: Auto, DMX, Master Slave
- DMX Channels: 15, 20
- Protocols: DMX, RDM
- Wireless: Optional
- Display: LCD
- Fan mode: Yes
- Dim Curve: Linear, Square, I-Square, S-Curve
- Dimmer Resolution: 16 bit
- Zoom Resolution: 16 bit

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz

Movement:
- Pan: 540 °
- Tilt: 270 °
- Pan/Tilt Resolution: 16-bit

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 295 W
- Fuse: 5 A
- Power Connector In: PowerCON Blue
- Power Connector Out: PowerCON Grey
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- Dimensions (W x H x D): 204 x 418 x 290 mm
- Weight: 9.36 kg
- IP Rating: IP20 (indoor use only)
- Housing: Metal, Plastic
- Colour: Black

Product Properties:
- Cooling: Axial fan

Rigging:
- Mounting Options: Quick-Lock
- Safety Attachment: Yes

Thermal Specifications:
- Maximum Ambient Temperature: 45 °C
- Maximum Surface Temperature: 80 °C

Further Product Information Below

Infinity iW-741 RDM RGBW Wash Manual (PDF)

Infinity iW-741 RDM RGBW LED Wash Moving Head Supplied With

- PowerCON cable
- Quick-Lock Bracket
