Infinity iFX-640 RGBW LED Effect Moving Head, 6x 40W

Price Each £1,075.02 (£1,290.02 Including VAT at 20%)

REF: JP108998

Quantity:

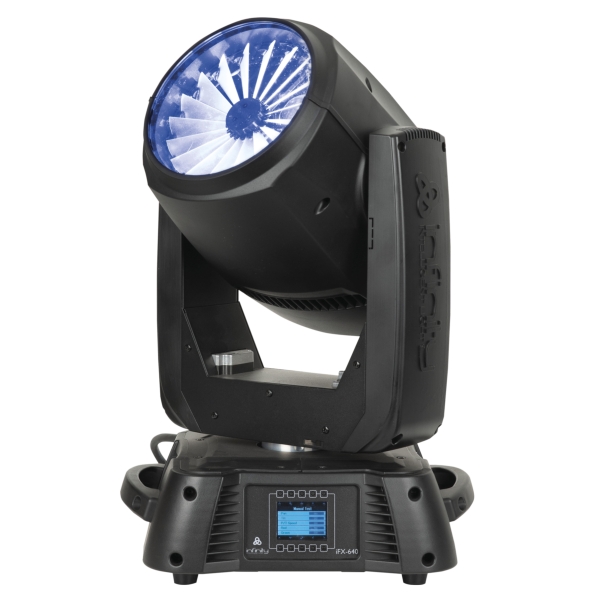

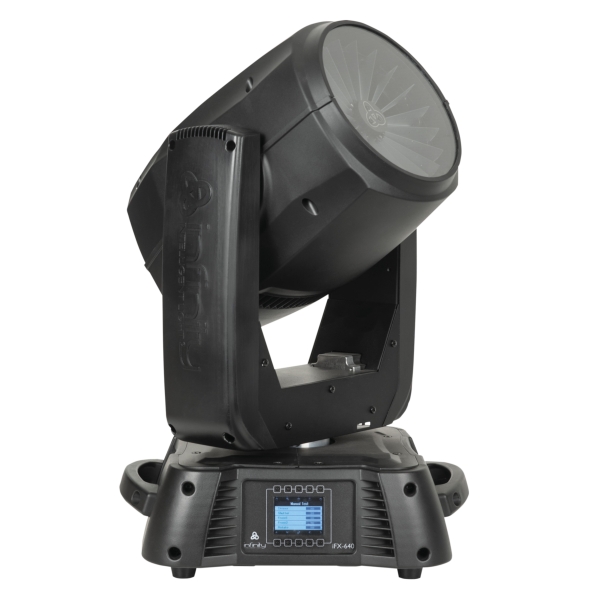

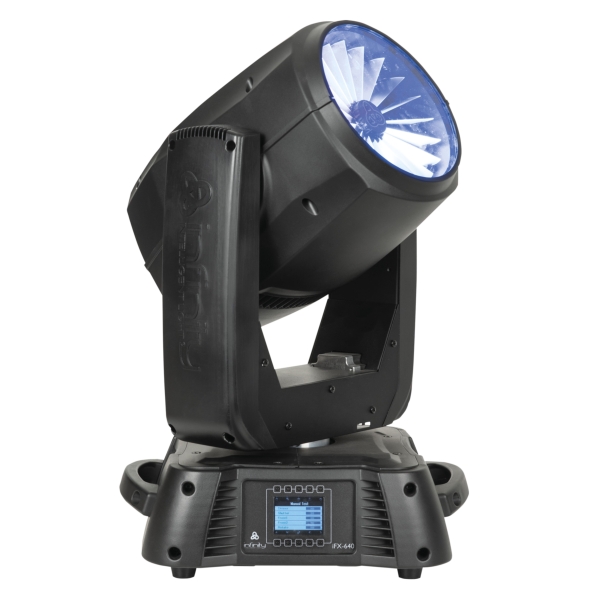

Infinity iFX-640 RGBW LED Effect Moving Head, 6x 40W

The Infinity iFX-640 RGBW LED Effect Moving Head with Individual Pixel Control. This creative eye-candy lighting fixture is perfectly fit to create stunning effects with its 4 dimmer curves, an endlessly rotatable, bi-directional front lens to create prism beam effects, a diffraction filter that creates flower effects, beam diffusion blades for making a nice wash, and a strobe function.
With the iFX-640 you can create nice colours, from punchy saturates to smooth pastels and whites. It's also possible to seamlessly transition from a narrow 5° beam to a wide 36° wash thanks to its motorised zoom. Furthermore, you can control the angle of the beam diffusion blades on a continuous scale. This allows you to create a frost effect that is precisely tailored to your scene. Controlling this fixture can be done manually and via DMX in either Manual and Auto-Run mode.

Click Here for Printer Friendly Version

Infinity iFX-640 RGBW LED Effect Moving Head Features

- 6x O-star RGBW LED Moving Head
- Endlessly rotatable, bi-directional front lens (prism effect)
- Beam diffusion blades with frost effect
- Individual Pixel Control (6 sections)
- Flower effect

Infinity iFX-640 RGBW LED Effect Moving Head Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 6
- Light Source Power: 40 W
- LED Colour Type: RGBW
- Life Expectancy: 20000 h
- Refresh Rate (Max.): 15 kHz
- Luminous Flux (Total): 1800 lm
- CRI: 80

Optical:
- Beam Angle Minimum (Circular): 5 °
- Beam Angle Max. (Circular): 36 °
- Zoom Type: Motorised
- Zoom Ratio: 1:7
- Frost: Yes

Control and Programming:
- Control Mode: Auto, DMX, Manual
- DMX Channels: 24
- Protocols: DMX, RDM
- Wireless: Optional
- Display: Battery, Gravity Sensor, LCD
- Fan mode: Yes
- Dim Curve: Linear, Square, I-Square, S-Curve
- Zone Control (Sections): 6
- Dimmer Resolution: 16 bit
- Zoom Resolution: 8 bit
- Frost Resolution: 8 bit

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz
- Prism 1: Circular

Movement:
- Pan: 540 °
- Tilt: 270 °
- Pan/Tilt Resolution: 16-bit
- Continuous Movement: Rotating Optics

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 360 W
- Power Connector In: PowerCON Blue
- Power Connector Out: PowerCON Grey
- DMX Connector: XLR 5P In/Out
- DMX Connector In: XLR 3P, XLR 5P
- DMX Connector Out: XLR 3P, XLR 5P

Mechanical Specifications:
- Dimensions (W x H x D): 364 x 540 x 304 mm
- Weight: 14.3 kg
- IP Rating: IP20 (indoor use only)
- Housing: Metal, Plastic
- Colour: Black

Product Properties:
- Cooling: Active

Rigging:
- Mounting Options: Quick-Lock
- Safety Attachment: Yes
- Safety Eyes: 1

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Minimum Operating Temperature: -5 °C

Further Product Information Below

Infinity iFX-640 Effect Manual (PDF)

Infinity iFX-640 RGBW LED Effect Moving Head Supplied With

- PowerCON cable
- Quick-Lock Bracket
