Infinity TS-300 WW LED Profile Engine, 3200K (Light Engine Only)

Name: Infinity TS-300 WW LED Profile Engine, 3200K (Light Engine Only)
Brand: Infinity
Price: 989.17 GBP
Availability: InStock

Price Each £824.31 (£989.17 Including VAT at 20%)

REF: JP109022

Quantity:

Infinity TS-300 WW LED Profile Engine, 3200K (Light Engine Only)

The Infinity TS-300 WW LED Profile Engine is built around a powerful, reliable 300 W Lumiled LED engine with a colour temperature of 3200 K or 5700 K and a high, consistent CRI of more than 95, it will match conventional 750 W Tungsten fixtures perfectly. Various calibration systems inside the intelligent, intuitive software make sure that the TS-300 will fit in seamlessly in Tungsten setups. Very well equipped for theatre or TV-applications where a steady output, high quality of light and silent fan operation are not only required but actual necessities. The Infinity Signature TS-300 has the complete package.

Click Here for Printer Friendly Version

Infinity TS-300 WW LED Profile Engine Features

- Delivers the performance of 750 W Tungsten halogen unit
- 300 W, 3200 K Custom designed Lumiled Engine
- Consistent CRI > 96
- Consistent colour temperature regardless of intensity
- 16-bit intelligent high resolution virtual dimming

Infinity TS-300 WW LED Profile Engine Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 300 W
- LED Colour Type: WW
- Life Expectancy: 30000 h
- Refresh Rate (Max.): 1 kHz
- Luminous Flux (Total): 8300 lm
- CRI: 96
- Maximum CCT: 3200 K

Control and Programming:
- Control Mode: DMX, Manual
- DMX Channels: 1, 2, 4
- Protocols: DMX, RDM
- Display: LCD
- Fan mode: Yes
- Dim Curve: Linear, Square, S-Curve
- Dimmer Resolution: 16 bit

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 300 W

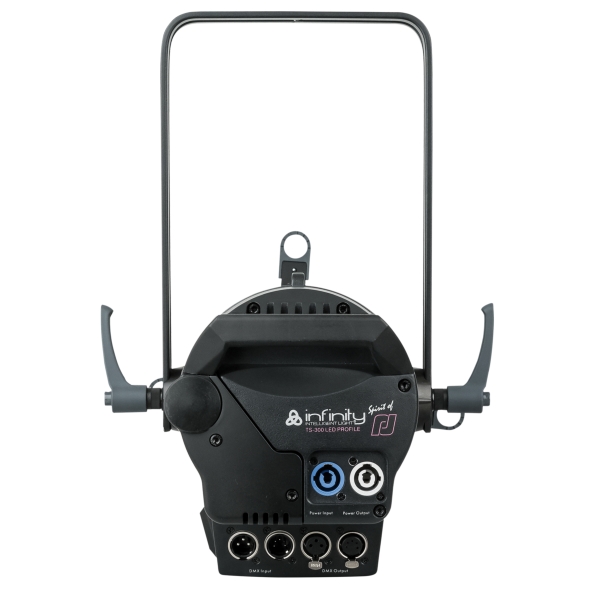

- Power Connector In: PowerCON Blue
- Power Connector Out: PowerCON Grey
- DMX Connector: XLR 3P In/Out, XLR 5P In/Out
- DMX Connector In: XLR 3P, XLR 5P
- DMX Connector Out: XLR 3P, XLR 5P

Mechanical Specifications:
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black
- Dimensions (W x H x D): 323 x 457 x 468 mm
- Weight: 8.4 kg

Product Properties:
- Cooling: Axial fan

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Maximum Surface Temperature: 45 °C
- Minimum Operating Temperature: -10 °C

Further Product Information Below

Infinity TS-300 3200K Manual (PDF)

Infinity Signature Series Brochure (PDF)

Infinity TS-300 WW LED Profile Engine Supplied With

- PowerCON cable
- Gobo Holder
