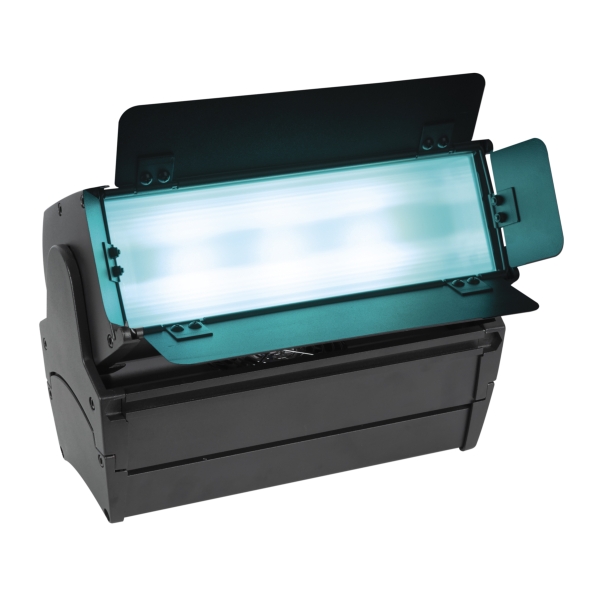

Infinity TFLD-7 150W RGBCALDB LED Flood

Name: Infinity TFLD-7 150W RGBCALDB LED Flood
Brand: Infinity
Price: 812.7 GBP
Availability: InStock

Price Each £677.25 (£812.70 Including VAT at 20%)

REF: JP109048

Quantity:

Infinity TFLD-7 150W RGBCALDB LED Flood

The Infinity TFLD-7 150W RGBCALDB LED Flood combines a compact, lightweight and versatile design with the already known custom designed 7 colour LED array and intelligent software to create the most sophisticated little floodlight possible. This custom 7 colour array will put out a white with consistently higher CRI value above 96 over the entire CCT range, and easily creates your specials with the built-in virtual scroller with 64 theatrical colours.
The calibration ensures a perfect blend of light throughout your theatre, stage or studio. Equipped with 7 different DMX modes, this luminaire is fully compatible with all the TS-260C7 and TCYC-7. Combining these 3 coloured luminaires in one setup creates the perfect match when light and colour quality are needed.

Click Here for Printer Friendly Version

Infinity TFLD-7 150W RGBCALDB LED Flood Features

- 150 W lumiled 7 colour LED engine using custom designed array
- CRI > 96 Consistently on full CCT range
- LED colour linearity and temperature drift compensation
- Optics Colour Shift compensation
- Colour wheel with 64 spectrum matching Filter gels

Infinity TFLD-7 150W RGBCALDB LED Flood Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 7
- Light Source Power: 150 W
- LED Colour Type: RGBCALDB
- Life Expectancy: 30000 h
- Refresh Rate (Max.): 1 kHz
- Luminous Flux (Total): 3000 lm
- CRI: 96
- Minimum CCT: 2000 K
- Maximum CCT: 8000 K

Control and Programming:
- Control Mode: DMX, Manual
- DMX Channels: 1, 5, 6, 10, 20
- Protocols: DMX, RDM
- Display: LCD
- Fan mode: Yes
- Dim Curve: Linear, Square, I-Square, S-Curve
- Dimmer Resolution: 16 bit

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz
- Colour System: Colour Wheel CMY+CTO

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 160 W
- Power Connector In: PowerCON Blue
- DMX Connector: XLR 3P In/Out, XLR 5P In/Out
- DMX Connector In: XLR 3P, XLR 5P
- DMX Connector Out: XLR 3P, XLR 5P

Mechanical Specifications:
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black
- Dimensions (W x H x D): 318 x 239 x 136 mm
- Weight: 5.34 kg

Product Properties:
- Cooling: Active

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Maximum Surface Temperature: 55 °C
- Minimum Operating Temperature: -10 °C

Further Product Information Below

Infinity TFLD-7 Manual (PDF)

Infinity TFLD-7 150W RGBCALDB LED Flood Supplied With

- PowerCON cable
