Infinity TF-300 300W LED Fresnel, 5700K

Name: Infinity TF-300 300W LED Fresnel, 5700K
Brand: Infinity
Price: 1026.64 GBP
Availability: InStock

Price Each £855.53 (£1,026.64 Including VAT at 20%)

REF: JP109043

Quantity:

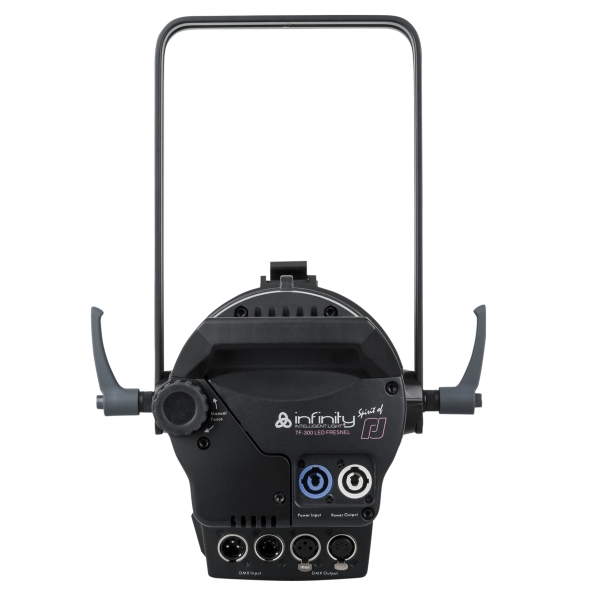

Infinity TF-300 300W LED Fresnel, 5700K

The Infinity TF-300 300W LED Fresnel is a bright 300 watt LED Fresnel of the highest available quality with a matching consistent colour temperature (>95 CRI). This enables you to light areas without showing any overlap or set boundaries.
There are two models available. The Daylight White (5700 K) version will give you a more natural feel to any film or video and the Warm White (3200 K) assures spreading an even warm white light around the stage.
We can guarantee a high quality light source due to selecting Lumiled LEDs, extensive measuring and calibration of the unit and using intuitive software. The zoom focus mechanism is easy and intuitive, both manually and motorised by dmx applicable between 15° to 50°.

Click Here for Printer Friendly Version

Infinity TF-300 300W LED Fresnel Features

- Delivers the performance of 1 kW Tungsten halogen unit
- 300 W custom designed Lumiled Engine
- Manual and motorised 15° - 50° zoom control
- Silent operation
- Consistent colour temperature and CRI > 96

!!<Infinity TF-300 300W LED Fresnel Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 300 W
- LED Colour Type: NW
- Refresh Rate (Max.): 1 kHz
- Luminous Flux (Total): 4000 lm
- CRI: 96
- Maximum CCT: 5700 K

Optical:
- Beam Angle Minimum (Circular): 15 °
- Beam Angle Max. (Circular): 50 °
- Zoom Type: Motorised
- Zoom Ratio: 1:3

Control and Programming:
- Control Mode: DMX, Manual
- DMX Channels: 1, 3, 5
- Protocols: DMX
- Display: LCD
- Fan mode: Yes
- Dim Curve: Linear, Square, S-Curve
- Dimmer Resolution: 16 bit
- Zoom Resolution: 8 bit

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 300 W
- Power Connector In: PowerCON Blue
- Power Connector Out: PowerCON Grey
- DMX Connector: XLR 3P In/Out, XLR 5P In/Out
- DMX Connector In: XLR 3P, XLR 5P
- DMX Connector Out: XLR 3P, XLR 5P

Mechanical Specifications:
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black
- Dimensions (W x H x D): 322 x 450 x 509 mm
- Weight: 8.5 kg

Product Properties:
- Cooling: Active

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Maximum Surface Temperature: 45 °C
- Minimum Operating Temperature: -10 °C>!!

Further Product Information Below

Infinity TF-300 5700K Manual (PDF)

Infinity Signature Series Brochure (PDF)

Infinity TF-300 300W LED Fresnel Supplied With

- PowerCON cable
- Filterframe
