Infinity Chimp Tour Pack

Infinity Chimp Tour Pack Features

- Infinity Chimp 100.G2
- 2x 22 Inch Capacitive Full HD Touchscreen
- Banana Wing (extension wing)

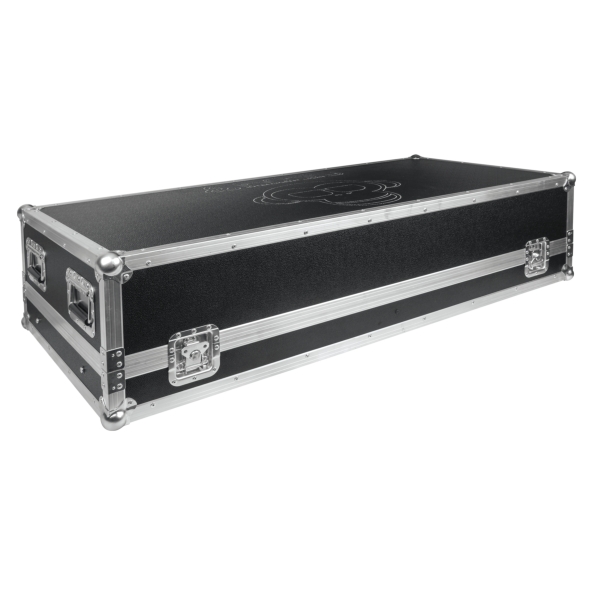

- Premium Line Flight Case
- 2x white COB XLR mini-lite

Infinity Chimp Tour Pack Specifications

Wireless Specifications:
- Gain (dB): 5 dB
- Gain (mW): 10 mW
- Antenna Type: Omni
- Antenna Radiation: 360 x 90 °

Control and Programming:
- Control Mode: DMX, MIDI
- DMX Channels: 2048
- Patch mode: Yes
- Wireless: Wireless DMX
- Display: LCD, Touch
- Display Resolution (Horizontal): 1920 px
- Display Resolution (Vertical): 1080 px
- Display Size: 22-inch
- External Display: Yes
- External Display Resolution (Horizontal): 1920
- External Display Resolution (Vertical): 1080
- Fixture Channels: 120
- Unlimited Fixtures: Yes
- Buttons: 157
- Cue Lists: 200
- Encoder Wheels: 4
- Faders: 34
- Memories: 5000
- OSC (Open Sound Control): Yes
- Playback Buttons: 10
- Playback Faders: 30
- Playback Pages: 40
- Art-Net: Yes
- Effects Engine: Yes
- Universes: 4

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 100 W
- Power Connector In: Power Pro Blue
- DMX Connector In: XLR 5P
- DMX Connector Out: XLR 5P
- Data Connector In: etherCON, RJ45, USB
- Data Connector Out: etherCON, RJ45, USB
- MIDI Connector: Yes
- Ethernet Ports: 1
- Audio Triggers: 6

Mechanical Specifications:
- Dimensions (W x H x D): 1290 x 320 x 630 mm
- Weight: 70 kg
- IP Rating: IP20 (indoor use only)
- Housing: Flightcase, Metal, Plastic
- Colour: Black

Product Properties:
- Cooling: Convection
- Desk Light: 3P XLR female

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Minimum Ambient Temperature: -5 °C

Further Product Information Below

Infinity Chimp 100.G2 Manual (PDF)

Infinity Banana Wing Manual (PDF)

Infinity Chimp Series Brochure (PDF)

Infinity Chimp Tour Pack Supplied With

- Infinity Chimp 100.G2
- Infinity Banana Wing
- Desklite(s)
- Dustcover
- RF antenna
