Infinity Banana Wing 2-Universe Expansion Wing for Chimp Consoles

Name: Infinity Banana Wing 2-Universe Expansion Wing for Chimp Consoles
Brand: Infinity
Price: 1285.6 GBP
Availability: InStock

Price Each £1,071.33 (£1,285.60 Including VAT at 20%)

REF: JP108980

Quantity:

Infinity Banana Wing 2-Universe Expansion Wing for Chimp Consoles

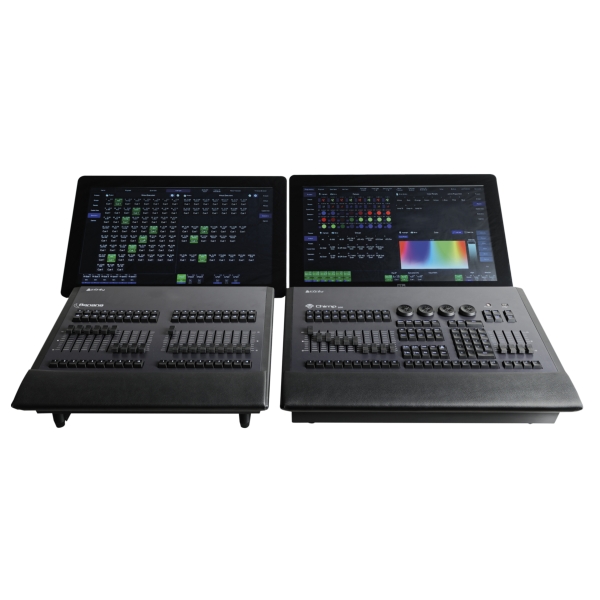

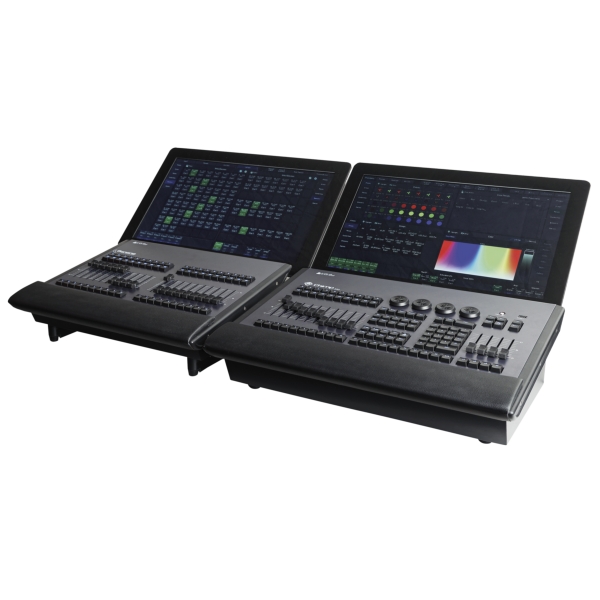

The Infinity Banana Wing 2-Universe Expansion Wing for Chimp Consoles is the ideal tool for extending the possibilities and flexibility of the Infinity Chimp consoles. The Banana Wing offers operators 20 extra playback faders and will release 2 extra universes on top of your Chimp’s capabilities. The console will recognize the presence of the Wing and reconfigure the second external monitor to show additional playbacks for the operator. The Banana Wing will also enable 2 universes of DMX and Art-Net when connected to your Chimp OnPC software.

Click Here for Printer Friendly Version

Infinity Banana Wing 2-Universe Expansion Wing for Chimp Consoles Features

- Suitable for the Infinity Chimp
- Expands any Chimp console with 2 universes
- Enables playback information on external screen
- Adds 2 DMX outputs onto your Chimp setup
- Adds 20 extra playback faders

Infinity Banana Wing 2-Universe Expansion Wing for Chimp Consoles Specifications

Control and Programming:
- Control Mode: DMX, PC Software
- DMX Channels: 1024
- Buttons: 60
- Faders: 20
- Playback Faders: 20

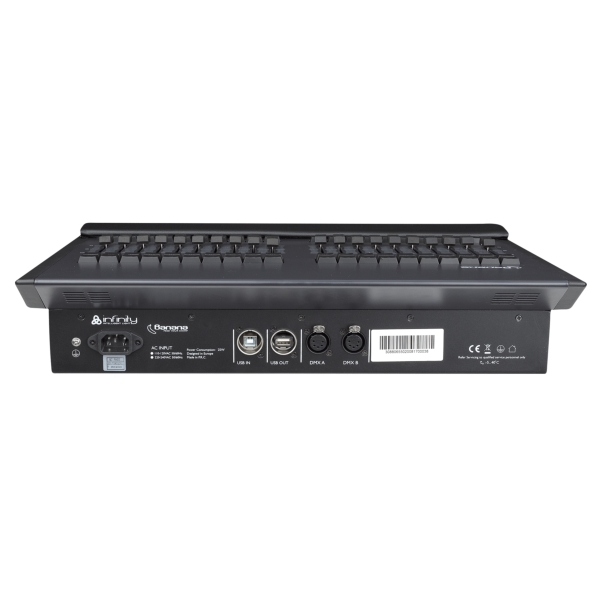

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 25 W
- Power Connector In: IEC
- DMX Connector In: XLR 5P
- DMX Connector Out: XLR 5P
- Data Connector In: USB
- Data Connector Out: USB

Mechanical Specifications:
- Dimensions (W x H x D): 487 x 115 x 400
- Weight: 7.5 kg
- IP Rating: IP20 (indoor use only)
- Housing: Metal, Plastic
- Colour: Black

Product Properties:
- Cooling: Passive

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Minimum Ambient Temperature: -5 °C

Further Product Information Below

Infinity Banana Wing Manual (PDF)

Infinity Chimp Series Brochure (PDF)

Infinity Banana Wing 2-Universe Expansion Wing for Chimp Consoles Supplied With

- IEC Cable
