Global Truss F34 Standard Spindle Foot (4 into 1 + screwjack)

Name: Global Truss F34 Standard Spindle Foot (4 into 1 + screwjack)
Brand: Global Truss
SKU: 0759478552800
Price: 165.73 GBP
Availability: InStock

Price Each £138.11 (£165.73 Including VAT at 20%)

REF: JP101500

Quantity:

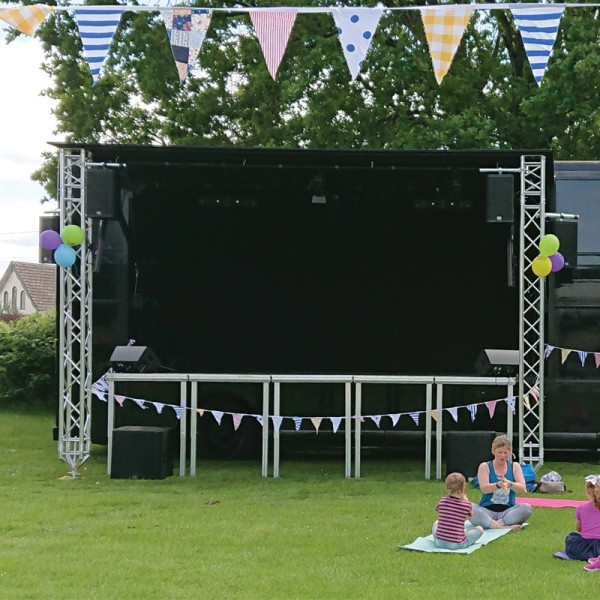

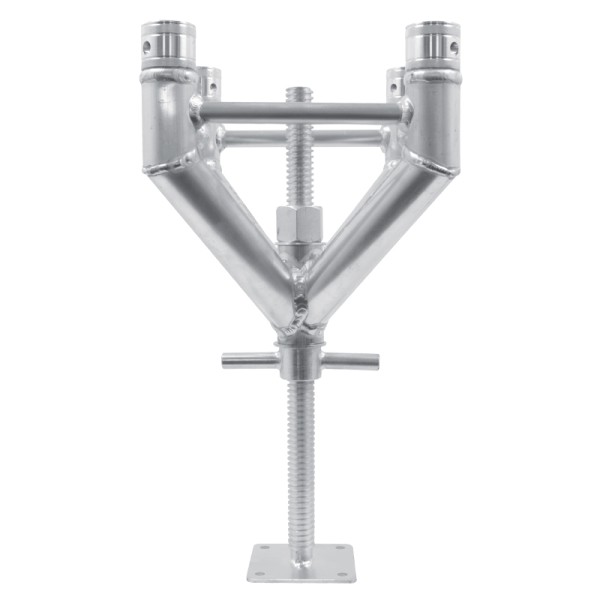

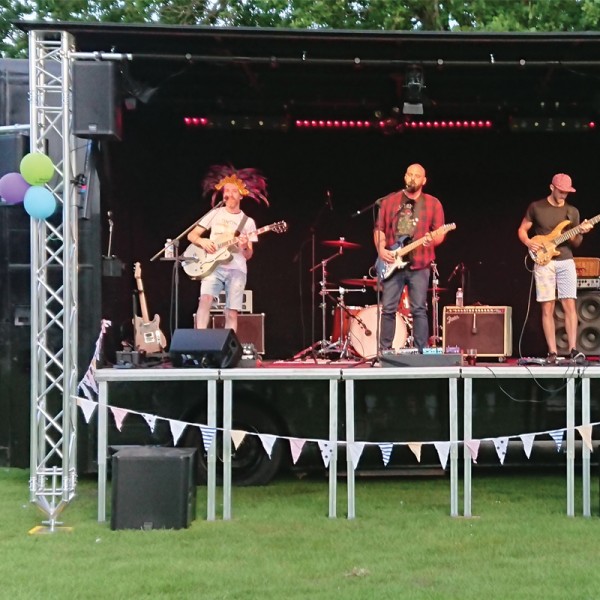

Global Truss F34 Standard Spindle Foot (4 into 1 + screwjack), This height adjustable (35-70cm) Global Truss Standard F34 threaded spindle base is used as an alternative to a base plate in uneven floor situations, allowing for the variable height adjustment of truss verticals with the easy-to-use screw jack. The spindle base is commonly used for constructions including stage roof systems and exhibition stands where the base beneath the construction is not level.

Click Here for Printer Friendly Version

F34 Standard Spindle Foot (4 into 1 + screwjack) Features

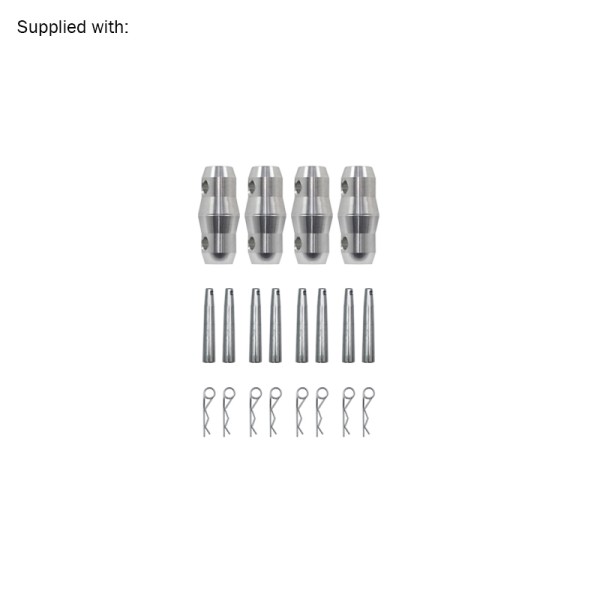

- Supplied with 4 conical connectors, 8 bullet pins and 8 R clips
- 2mm wall thickness aluminium
- 1000kg static load capacity (indoor, zero side load)
- Supplied with 500mm screw jack

F34 Standard Spindle Foot (4 into 1 + screwjack) Specifications

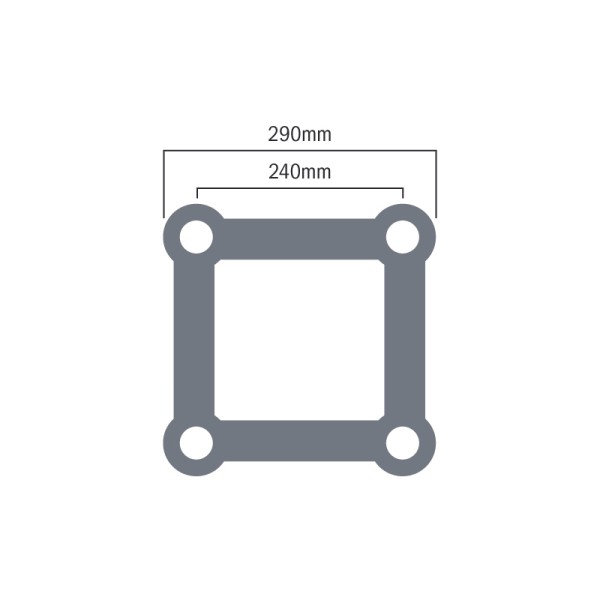

- Truss diameter: 290mm
- Tube diameter: 50mm
- Dimensions: 290x290mm
- 350mm high (without the screw jack)
- Weight: 5.6kg
