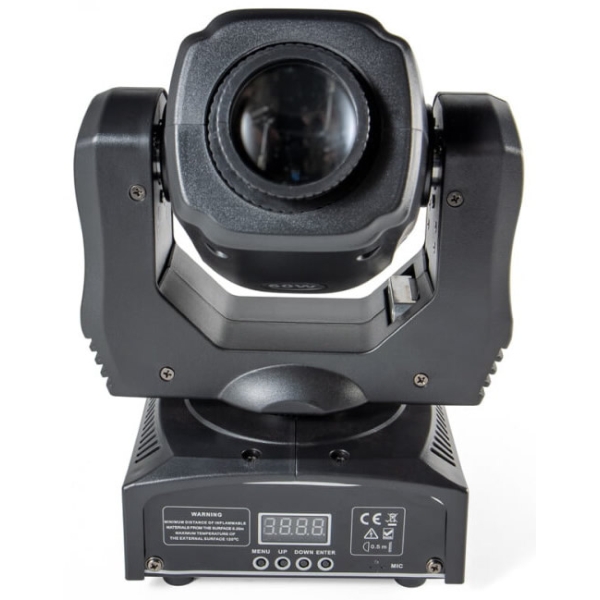

Flash Spot LED 60 Moving Head, 60W

Flash Spot LED 60 Moving Head Specifications

Power Source:
- Supply voltage: 100-240V
- Power consumption: 80W
- Power frequency: 50-60Hz

Light source:
- Type: LED
- Quantity: 1
- Power: 60
- Color Rendering Index (CRI): 65

Color Mixing System:
- Color Wheel: 8 bit

Color Wheel:
- Quantity: 7+biay

Dimming:
- Dimming: 8 bit
- Frequency: 1Hz - 20Hz

Zoom:
- Zoom: Fixed

Iris:
- Iris: Fixed

Beam angle:
- Beam angle: 11° Fixed

Frost filter:
- Frost filter: Light (Smooth)

Focus:
- Focus: Manual

CTO:
- CTO: Smooth

GOBO Wheel:
- Static: 7
- Rotation: 8 bit
- Removable slot: No

Strobe:
- Frequency: 1-20Hz
- Pulsating: Yes
- Random: Yes

DMX control:
- Number of modes: 2
- Number of channels: 9-11

Movement:
- Range PAN: 540
- Range TILT: 202
- Regulation: 8 bit

Modes of operation:
- DMX512: Yes
- Sound control: Yes
- Auto control: Yes
- Master-slave: Yes

User Interface:
- Physical buttons: Yes
- LED segment display: Yes

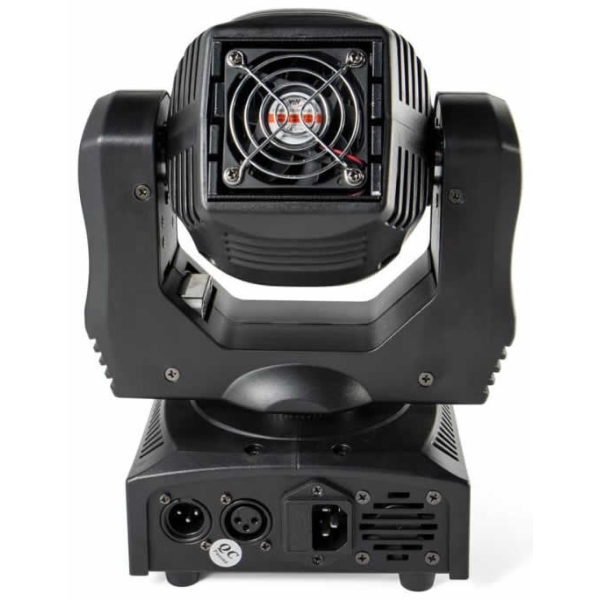

Connectors:
- AC IN: IEC-C13
- DMX IN: 3-pin DMX
- DMX OUT: 3-pin DMX

Physical parameters:
- IP protection level: IP20
- Housing type: ABS
- Fixing: Mounting hole
- Housing color: Black
- Cooling: Active
- Dimensions (W x H x D): 145 x 280 x 200 mm
- Weight: 3 kg

Further Product Information Below

Flash Spot LED60 Manual (PDF)

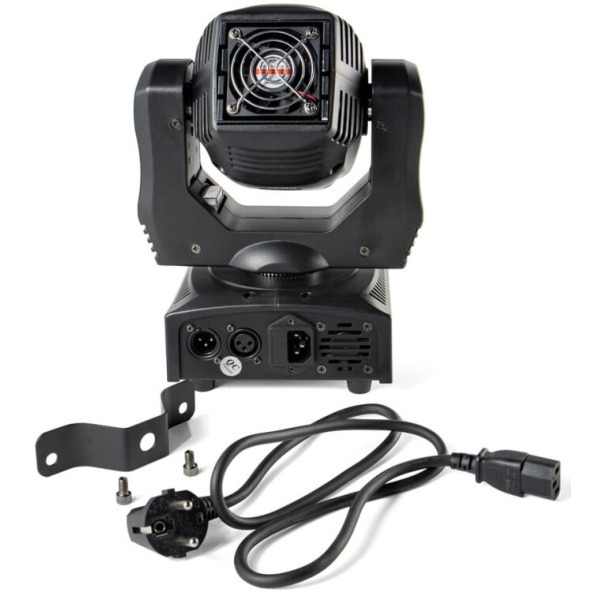

Flash Spot LED 60 Moving Head Supplied With

- Flash Spot LED 60
- Manual
- IEC-C13 Power Cable
