FBT SUBline 218SA Dual 18-Inch Active Subwoofer, 1200W

Buy 2+ units for £4767.66 Inc VAT. To Do So, Click Here to Register.

Price Each £2,257.41 (£2,708.89 Including VAT at 20%)

REF: JP54473

Quantity:

FBT SUBline 218SA Dual 18-Inch Active Subwoofer, 1200W

The FBT SUBline 218SA Dual 18-Inch Active Subwoofer is built in birch ⅝ inch plywood with scratch & scuff resistant paint finish. Aimed to extend the low frequency response to a wide range of FBT speaker systems. Designed with a Band Pass configuration.
It has a Class D amplifier, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker. IN/OUT stereo, it is possible to use only one subwoofer with Left and Right satellites. A Neutrik TRUE1 Power connection negates the need for a switch and provides a secure connection. Additional optional wheels, ergonomic integrated carrying handles and light cabinet allow an easy transport.

Click Here for Printer Friendly Version

FBT SUBline 218SA Dual 18-Inch Active Subwoofer Features

- Bass-reflex design Subwoofer
- 2 x 460mm (18 inch) high excursion woofer with 75mm (3 inch) voice coil, custom made for FBT by B&C
- Frequency response from 30Hz to 120Hz
- 1200W RMS Class D power amplifier with switch mode power supply
- DSP with 6 presets, 3 x EQ with 2 x LPF crossover settings, 6-step digital delay line
- Control panel with stereo XLR in/out, Volume. EQ presets, Delay, Phase reversal switch 0°-180°, 3 status LED indicators
- 18mm Baltic birch plywood enclosure with heavy duty coating
- 2 x M20 threads for stand pole mount and 4 x aluminum ergonomic FBT handles, optional wheels
- Provides additional low frequency extension when used along with MUSE 210LA active line array system

FBT SUBline 218SA Dual 18-Inch Active Subwoofer Specifications

- Configuration: 1 Way bass reflex
- Frequency response: 30Hz - 120Hz
- Low frequency woofer: 2x 18 inch
- Maximum SPL (cont/peak): 136 / 140db
- Dispersion: Omnidirectional
- Input connector: Stereo XLR with Link and HP Filter out
- Input impedance: 22 kΩ
- AC Power requirements: 1000VA
- Built-in amplifier (RMS): 1200W RMS
- Built-in amplifier (Peak): 2400w
- Power cord: 5m PowerCON TrueCon1
- Net Dimension (WxHxD): 970 x 661 x 670 mm
- Net Weight: 81 kg
- Transport Dimension (WxHxD): 1150 x 780 x 800mm
- Transport Weight: 94 kg

Further Product Information Below

FBT SUBline Series Manual (PDF)

FBT SUBline 218 SA Data Sheet (PDF)

FBT SUBline 218 SA Drawings (PDF)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

FBT SUBline 218SA Dual 18-Inch Active Subwoofer, 1200W

Related products:

FBT SUBline 218S Dual 18-Inch Passive Subwoofer, 1200W @ 4 Ohms

3M 3 pin XLR Male to Female DMX 512

DMX and IEC Extension Cable 3M

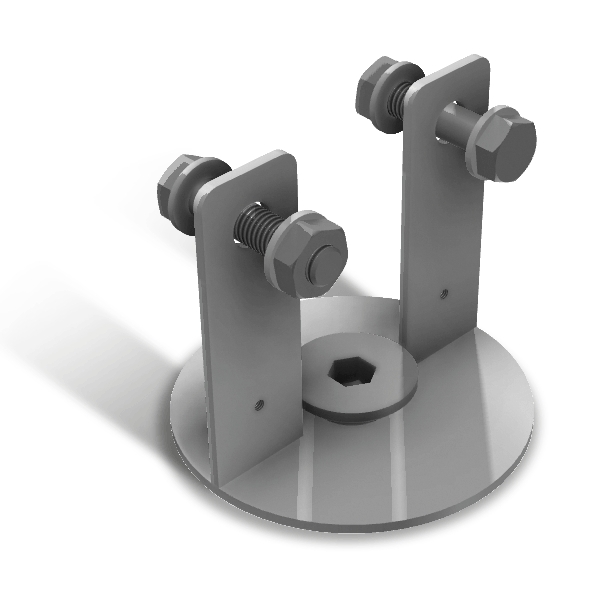

FBT Muse MS-J 210 Metal Bracket to fix MS-F 210 to FBT Subline 218 or Mitus 218
