FBT Project 320 3.5-Inch 2-Way Full Range Speaker, 40W @ 8 Ohms or 100V Line - White

Price Each £81.76 (£98.11 Including VAT at 20%)

REF: JP106508

Quantity:

FBT Project 320 3.5-Inch 2-Way Full Range Speaker, 40W @ 8 Ohms or 100V Line - White

The FBT Project 320 3.5-Inch 2-Way Full Range Speaker has been created and designed in Italy. Their exclusive design characterises a complete new family of loudspeakers in the Audio Contractor range. They are ideal for any installation: their design allows the loudspeakers to be used in any environment, keeping the same high quality sound throughout. The PROJECT range utilises a compact two-way system guaranteeing high performances, wide dynamics, high fidelity sound reproduction and high voice intelligibility. PROJECT speakers are equipped with an exclusive fully adjustable support bracket for easy installation, to cut costs and save installation time the bracket may be attached to the wall prior to installing the loudspeaker and is provided with a safety cable. Connection to the loudspeakers is via plug in Euroblock connector and adjustment of loudspeaker output is made via screwdriver adjustable switch.

Click Here for Printer Friendly Version

FBT Project 320 3.5-Inch 2-Way Full Range Speaker Features

- 2 way bass reflex
- 3.5-inch woofer and 0.5-inch tweeter
- 100V line transformer (Multi Tap)
- Frequency response @-10 dB is 100Hz - 15kHz
- Dispersion 120° x 120°
- High-pass filter recommended 70Hz - 24 dB/oct
- 8-piece multiple packing
- 20W/40W nominal/maximum power
- Setting 4 / 8 / 15 / 20W / 8 Ω
- Sensitivity 85 dB
- Max SPL 103 dB

FBT Project 320 3.5-Inch 2-Way Full Range Speaker Specifications

- Recommended Amplifier: 30W RMS
- Long term power: 15W
- Short term power: 60W
- Recommended HP filter: 70Hz -24 dB Oct
- Nominal Impedance: 8 Ω
- Transformer Taps ( @ 100V ): 4W, 8W, 15W, 20W
- Sensitivity ( @1W / 1m ): 87 dB
- Dispersion ( H x V ): 120° x 120°
- Frequency Response: 100Hz - 15KHz -6 dB
- Max. SPL for 1% T.H.D: 103 dB
- Drivers:
- HF: 0.5-inch
- LF: 3.5-inch
- Input connectors: Euroblock

Physical:
- Colour: White (RAL 9010)
- Dimensions (W x H x D): 143 x 204 x 162 mm
- Weight: 1.5 kg

Further Product Information Below

FBT Project Series Manual (PDF)

FBT Project 320 Data Sheet (PDF)

FBT Project 320 Technical Drawing (PDF)

FBT Project 320 3.5-Inch 2-Way Full Range Speaker Supplied With

- Wall Mount Bracket

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

FBT Project 320 3.5-Inch 2-Way Full Range Speaker, 40W @ 8 Ohms or 100V Line - White

Related products:

FBT Project 320 3.5-Inch 2-Way Full Range Speaker, 40W @ 8 Ohms or 100V Line - Black

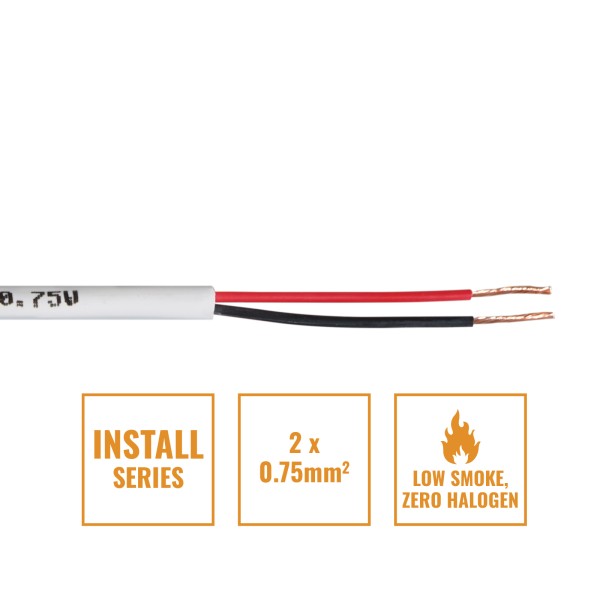

elumen8 INSTALL LSZH 2 Core 0.75mm Speaker Cable (SP2X0.75W) - 100m Drum, White

elumen8 INSTALL LSZH 2 Core 1.5mm Speaker Cable (SP2X1.5W) - 100m Drum, White

elumen8 INSTALL LSZH 2 Core 2 x 2.5mm2 Speaker Cable SP2X2.5W, 100m Drum White

FBT Project 315 3.5-Inch 2-Way Full Range Speaker, 30W @ 8 Ohms or 100V - White

FBT Project 530 5-Inch 2-Way Full Range Speaker, 60W @ 8 Ohms or 100V Line - White

FBT Project 550 5-Inch 2-Way Full Range Speaker, 100W @ 8 Ohms or 100V Line - White

FBT Project 640 6.5-Inch 2-Way Full Range Speaker, 80W @ 8 Ohms or 100V Line - White

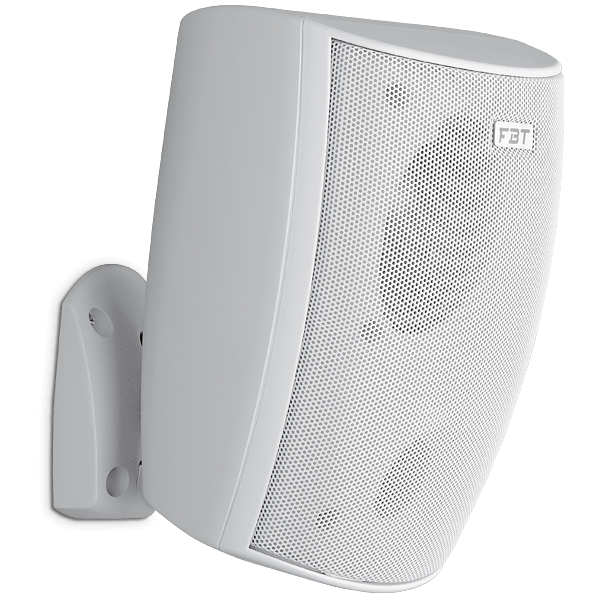

FBT Project 660 6.5-Inch 2-Way Full Range Speaker, 120W @ 8 Ohms or 100V Line - White
