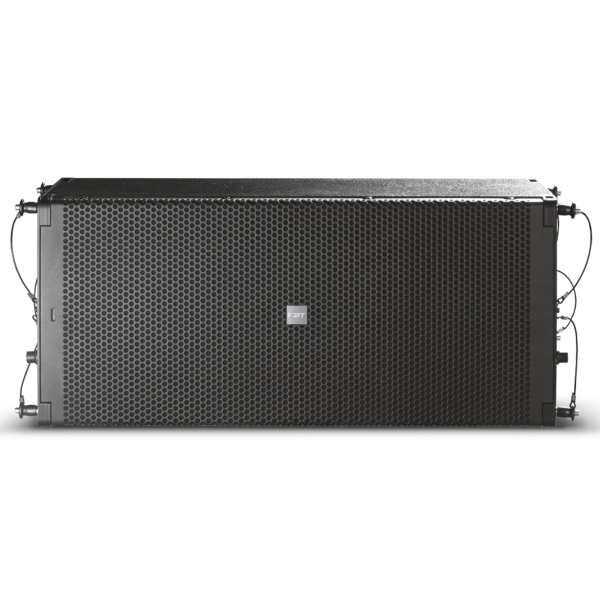

FBT Muse 210LND Networkable Active Line Array Speaker with Dante, 1200W
The FBT Muse 210LND Networkable Active Line Array Speaker with Dante with refined technologically and advanced engineering. These are the qualities of the new speaker that redefines the concept of line array in terms of power, size, lightness, flexibility and practicality of use. The modularity from 2 to 16 speakers allows use in a wide variety of situations, from small band to large outdoor concert.
It has two custom 250mm woofers with 64mm high excursion coil and two custom B&C drivers with 25mm throat. The waveguide, optimised with BEM finite element simulations to minimise distortion, has a horizontal dispersion of 90°. Designed to present an optimal load to the driver's membrane starting from 800Hz, it allows the propagation of a flat acoustic wave up to over 18Khz, strictly respecting the most stringent physical criteria for an ideal cylindrical source. The acoustic configuration with the central horn allows for a particularly linear and symmetrical horizontal dispersion.
The cabinet is made of 15mm birch plywood with two die-cast aluminium handles. The hardware integrated in the cabinet allows the suspension of 16 boxes with a 10:1 safety factor and an inclination from 0° to 10° at a step of 1°. The design of the no-compromise mechanics in terms of practicality and speed of set-up of the system makes it particularly suitable for daily touring movements. The aesthetic elegance also makes it very suitable for fixed installations.
The pinnacle of the entire project is the 800W + 400W RMS amplification module with TCP/IP network interface. Based on the OCA ALLIANCE AES70 standard, it communicates with the "INFINITO system management suite" remote control software. INFINITO is a true revolution in the FBT world that enhances the user experience, reaching new heights in terms of performance and simplicity! It is a software platform that is fully developed in house by the FBT R&D team that offers real time monitoring of the internal sensors and the status of the connected devices, fast IN/OUT Vu-meters, controls of all the parameters, group management and warnings readout.
The module is contained in an aluminium chassis with intelligent forced ventilation and is equipped with an OLED display with encoder for parameter setting, among which 8 presets offer easy configuration, adapting the DSP to the curvature of the array and to the number of elements used.
