FBT Modus 215FSA Active Subwoofer, 2000W

Buy 2+ units for £7290.05 Inc VAT. To Do So, Click Here to Register.

Price Each £3,451.73 (£4,142.08 Including VAT at 20%)

REF: JP54371

Quantity:

FBT Modus 215FSA Active Subwoofer, 2000W

The FBT Modus 215FSA Active Subwoofer is a dual B&C 15 inch 4 inch voice coil subwoofer with a band-pass design and push-pull configuration. The 215FSA is designed to be both flown and ground stacked.Featuring a built in 2000Watt amplifier delivering 146dB.
The MODUS 215FSA is a dual 15 inch subwoofer with a band-pass design and push-pull configuration, delivering significantly extended low frequency response despite its compact size. It is acoustically designed to support two or three MODUS 4805 or 4820 modules.
The FBT MODUS 215FSA powered subwoofer meet the following performance criteria: frequency response of 33Hz to 100Hz, peak output of 146dB half-space, input impedance 22 kOhm.
FBT MODUS 215FSA is of bandpass design incorporating 2x15" B&C neodymium woofers with 4 inch voice coil. High efficiency internal amplifier 2000W in "D" Class with switch mode power supply and built in DSP signal processor with 6 eq. presets cardioid configurations.
All components are mounted in a 0.70 inch birch plywood enclosure with a resistant black textured finish. The rear facing input panel provides XLR signal input and link, level control, preset, delay , phase 0°-180° switch, diagnostic led, power supply with Neutrik powercon cable duplex with input and output.
The FBT MODUS 215FSA can be suspended above the line array modules or ground stacked.

Click Here for Printer Friendly Version

FBT Modus 215FSA Active Subwoofer Features

- Powered subwoofer in band-pass push-pull
- 2x 380mm (15 inch) B&C neodymium subwoofer with 100mm (4 inch) coil
- Class D amplifier delivering 2000W RMS with high efficiency switch mode power supply
- DSP with 6 EQ presets cardioids configurations, delay
- control panel with XLR input and link, volume, presets, delay, phase 0°-180°, ground lift
- Frequency response extended to 33HZ
- 18 mm (¾ inch) birch plywood enclosure, with 4 integrated handles and mechanical hardware for suspension
- The particular acoustic loading enable to drastically reduce the distortion and movement of the cone, ensuring high SPL and very high reliability
- can either be suspended above the line array modules or ground stacked
- 4 Optional wheels for transport

FBT Modus 215FSA Active Subwoofer Specifications

- Configuration: 1 Way
- Frequency response: 33Hz - 100Hz
- Low frequency woofer: 2x 15 inch with 4 inch voice coil
- Maximum SPL cont/peak: 140 / 146dB
- Dispersion: Omnidirectional
- Input impedance: 22 kΩ
- Input connector: XLR with link
- AC Power requirements: 1840VA
- Built-in amplifier (LF / HF):
- RMS: 2000w
- Peak: 4000w
- Power cord: 5m PowerCON TRUE1
- Net Dimension (WxHxD): 727 x 512 x 580mm
- Net Weight: 94.5kg
- Transport Dimension (WxHxD): 920 x 1800 x 780mm
- Transport Weight: 106kg

Further Product Information Below

FBT Modus Series manual (PDF)

FBT Modus 215 FSA Data Sheet (PDF)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

FBT Modus 215FSA Active Subwoofer, 2000W

Related products:

FBT Modus 118FSA Flyable Active Subwoofer, 1200W

3M 3 pin XLR Male to Female DMX 512

LEDj 3m Neutrik PowerCON TRUE1 TOP Cable - 1.5mm H07RN-F

FBT Modus MD-C 4820 Speaker Cover for FBT Modus 215FSA

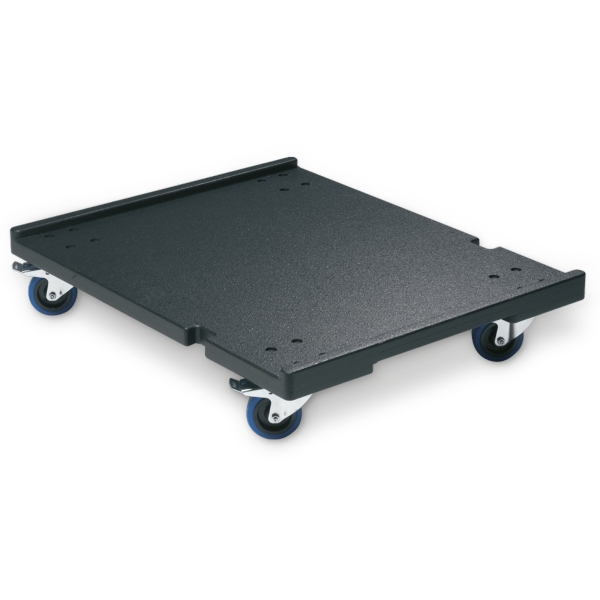

FBT Modus MD-T SUB Trolley for 2x FBT Modus 215FSA
