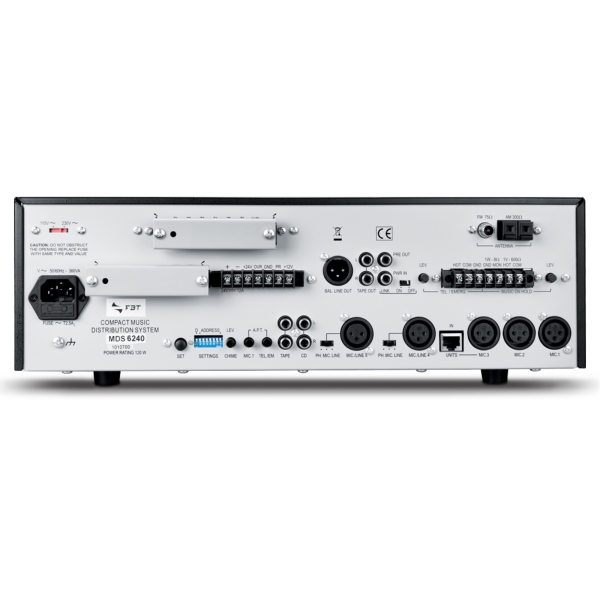

FBT MDS 6240 Multi Series 6-Zone Mixer Amplifier with CD, USB, SD Card and Tuner, 240W @ 8 Ohms or 50V / 70V / 100V Line

FBT MDS 6240 Multi Series 6-Zone Mixer Amplifier with CD, USB, SD Card and Tuner Features

- 2 balanced/unbalanced microphone inputs with phantom power supplies
- Microphone input or microphone bases of the MBT 1000 range
- 2 MIC/PH/LINE inputs with associated selector switch
- 2 auxiliary inputs for sound sources (TAPE/CD)
- Telephone/emergency audio input for priority calls with adjustable threshold and sensitivity
- Front-panel level controls for each microphone and auxiliary input
- Front panel overall volume control and treble and bass controls
- Multi-purpose sound source module with CD-MP3/ USB/SD CARD player and AM/FM tuner.
- Constant voltage (50/70/100 V) or 8? impedance loudspeaker output lines
- 6 output lines (zones) with front-panel level control for the music signal for each single zone
- Balanced line output for connection to other amplifiers
- Output/input for connection to audio processors
- Connection to an external amplifier for simultaneous music and speech in different zones
- LED-type Vu meter for clear and immediate monitoring of output power
- Microswitches for setting the operating modes
- Inclusion/exclusion of speech filter on all microphone inputs
- Contacts for activating input precedence and override
- "Music On Hold" output with output level control (output of selected auxiliary signal)
- Alerting signal (chime) with level control
- Selectable 230/115 VAC and 24 VDC mains power supply

FBT MDS 6120 Multi Series 6-Zone Mixer Amplifier with CD, USB, SD Card and Tuner Specifications

- Rated power output: 240 W
- Constant voltage outputs: 50, 70 or 100 V
- Low impedance outputs: 8 Ω
- Distorsion at rated power: <1%

Tones control:
- Bass: ±10 dB (100 Hz)
- Treble: ±10 dB (10 kHz)

Microphone inputs 1 and 2:
- Input sensitivity/impedance: 1.2 mV / 1300 Ω
- S/N Ratio: 66 dB
- Frequency response: 40 ÷ 19,000 Hz
- Phantom supply: 17.5 V
- VOX MIC.1 activation threshold: 0.2 ÷ 5 mV

Microphone input 3 / Units:
- Input sensitivity/impedance:
  - Mic 3: 1.2 mV / 1.3 kΩ
  - Units: 850 mV / 800 kΩ
- S/N Ratio:
  - Mic 3: 66 dB
  - Units: 76 dB
- Frequency response:
  - Mic 3: 30 ÷ 20,000 Hz
  - Units: 30 ÷ 20,000 Hz

Microphone/Line inputs 4 and 5:
- Input sensitivity/impedance:
  - Mic: 1.2 mV / 1.3 kΩ
  - Line: 110 mV / 130 kΩ
- S/N Ratio:
  - Mic: 66 dB
  - Line: 77 dB
- Frequency response:
  - Mic: 30 ÷ 20,000 Hz
  - Line: 30 ÷ 20,000 Hz

Auxiliary inputs:
- CD Input sensitivity/impedance: 450 mV / 35 kΩ
- TAPE Input sensitivity/impedance: 220 mV / 18 kΩ
- S/N Ratio: 80 dB
- Frequency response: 30 ÷ 20,000 Hz
- Precedence attenuation: 60 dB

Telephone input:
- Input sensitivity/impedance: 105 mV / 6 kΩ
- S/N Ratio: 74 dB
- Frequency response: 200 ÷ 20,000 Hz
- Telephone input activation threshold: 0 ÷ 200 mV

Signal outputs:
- MOH Line: 2 V / 300 Ω
- MOH Monitor power: 1.9 W / 8 Ω
- PRE output: 0.8 V / 3,8 kΩ
- TAPE output: 0.9 V / 2 kΩ
- LINE output: 1 V / 3.9 kΩ

Electrical:
- 230 V Mains power supply ( ±10% 50 / 60 Hz ): 510 W / 590 VA
- External DC power supply: 24 V / 13.1 A ( 0.3 A @ Pout=0 W )

Physical:
- Dimensions (W x H x D): 432 x 133 x 360 mm
- Weight: 16.5 kg
