FBT Vertus DLA 804A Active Line Array Column, 8x 400W
The FBT Vertus DLA 804A Active Line Array Column is composed of 8 x 100mm (4 inch) full-range column loudspeakers matched with 8x50W Class D power amplifiers with switch mode power supply. Designed especially for voice reproduction, DLA804A has a frequency response from 120Hz to 10kHz. It can be used alone or as an addition to the DLA 1244A in order to provide further low end extension as part of a system.
The beam steering characteristics allow user control of directivity of the audio minimising reflections in difficult audio environments. Control can be programmed remotely using RJ45 network or via rear panel controls. Vertical steering provides control from +20 degrees to -30 degrees and the beamwidth of this dispersion characteristic from 10 degrees to 40 degrees.

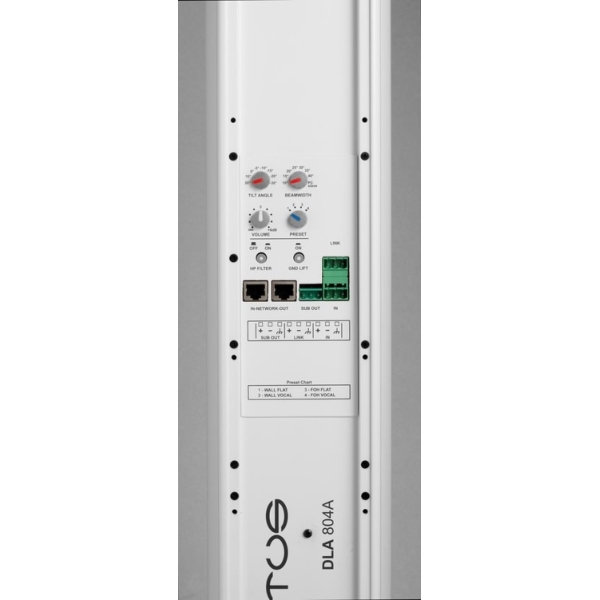

Multiple DLA804A modules can be used together in order to extend the SPL and the minimum control frequency as well as to reduce beamwidth of radiation lobe. The PC-slave position allows control and configuration via PC (with FBT USB-RS485 Converter). RJ45 connectors for RS-485 network data configuration via provided software. Power connection through Neutrik PowerCON.
