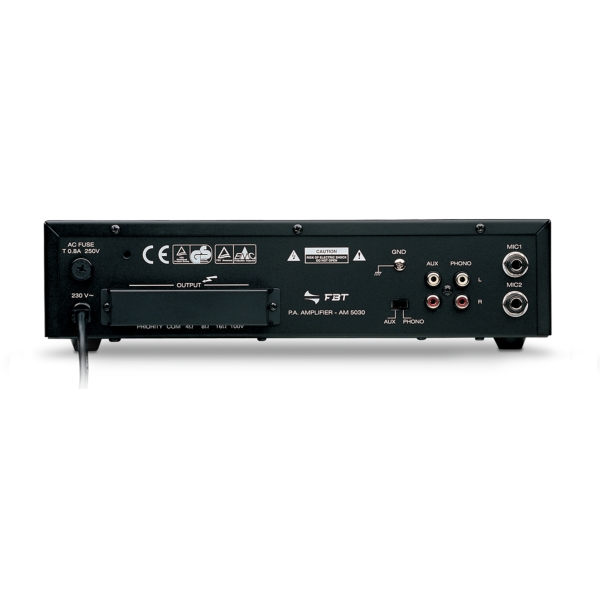

FBT AM 5030 Integrated Amplifier, 30W @ 4 Ohms or 100V Line

Price Each £153.24 (£183.89 Including VAT at 20%)

REF: JP106519

Quantity:

FBT AM 5030 Integrated Amplifier, 30W @ 4 Ohms or 100V Line

The FBT AM 5030 Integrated Amplifier offers greater operational flexibility. With two microphone inputs and one AUX input for a media player.

Click Here for Printer Friendly Version

FBT FBT AM 5030 Integrated Amplifier Features

- Microphone sockets 2
- Priority of microphone over music
- Low impedance and 100V outputs

FBT AM 5030 Integrated Amplifier Specifications

- Sensitivity:
  - Microphone: -55dB ±2dB
  - AUX: -20dB ±2dB
- Output Power: 30W @ 4 Ohm
- Frequency Response: 100Hz - 18kHz ±3dB
- Distortion: <1% (1kHz 1W)
- Signal to noise ratio > -55dB
- Noise Level: 50mV
- Tone Controls:
  - Treble: 6k ±10dB
  - Mid: 1k ±10dB
  - Bass: 150Hz ±10dB
- Speaker Outputs: 4, 8 or 16 Ohm / 100V

Physical:
- Dimensions (W x H x D): 320 x 80 x 190 mm (2U)
- Weight: 5 kg

Further Product Information Below

FBT AX 3000 User Manual (PDF)

FBT AX 3000 Data Sheet (PDF)
