Equinox Switchblade

Name: Equinox Switchblade
Brand: Equinox
SKU: 0759478552619
Price: 617.76 GBP
Availability: InStock

Buy 2+ units for £1179.93 Inc VAT. To Do So, Click Here to Register.

Price Each £514.80 (£617.76 Including VAT at 20%)

REF: JP104860

Quantity:

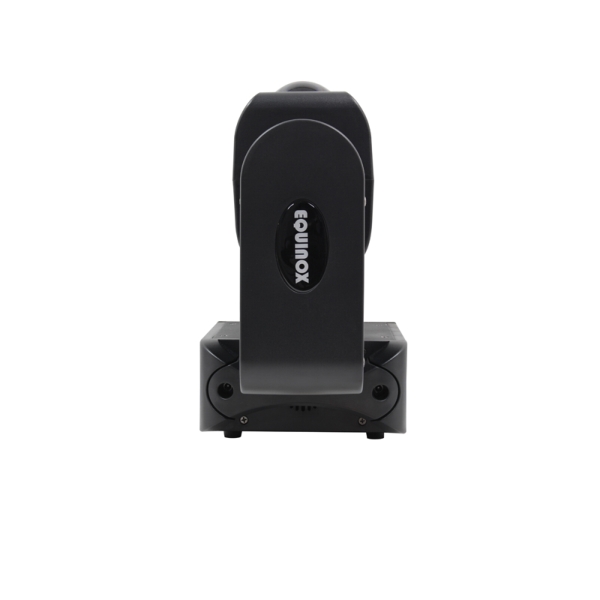

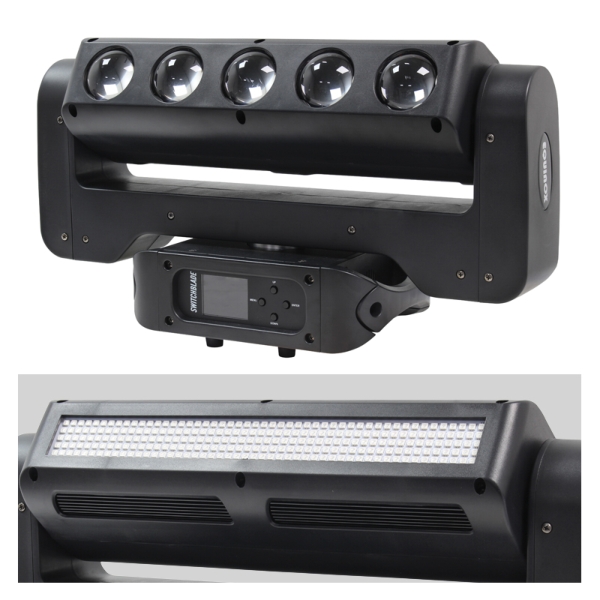

Equinox Switchblade, Incorporating a beam and strobe/wash effect, the Switchblade does it all. One side of the sleek bar features five pixel mappable beams with an 8° beam angle whilst the other has 250 tri-colour LEDs controllable over five zones which strobe/wash to fill venues with blinding effects in any colour. Infinite pan and tilt with lightning quick movements along with razor sharp beams create awesome aerial effects.

Click Here for Printer Friendly Version

Equinox Switchblade Features

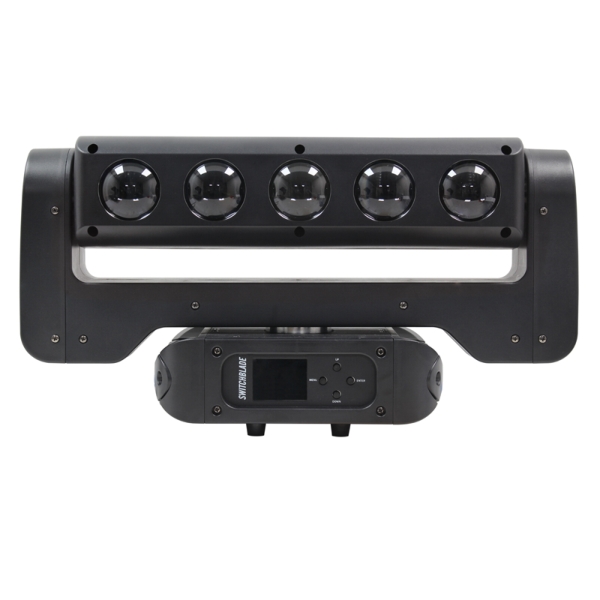

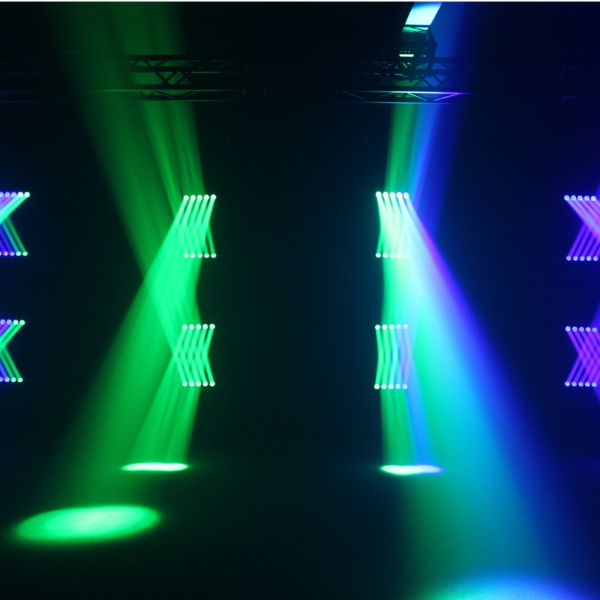

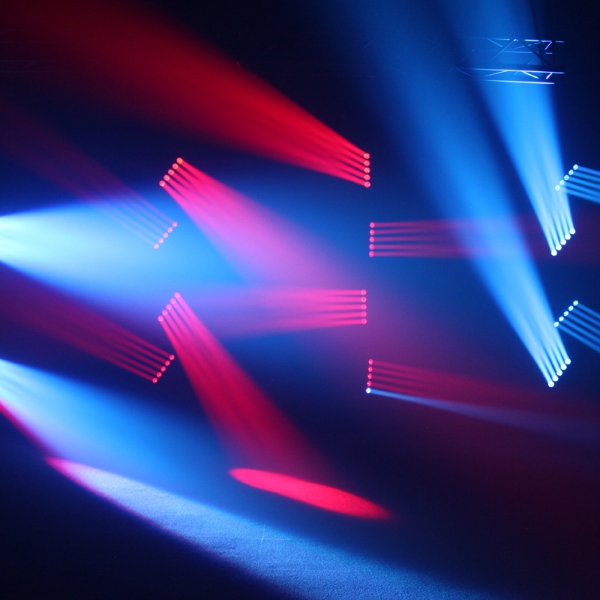

Beam optics:
- 5 x 40W quad-colour LEDs (RGBW)
- Beam angle: 8°

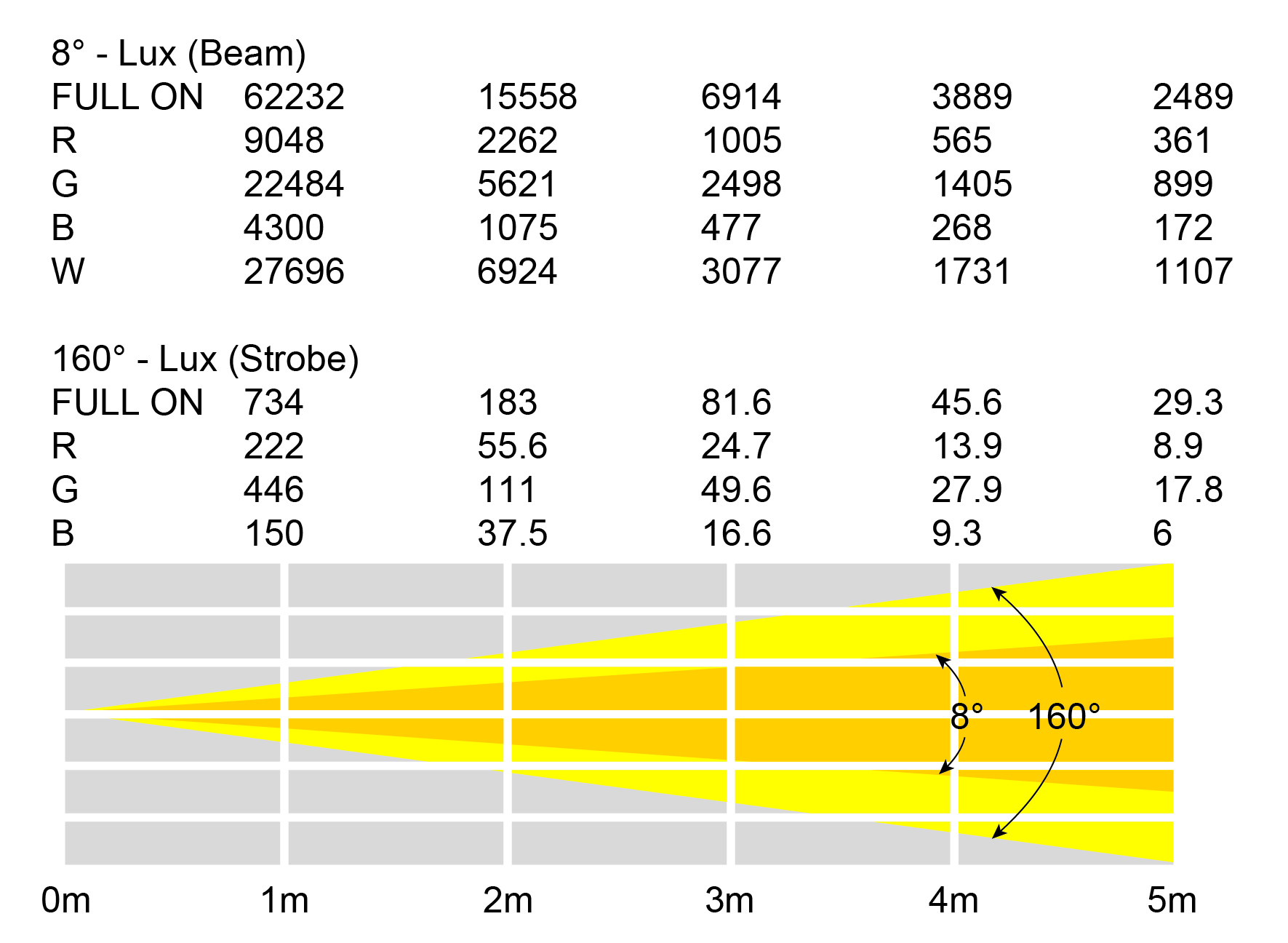

- 15,558 Lux @ 2m (per LED, full on)
- 16kHz refresh rate

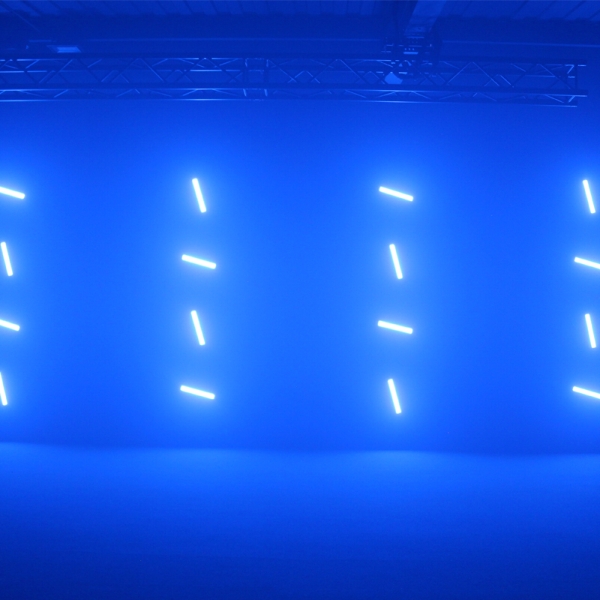

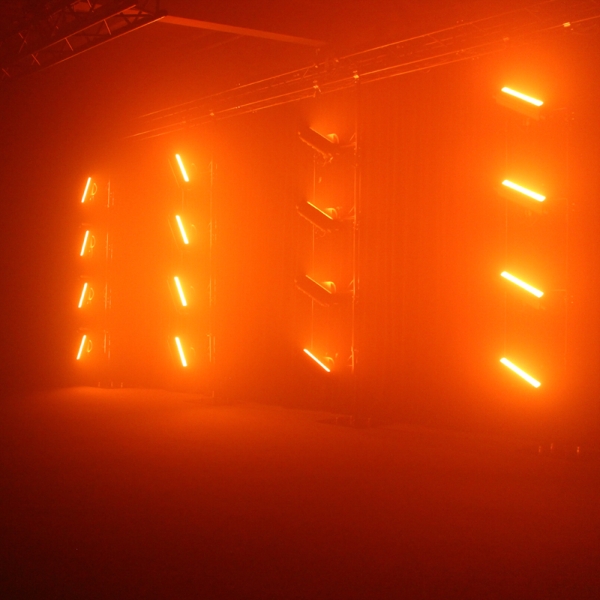

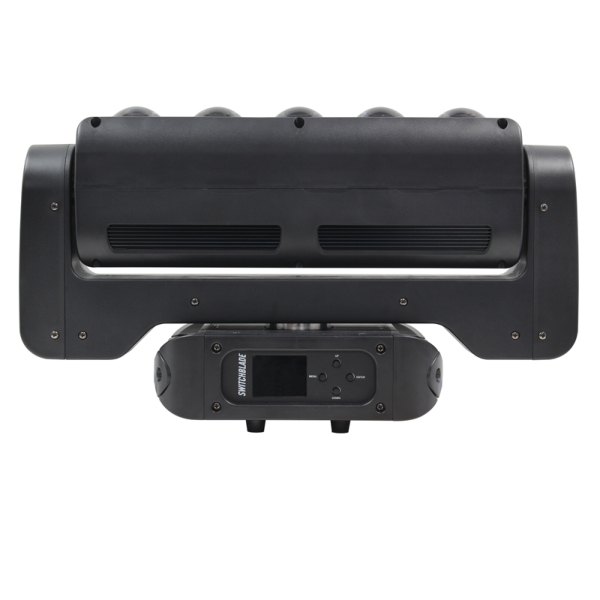

Strobe optics:
- 250 tri-colour 5050 SMD LEDs (RGB)
- Beam angle: 160°
- 183 Lux @ 2m (full on)
- 500Hz refresh rate

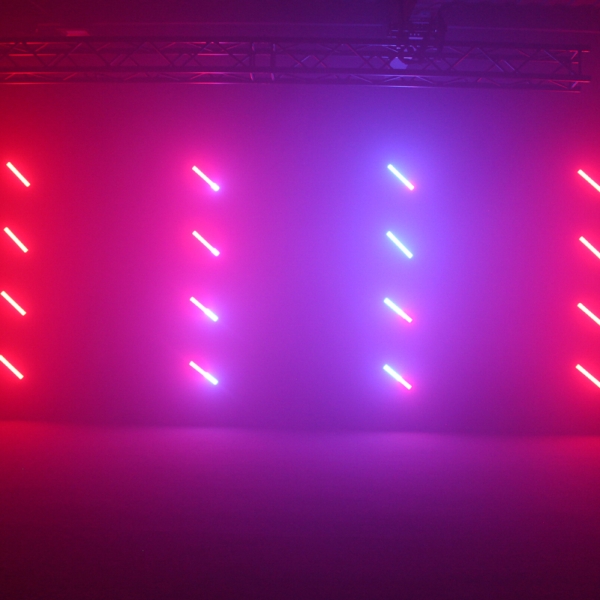

- Individually controllable LEDs (beams)/zones (strobe)
- DMX channels: 2/15/23 or 48 selectable
- Auto, sound active and master/slave modes
- Pan/tilt auto correction
- 16 bit pan/tilt positioning
- 360° continuous pan and tilt
- 0-100% dimming and variable strobe

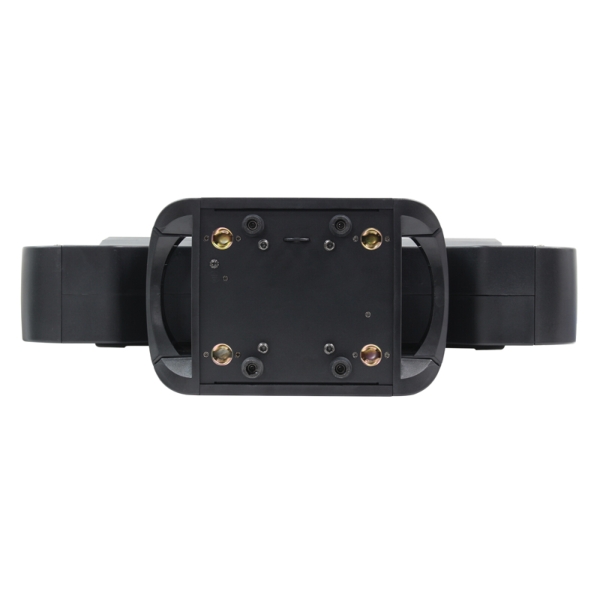

- Supplied with quick release omega clamp
- 4 push button menu with 2.5-inch LCD display

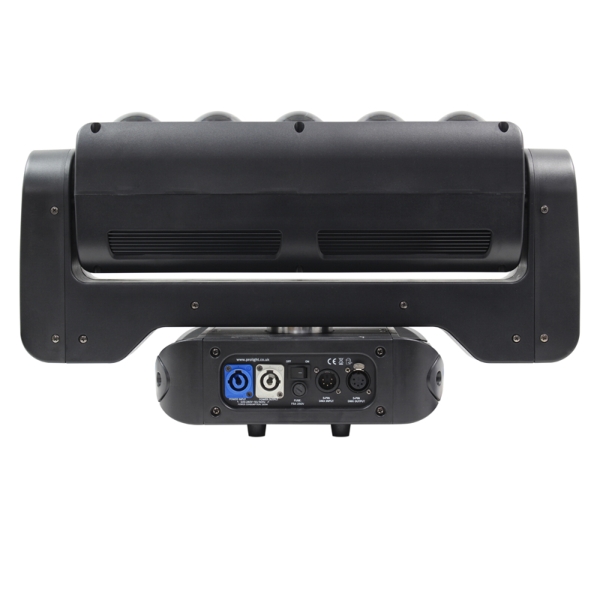

- PowerCON input/output
- 5-Pin XLR input/output
- Fan cooled

Equinox Switchblade Specifications

- Power consumption: 265W
- Power supply: 100~240V, 50/60Hz
- Fuse: F5A 250V
- Dimensions: 305 x 532 x 183mm
- Weight: 11.2kg

Further Product Information Below

Equinox Switchblade Manual (PDF)

Equinox Switchblade Certification (PDF)
