DBX CT-3 Advanced Cable Tester

DBX CT-3 Advanced Cable Tester Features

- This useful gadget gives you the ability to evaluate a large variety of your cables with ease
- It saves fustration, and time - you know which of your cables are good or bad!

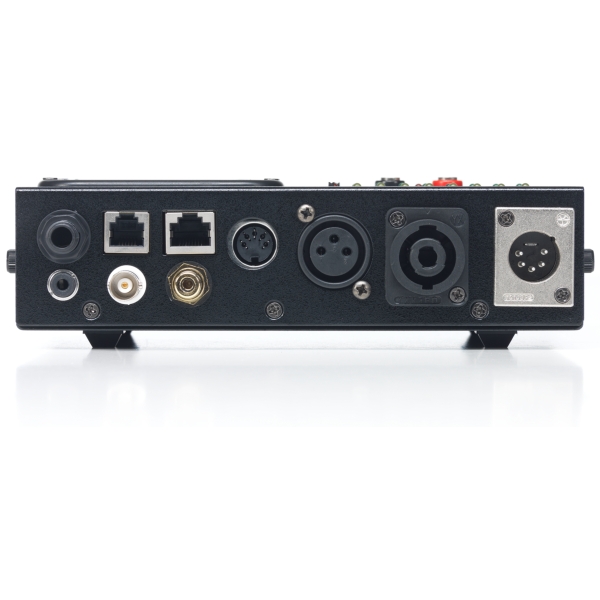

- Offers many common connectors such as RJ45, RJ11, MIDI, Speaker Twist, XLR, RCA Phono, BNC, DIN, TRS, TS, DMX, & Banana
- Can be split into 2 parts, a SENDER and RECEIVER so preinstalled and long cables can be tested
- Well illuminated LED indicators and a simple rotary dial - quickly establish whether your cables are functioning properly
- Tests up to 8-pin cables
- 2 piece chassis for testing installed cables
- Test Tone Generator
- Allows connection between different format connectors with ease
- 'Banana' connector continuity tester with beeper and LED indicator
- Super-rugged construction for durability and longer life
- 2x DMX (5-pin) connectors for testing of 5 pin to pin connections
- 2x BNC connectors for testing of 2 pin to pin connections
- 2x RCA Phono connectors for testing of 2 pin to pin connections
- 2x XLR connectors (1 x Male, 1 x Female) for testing of 3 pin to pin connections
- 2x MIDI (5-pin DIN) connectors for testing of 5 pin to pin connections
- 2x Speaker Twist connectors for testing of 4 pin to pin connections
- 2x Banana connectors for testing of 1 pin to pin connections
- 2x ¼-inch (6.3mm) Jack connectors for testing of 3 pin to pin connections
- 2x RJ45 connectors for testing of 8P8C modular connections
- 2x ⅛-inch (3.5mm) Jack connectors for testing of 3 pin to pin connections

DBX CT-2 Cable Tester Specifications

- Power Requirements: 2x 9V battery ( Batteries not included )
- Dimensions: 89 x 37 x 140 mm ( 3.5 x 1.5 x 5.5 inches )

Further Product Information Below

DBX CT-3 Manual (PDF)

DBX CT-3 Quick Reference Guide (PDF)
