Cloud MA80 Mono Mixer Amplifier, 80W @ 4 Ohms

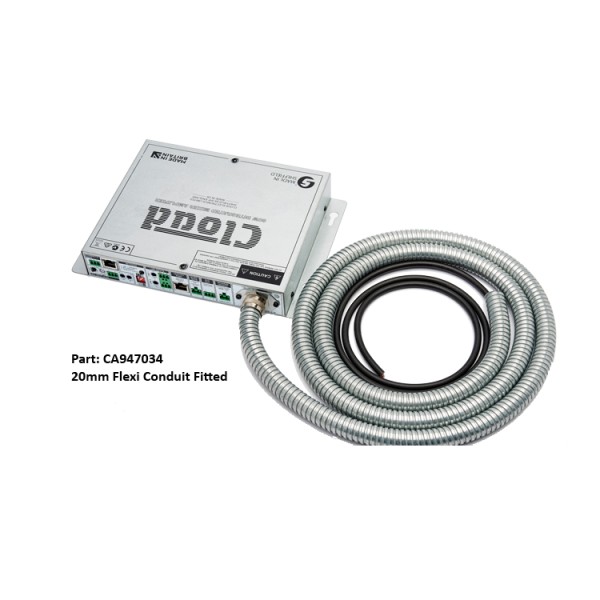

The Cloud MA80 Mono Mixer Amplifier is a compact Mini Amplifier providing 80W Mono Output at 4Ω (low impedance). Designed for integration into commercial audio installations and AV systems where de-centralisation of the system component is an advantage. It is intended as an "install and forget" component and is small enough to be fitted into a wall or ceiling void, or directly adjacent to a projector, flat screen or loudspeaker.
Fitted with a Microphone Input with EQ and input gain adjustment, a further two line inputs, an RL-1 remote wall plate connection, music mute connection and dip switch settings providing Line 1 priority and mic priority switching in addition to switching on/off of the RL-1 functionality.
The Cloud MA80 is powered internally via 100-240V SMPS.

Click Here for Printer Friendly Version

Cloud MA80 Mono Mixer Amplifier, 80W @ 4 Ohms Features

- 1 x 80W Mono 4ohm Output (<1% THD @ Full Output)
- Line 1 over Line 2 Priority
- APD - Auto Wake & Hibernation
- Mic Input with EQ and Input Gain
- Music EQ Plus Optional EQ Card
- Mic Output Level Control + Priority
- Music Mute
- RL-1 Remote Control Interface
- Aux Out
- Dynamic Clip, Thermal & Short Protection
- Integrated Universal Power Supply

Cloud MA80 Mono Mixer Amplifier, 80W @ 4 Ohms Specifications

Line Inputs
- Frequency Response: ±1 dB, 20 Hz to 20 kHz
- THD+N: <0.05% (1 kHz, full power, 22 kHz bandwidth)
- Sensitivity: -12 dBu (195 mV) to +8 dBu (2.0 V)
- Input Gain Control: 20 dB range
- Input Impedance: 47 kohms Headroom 16 dB
- Noise: <-95 dBMusic
- Equalisation:
  - LF: ±10 dB @ 50 Hz
  - HF: ±10 dB @ 10 kHz

Microphone Input
- Frequency Response: -3 dB @ 100 Hz (filter) to 20 kHz ±1 dB
- THD+N: <0.05% (1 kHz, full power, 22 kHz bandwidth)
- Gain: 10 dB to 50 dB
- Input Impedance: 2.7 kohms (balanced)
- Headroom: 16 dB
- Noise: EIN -127 dB (22 kHz bandwidth, Rs = 150 ohms)
- Phantom Power: +12 V (internal jumper)
- Mic Equalisation:
  - LF: ±12 dB @ 100 Hz
  - HF: ±12 dB @ 5 kHz

Main Output
- Output Power (1 kHz continuous sine wave): 80 W into 4 ohms, 1 kHz continuous sine wave
- High Pass Filter: -3 dB @ 65 Hz (selectable by internal jumper)

Auxiliary Output
- Max output level: 0 dBu (0.775 Vrms)

General
- Power Supply (internal): Universal type, 100 V to 240 V, 50 to 60 Hz
- Power consumption
  - Standby: 0.88 W, 7.35 VA
  - Idle: 5.41 W, 13.39 VA
  - 1/8th Power (4 ohms): 17.4 W, 31.75 VA
  - 1/3rd Power (4 ohms): 30.4 W, 50.58 VA
- Heat Loss
  - Standby: 3.2 KJ/hr (3.0 BTU/hr)
  - Idle: 19.5 KJ/hr (18.5 BTU/hr)
  - 1/8th Power (4 ohms): 26.3 KJ/hr (24.9 BTU/hr)
  - 1/3rd Power (4 ohms): 27.0 KJ/hr (25.6 BTU/hr)
- Amplifier protection: Fixed level signal limiter. Protection against DC, PSU overcurrent, amplifier overcurrent, over-temperature. Resettable internal breaker (no fuses)
- Cooling: Natural convection
- Dimensions(w x h x d): 260 x 41 x 180 mm, 10.24 x 1.61 x 7.09 inches
- Weight: 1.35 kg

Further Product Information Below

Cloud MA80EK Manual (PDF)

Cloud MA80EK Data Sheet (PDF)
