Cloud MA60T Mixer Amplifier, 60W @ 4 Ohms or 70V / 100V Line

Cloud MA60T Mixer Amplifier Features

- Four-input mixer-amplifier with integral 50w, 70/100v Internal Transformer fitted.
- Gain trims on all inputs
- Electronically-balanced mic input
- 3.5 mm jack input (LINE 2) for MP3 player, laptop, etc.
- Overall HF & LF EQ adjustment
- Short-to-ground access connector or VOX-triggered paging on mic input
- Selectable LINE 4 priority over other music inputs
- Music Mute control input (NO or NC) for interface to emergency system
- Compatible with standard Cloud remotes - RL-1 (music level) and RSL-4 (music level and source selection)
- Electronically-balanced pre-amp output
- Transformer-isolated auxiliary output with independent mic and music level control - for use with telephone MOH systems
- Aux output source selection (internal jumper) - fixed source or follow main output

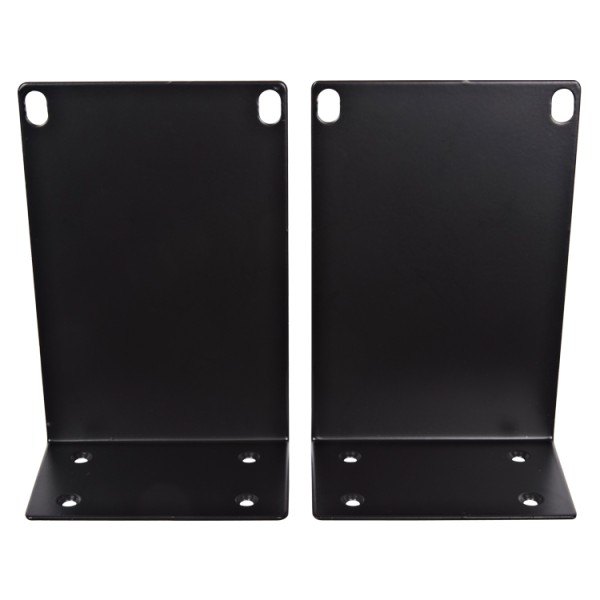

- Optional Rack Kits (RE-S & RE-L)

Cloud MA60T Mixer Amplifier Specifications

Line Inputs:
- Frequency Response:
  - Low-Z output: +0/-1 dB, 20 Hz to 20 kHz (65 Hz filter out)
  - 100/70/50 V-line output (with CXL-50T transformer fitted): +0/-3 dB, 20 Hz to 20 kHz (65 Hz filter out)
- Distortion:
  - Low-Z output: <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth)
  - High voltage output: <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth)
- Sensitivity: 195 mV (-12 dBu) to 2.0 V (+8 dBu)
- Input Gain Control: 20 dB range
- Input Impedance: 47 kΩ
- Headroom: >20 dB
- Noise: -93 dB, 22 Hz to 22 kHz; measured at speaker output, relative to full power

Microphone Inputs:
- Frequency Response:
  - Low-Z output: -3 dB @ 100 Hz (3rd. order filter); -1 dB @ 20 kHz
  - High voltage output: -3 dB @ 100 Hz (3rd. order filter); -2 dB @ 20 kHz
- Distortion: <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth)
- Gain: 40 dB range
- Input Impedance: >2 kΩ (balanced)
- Phantom Power: 15 V, switchable per-input by jumpers
- Headroom: >20 dB
- Noise: -127 dB EIN, 22 Hz to 22 kHz (150 Ω)

Outputs:
- Output Power:
  - Low impedance output: 60 W @ 1 kHz & <0.07% THD+N
  - 100/70/50 V-line output: 50 W @ 1 kHz & <0.07% THD+N
- Equalisation: HF: ±10 dB @ 5 kHz LF: ±10 dB @ 100 Hz
- Protection: Dynamic level signal limiter max gain reduction of 20 dB, Thermal protection, IV limiting & short circuit protection, Switch on delay

Electrical:
- Power input: 230 V, 115 V, 100 V versions available
- Fuse Rating: 230/120 V - T2A H
- Fuse Type: 20 mm x 5 mm
- Cooling: Convection cooled, vents top and bottom

Physical:
- Dimensions (W x H x D): 213 x 88 (2U) x 278 mm (plus connectors and knobs)
- Weight: 4.6 kg

Further Product Information Below

Cloud MA60TEK Manual (PDF)

Cloud MA60TEK Data Sheet (PDF)

Cloud MA60T Mixer Amplifier Compatibility

- Cloud RL-1W & RL-1B - Remote Volume Level Control Plate in Black or White
- Cloud RL-1AW & RL-1AB - USA Remote Volume Level Control
- Cloud RL-1DW & RL-1DB - USA Remote Volume Level Control (Decora)
- Cloud RL-1x8 - Remote Volume Level Control Plate
- Cloud RSL-4W & RSL-4B - Remote Source / Volume Level Select Plate
- Cloud RSL-4AW & RSL-4AB - USA Remote Source / Volume Level Select Plate
- Cloud XLR-M1W & XLR-M1B - XLR Input Module - White / Black - Male
- Cloud XLR-F1W & XLR-F1B - XLR Input Module - White / Black - Female
