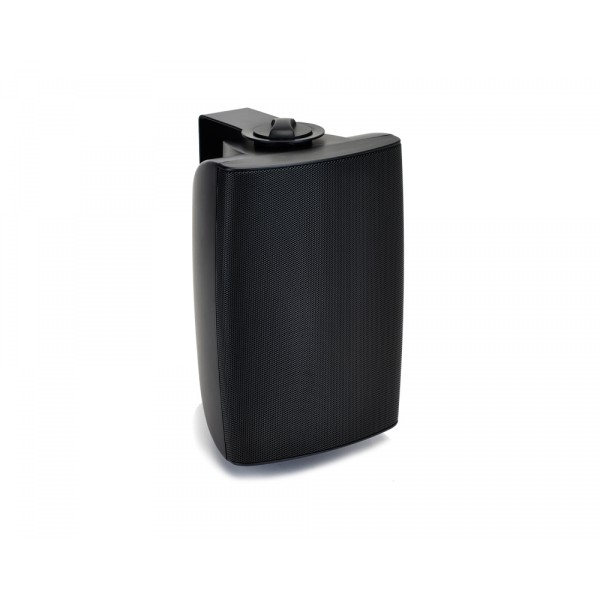

Cloud CS-S6B 6.5 inch Surface Mount Speakers, 50W @ 16 Ohms or 70V / 100V Line, IP55 - Black

Cloud CS-S6B 6.5 inch Surface Mount Speakers, 50W @ 16 Ohms or 70V / 100V Line, IP55 - Black Features

- 6.5 inch Polypropylene Woofer with rubber surround.
- 1 inch Silk Dome Tweeter with phase plug.
- 2-way drivers offering consistent dispersion across broad frequency ranges.
- Available in Black or Black.
- IP 55 Rated.
- Accessible high-impedance or low impedance switch settings.
- Removable logos to allow for discrete use.
- 100v - 32W, 16W, 8W, 4W or 50W @ 16 Ω
- 70v - 32W, 16W, 8W, 4W, 2W or 50W @ 16 Ω
- Nom SPL: 91dB@1w/1mt Max SPL: 108db@1mt.
- Accessories: U Mountingbracket, male euroblock, rubber port-plug.
- Dims: 304.0mm x 218.0mm x 193.5mm.
- Weight: 3.6kg net, 4.4kg gross.
- Bracket Mount Holes: 206.5mm

Cloud CS-S6B 6.5 inch Surface Mount Speakers, 50W @ 16 Ohms or 70V / 100V Line, IP55 - Black Specifications

General
- Response (f3): 90 Hz -20 kHz
- Response (f10): 70 Hz -20 kHz
- Impedance: 16 Ω
- Sensitivity (2.83 V/1 m): 88 dB
- Sensitivity (1 W/1 m): 91 dB
- Power handling: 50 W
- Maximum SPL: 108 dB
- Average coverage angle (2 kHz -10 kHz): 120°
- Transformer taps (100 V): 32, 16, 8, 4 W
- Transformer taps (70 V): 32, 16, 8, 4, 2 W
- Transformer taps (25 V): 4, 2, 1, 0.5, 0.3 W
- Tweeter: 1inch polypropylene with rubber surround
- Woofer: 6.5 inch treated paper with rubber surround
- Acoustic description: Musical, with high intelligibility. Prioritize perceived bass response over sensitivity.
- Input: Euroblock
- Included Accessories: U-bracket, male Euroblock, rubber port plug

Physical & Dimensions
- Packaging: 1 per box
- Net weight/Gross weight: 3.6 kg (7.9 lb) / 4.4 kg (9.7 lb)
- Bracket mounting hole spacing: 206.5 mm
- Finish: Black
- Conformance: UL1480 / 2043 planned, RoHS, CE approved, IP55

Further Product Information Below

Cloud CS-S6B Manual (PDF)

Cloud CS-S6B Data Sheet (PDF)
