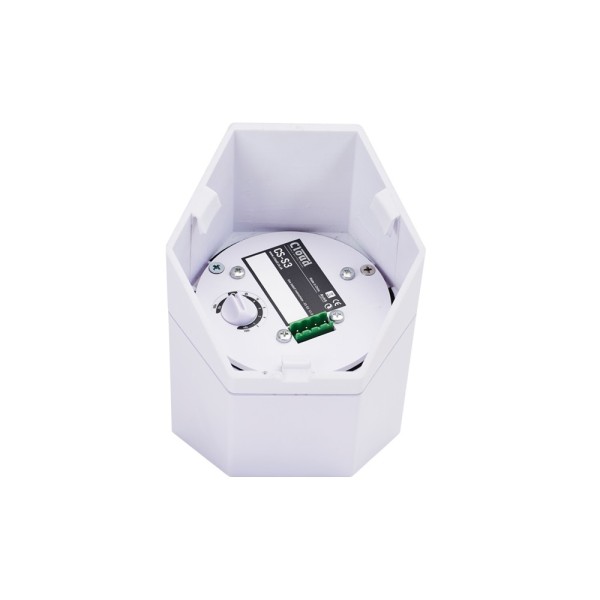

Cloud CS-S3W Surface Mount Speakers, 16W @ 16 Ohms or 25V / 70V / 100V Line - White

Name: Cloud CS-S3W Surface Mount Speakers, 16W @ 16 Ohms or 25V / 70V / 100V Line - White
Brand: Cloud
SKU: 0721405345052
Price: 86.28 GBP
Availability: InStock

For Install and Dealer Volume prices please contact us.

Need to Price Match it ? Click Here to see what we can do.

Price Each £71.90 (£86.28 Including VAT at 20%)

REF: JP33116

Quantity:

Cloud CS-S3W Surface Mount Speakers, 16W @ 16 Ohms or 25V / 70V / 100V Line - White

The Cloud CS-S3W is a 3 inch full range surface mount speaker, offers the industry's most innovative omnidirectional mounting system. The CS-S3 offer consistent dispersion across broad frequency ranges, available in Black or White and removable logos ensure Cloud speakers can be used discretely or prominently in almost any venue. All models are sonically matched with the C series for uniform acoustics. The CS-SUB8 compliments any model to add deep, impactful bass.
Displayed in a variety of colors as the CS-S3 can be custom painted to match architecture.
Custom built for quality performance Cloud speakers are designed and tested to a superior standard by engineers who care and include a comprehensive 5-year commercial warranty.

Click Here for Printer Friendly Version

Cloud CS-S3W Surface Mount Speakers, 16W @ 16 Ohms or 25V / 70V / 100V Line - White Features

- 3 inch Polypropylene Woofer with Rubber Surround with Phase Plug.
- 2-way drivers offering consistent dispersion across broad frequency ranges.
- Omidirectional mounting system.
- Available in Black or White.
- Removable logos to allow for discrete use.
- 100v - 16W, 8W, 4W, 2W or 16W @ 16 Ω
- 70v - 16W, 8W, 4W, 2W, 1W or 16W @ 16 Ω
- 25v - 2W, 1W, 0.5W, 0.3W, 0.2W or 16W @ 16 Ω
- Nom SPL: 82dB@1w/1mt Max SPL: 94db@1mt.
- Dims: 205.0mm x 111.5mm.
- Weight: 1.2kg net, 1.7kg gross.
- Bracket Mount Holes: 50.0mm

Cloud CS-S3W Surface Mount Speakers, 16W @ 16 Ohms or 25V / 70V / 100V Line - White Specifications

- Description: 3 inch full range surface mount, tool-free omni bracket
- Response (f3): 140 Hz -20 kHz
- Response (f10): 90 Hz -20 kHz
- Impedance: 16 ohm
- Sensitivity (2.83 V/1 m): 79 dB
- Sensitivity (1 W/1 m): 82 dB
- Power handling: 16 W
- Maximum: SPL 94 dB
- Average coverage angle: (2 kHz -10 kHz) 90°
- Transformer taps: (100 V) 16, 8, 4, 2, 1 W
- Tweeter: N/A
- Woofer: 3.0 inch polypropylene with rubber surround and phase plug
- Input: 4 pin Euroblock
- Acoustic Description: Musical, with high intelligibility. Prioritise perceived bass response over sensitivity.
- Included accessories: Omni bracket, male Euroblock
- Available colours: Black, white
- Packaging: 1 per box, cardboard inner packaging, single instruction sheet
- Dimensions: 205.0mm x 111.5mm.
- Net weight/Gross weight: 1.2 kg (2.65 lb) / 1.7 kg (3.75 lb)
- Bracket: mounting hole spacing 50.8 mm / 2 in
- Conformance: UL1480 / 2043 planned, RoHS, CE approved

Further Product Information Below

Cloud CS-S3W Manual (PDF)

Cloud CS-S3W Data Sheet (PDF)
