Cloud CDI-CV2 Dante Network Expansion Card for Cloud CV2500 Amplifiers

Name: Cloud CDI-CV2 Dante Network Expansion Card for Cloud CV2500 Amplifiers
Brand: Cloud
Price: 369.97 GBP
Availability: InStock

For Install and Dealer Volume prices please contact us.

Need to Price Match it ? Click Here to see what we can do.

Price Each £308.31 (£369.97 Including VAT at 20%)

REF: JP104746

Quantity:

Cloud CDI-CV2 Dante Network Expansion Card for Cloud CV2500 Amplifiers

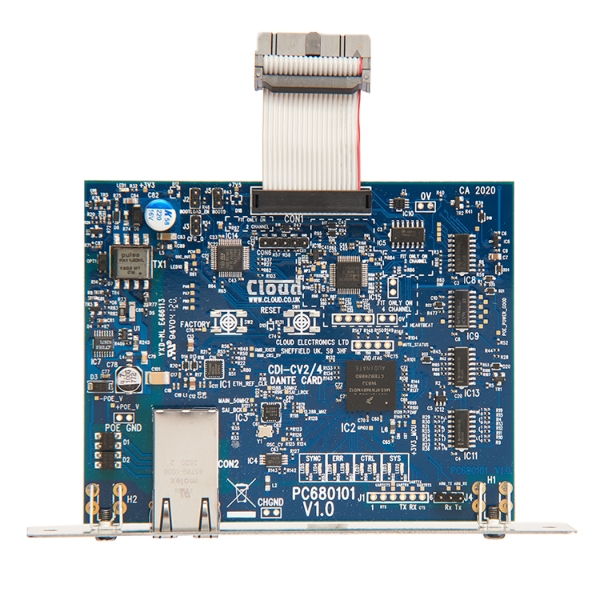

The Cloud CDI-CV2 Dante Network Expansion Card for Cloud CV2500 Amplifiers is a retrofit option exclusively for the Cloud CV Series digital power amplifiers, and allows the amplifier to derive its inputs directly from an Audinate Dante audio network.
This card provides up to two channels of low-latency digital audio via a Dante or AES67 network, channel assignment is made using Audinate's Dante Controller software. The card also runs Dante v4.2 firmware, which gives compatibility with any version of Dante Domain Manager (DDM).

Click Here for Printer Friendly Version

Cloud CDI-CV2 Dante Network Expansion Card for Cloud CV2500 Amplifiers Features

- Fits rear panel expansion bay: adds two digital inputs to amplifier
- Subset configured by amplifier's existing browser interface
- Externally powered via PoE
- Compatible with Dante Controller and Dante Domain Manager
- LED indication of network speed and Link activity
- Supports 16/24/32bit PCM sample sizes

Cloud CDI-CV2 Dante Network Expansion Card for Cloud CV2500 Amplifiers Specifications

- Dante channels: 2
- Simultaneous receive flows: 1 or 2
- Sample rates:
  - Dante: 48/44.1/88.2/96 kHz
  - AES67: 48 kHz
- Encoding: 16/24/32-bit PCM (default 24-bit PCM)
- Data rates: 100 Mb/s
- Connectors: 1x RJ45
- Secondary port modes: None
- LEDs: Network speed, Link status
- Power consumption: 0.7W
- Software Compatibility:
  - Configuration: CV Series internal web browser
  - Routing: Audinate Dante Controller
  - Security and Domain management: Audinate DDM

Further Product Information Below

Cloud CDI-CV2 Manual (PDF)

Cloud CDI-CV2 Data Sheet (PDF)
