Cloud CDI-CA2 Dante Network Expansion Card for Cloud CA2250 and CA2500 Amplifiers

Name: Cloud CDI-CA2 Dante Network Expansion Card for Cloud CA2250 and CA2500 Amplifiers
Brand: Cloud
Price: 352.75 GBP
Availability: InStock

For Install and Dealer Volume prices please contact us.

Need to Price Match it ? Click Here to see what we can do.

Price Each £293.96 (£352.75 Including VAT at 20%)

REF: JP104743

Quantity:

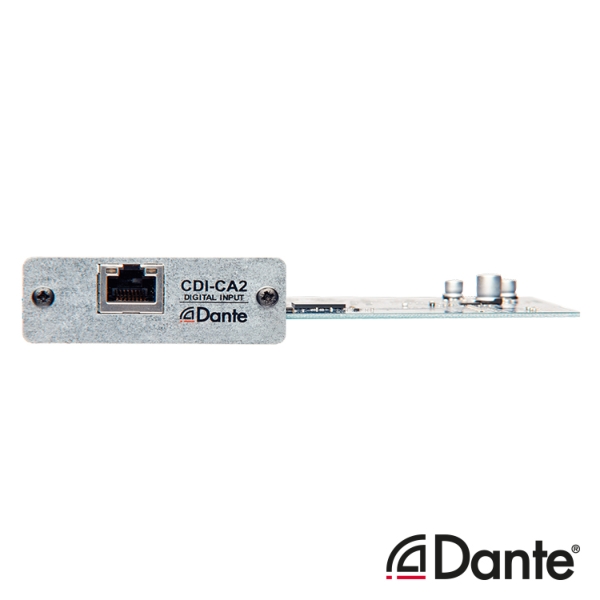

Cloud CDI-CA2 Dante Network Expansion Card for Cloud CA2250 and CA2500 Amplifiers

The Cloud CDI-CA2 Dante Network Expansion Card for Cloud CA2250 and CA2500 Amplifiers is a retrofit option for all CA Series digital power amplifiers, and allows the amplifier to accept inputs directly from an Audinate Dante audio network.
This card provides up to two channels of low-latency digital audio via a Dante or AES67 network, channel subscriptions are made using Audinate's Dante Controller software. The card also runs Dante v4.2 firmware, which gives compatibility with Dante Domain Manager (DDM).

Click Here for Printer Friendly Version

Cloud CDI-CA2 Dante Network Expansion Card for Cloud CA2250 and CA2500 Amplifiers Features

- Fits rear panel expansion bay: adds two digital inputs to amplifier
- Externally powered via PoE
- Compatible with Dante Controller and Dante Domain Manager
- LED indication of network speed and Link activity
- Supports 16/24/32bit PCM sample sizes
- Supports 44.1/48/88.2/96kHz sample rates

Cloud CDI-CA2 Dante Network Expansion Card for Cloud CA2250 and CA2500 Amplifiers Specifications

- Dante channels: 2
- Simultaneous receive flows: 1 or 2
- Sample rates:
  - Dante: 48/44.1/88.2/96 kHz
  - AES67: 48 kHz
- Encoding: 16/24/32-bit PCM (default 24-bit PCM)
- Data rates: 100 Mb/s
- Connectors: 1 x RJ45
- Secondary port modes: (not applicable)
- LEDs: Network speed, Link status
- Software Compatibility:
  - Configuration and Routing: Audinate Dante Controller
  - Security and Domain management: Audinate DDM

Further Product Information Below

Cloud CDI-CA2 Manual (PDF)

Cloud CDI-CA2 Data Sheet (PDF)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Cloud CDI-CA2 Dante Network Expansion Card for Cloud CA2250 and CA2500 Amplifiers

Related products:

Cloud CA2250 2 Channel Power Sharing Amplifier, 250W @ 4/8 Ohm or 70V/100V Line

Cloud CA2500 2 Channel Power Sharing Amplifier, 500W @ 4/8 Ohm or 70V/100V Line

UTP CAT5E Cable 2m Snag-less

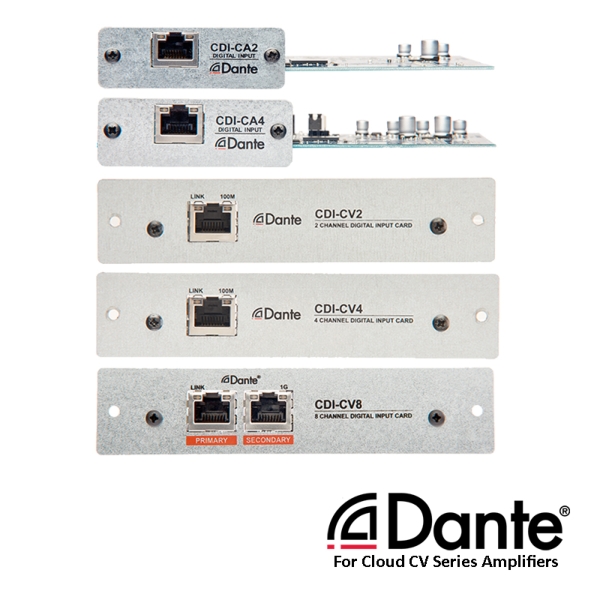

Cloud CDI-CA4 Dante Network Expansion Card for Cloud CA4250 Amplifiers
