Clever Acoustics ZM 122 Rackmount Audio Mixer

Name: Clever Acoustics ZM 122 Rackmount Audio Mixer
Brand: Clever Acoustics
SKU: 0090125501810
Price: 138.17 GBP
Availability: InStock

Price Each £115.14 (£138.17 Including VAT at 20%)

REF: JP92948

Quantity:

Clever Acoustics ZM 122 Audio Mixer, The ZM 122 rackmountable audio mixer from Clever Acoustics is ideal for public address and background music systems where multiple inputs are required. Suitable for use in a wide range of applications, the ZM 122 offers the user a clean, simple control surface while retaining a large number of features for complex audio systems. The ZM 122 mixer has 9 input channels, each with adjustable volume controls. Six of the channels are microphone inputs with XLR 1/4" combo sockets, the other three are stereo line level inputs. Adding to the features, the ZM 122 has a 3 band EQ, mono out and microphone out all in a 1U 19" rack mount unit.

Click Here for Printer Friendly Version

Clever Acoustics ZM 122 Audio Mixer Features

- 3 year warranty
- Six mono channels with combo XLR/Jack input, each with Mic/Mic+ Phantom/Line selector
- Three stereo line level inputs via phono sockets
- Low distortion microphone pre-amplifiers with high dynamic range
- CH level control, signal LED to indicate input signal
- Microphone 1 features adjustable priority override
- Input level control with input signal LED

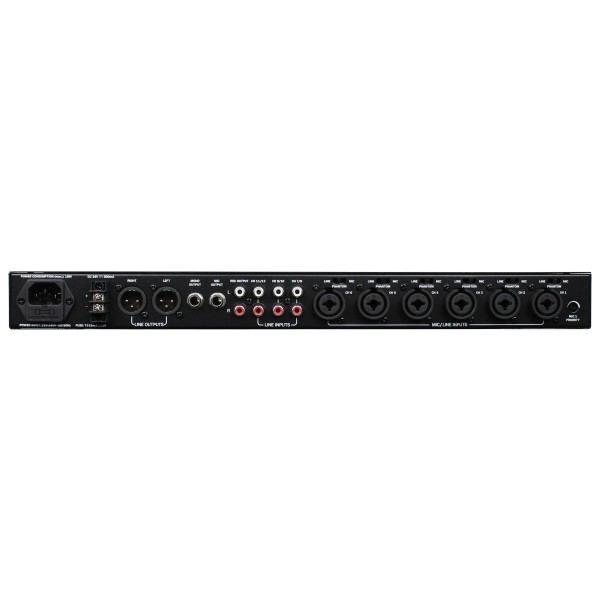

- Stereo line output via balanced XLRs
- Mono output via 6.35mm (¼-inch) unbalanced jack with volume control
- Microphone mix output via 6.35mm (¼-inch) unbalanced jack with volume control
- Microphone mix output via 6.35mm (¼-inch) unbalanced jack with volume control
- Microphone mix output via 6.35mm (¼-inch) unbalanced jack with volume control and on/off switch
- Stereo record output via unbalanced phono sockets
- 3-band EQ for low, mid, high
- Master volume control
- 4-segment LED signal level meters
- AC 220V-240V and DC 24V operating voltage
- 1U 19-inch rackmount chassis with brushed aluminium front panel

Clever Acoustics ZM 122 Audio Mixer Specifications

- Power supply: 220-240V~50/60Hz AC or 24V DC
- Power consumption: 35W

Physical:
- Dimensions: 44 x 484 x 238mm
- Weight: 3.9kg

Further Product Information Below

Clever Acoustics ZM 122 Manual (PDF)

Clever Acoustics ZM 122 CE Certification (PDF)
