Citronic USB2+1 Portable USB Audio Interface - 2 Microphone and 1 Instrument Inputs

Name: Citronic USB2+1 Portable USB Audio Interface - 2 Microphone and 1 Instrument Inputs
Brand: Citronic
Price: 55.18 GBP
Availability: InStock

Price Each £45.98 (£55.18 Including VAT at 20%)

REF: JP108160

Quantity:

Citronic USB2+1 Portable USB Audio Interface - 2 Microphone and 1 Instrument Inputs

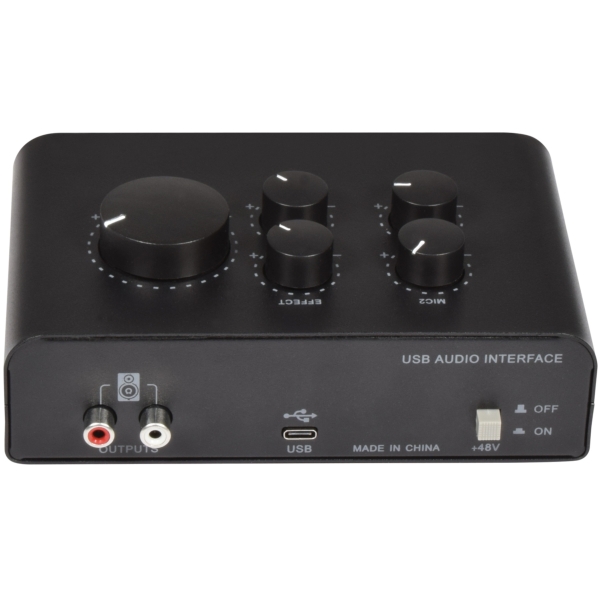

The Citronic USB2+1 Portable USB Audio Interface for a computer-based recording studio. Featuring 2 independent microphone inputs on XLR/jack sockets and a separate 6.3mm instrument input. Each input has a gain control and there is an optional echo effect with separate control. Monitoring is via a stereo 6.3mm headphone jack or L+R RCA line output on the rear of the unit for connecting monitor speakers. Power to the interface and two-way digital audio is connected via a USB type-C socket at the rear. Simple yet versatile operation for project studios and DAW recording setups.

Click Here for Printer Friendly Version

Citronic USB2+1 Portable USB Audio Interface Features

- 2 XLR/jack microphone inputs with gain and mute control
- Separate instrument 6.3mm jack input
- 48kHz sample rate
- Inbuilt echo effect

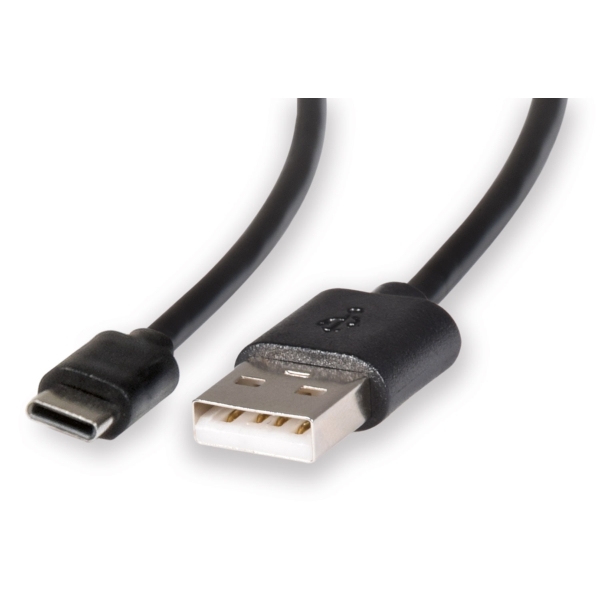

- 1.5m USB type C to A lead supplied

Citronic USB2+1 Portable USB Audio Interface Specifications

- Power supply: 5Vdc (from USB)
- Connection: USB type-C
- Controls:
  - Mic 1
  - Mic 2
  - Instrumet 3
  - Effect
  - Monitor
- Input connections:
  - 2x mic XLR/Jack
  - 1x 6.3mm instrument jack
- Phantom power: +48V switchable to XLR inputs
- Frequency response: 10Hz - 30kHz (-0.5dB)
- Input impedance:
  - Instrument: 1M Ohm
  - Mic: 3k Ohm
- Max. input sound level:
  - Mic or Instrument +2dBu
  - Line +22dBu
- Dynamic range: 100dB (A-weighted)
- Sampling format: 48kHz, 16-bit
- Monitor outputs: Headphones (stereo 6.3mm jack), Line out (L+R RCA)

Physical:
- Dimensions (W x H x D): 160 x 57 x 110 mm
- Weight: 0.529 kg

Further Product Information Below

Citronic USB2+1 Manual (PDF)

Citronic X-PAD Portable Audio Interface/Processor Supplied With

- Citronic X-PAD handheld portable audio device
- USB-C OTG (on-the-go) lead
- XLR to 3.5mm TRS jack microphone lead
- 3.5mm stereo jack lead
