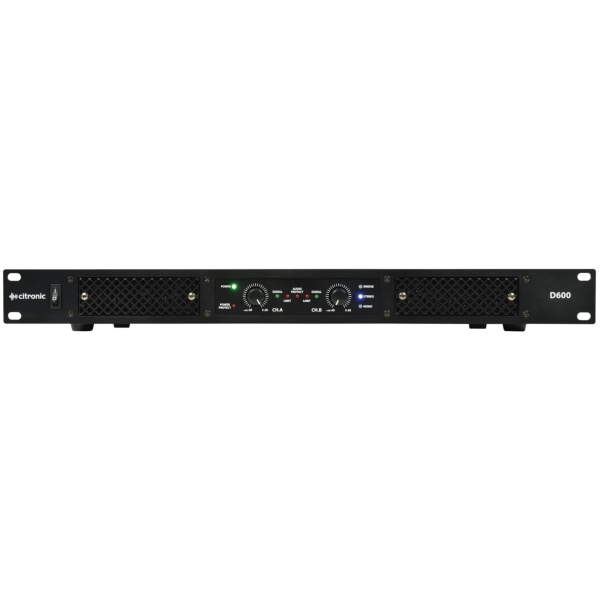

Citronic D600 Class-D Power Amplifier, 2x 300W @ 4 Ohms

Name: Citronic D600 Class-D Power Amplifier, 2x 300W @ 4 Ohms
Brand: Citronic
Price: 223.03 GBP
Availability: InStock

Price Each £185.86 (£223.03 Including VAT at 20%)

REF: JP106800

Quantity:

Citronic D600 Class-D Power Amplifier, 2x 300W @ 4 Ohms

The Citronic D600 Class-D Power Amplifier is a stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets. Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload. Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different confgurations to handle even the most demanding of sound reinforcement duties.

Click Here for Printer Friendly Version

Citronic D600 Class-D Power Amplifier Features

- Cool and efficient operation even at high output
- Compact and lightweight 1U rack format
- Switchable parallel and bridge modes

Citronic D600 Class-D Power Amplifier Specifications

- Power supply: 220-240Vac, 50/60Hz (IEC)
- Fuse: T8A (20 x 5mm)
- Modes:
  - Stereo
  - Parallel (mono)
  - Bridge (mono)
- Input sensitivity: 0.775V - 1.0V - 1.44V switchable
- Low-cut filter: 75Hz switchable

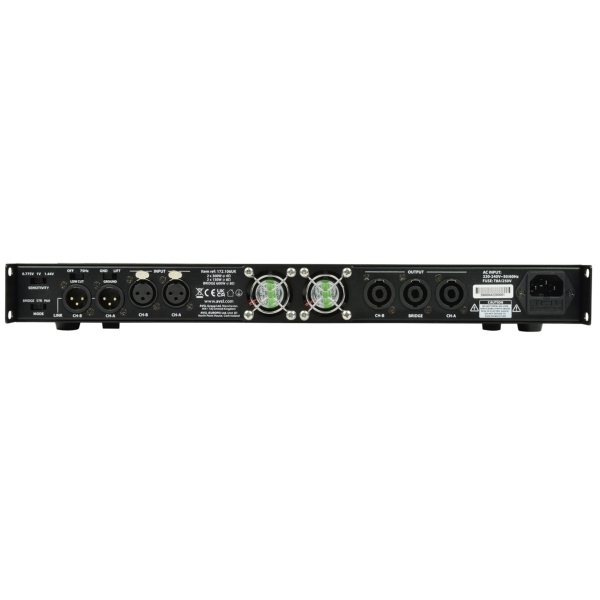

- Input connections: L+R XLR female (L+R XLR male through)
- Output connections: L+R SPK connectors (+1 for bridge mode)
- Power (RMS):
  - 4 Ω: 2x 300 W
  - 8 Ω: 2x 150 W
  - Bridged @ 8 Ω: 1x 600 W

Physical:
- Dimensions: 482 x 245 x 44 mm
- Weight: 3.77 kg

Further Product Information Below

Citronic D600 Manual (PDF)

Citronic D600 Class-D Power Amplifier Supplied With

- D600 class-D stereo power amplifier
- IEC power lead
