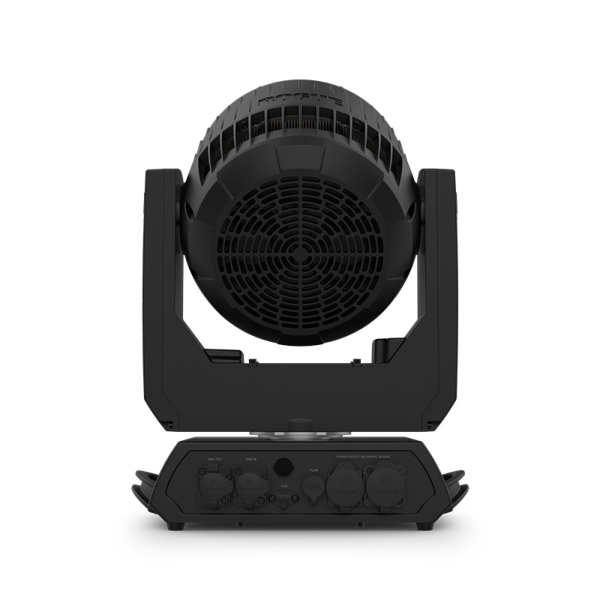

Chauvet Pro Rogue Outcast 2X Wash 400W Moving Head, IP65

Chauvet Pro Rogue Outcast 2X Wash 400W Moving Head Features

- Fully featured IP65 rated RGBW LED yoke wash fixture
- Durable and lightweight aluminum/magnesium alloy body
- Smooth fades with 16-bit individual color and master dimming
- 8° to 66° zoom
- 19 RGBW LEDs, 25W each
- 5-pin DMX input/output connections
- 5 zones of LED control for pixel mapping control
- Fast, smooth pan and tilt movement
- RDM enabled for remote addressing and trouble shooting
- Selectable PWM options for camera operation
- User selectable calibrated white, 7500K default calibration
- 6 distinct dimming modes for advanced control
- Easy to read OLED display with simple, effective menu options
- Simple and complex DMX channel profiles for programming versatility
- USB-C port for uploading software

Chauvet Pro Rogue Outcast 2X Wash 400W Moving Head Specifications

Optical:
- Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
- Color Temperature (range): 2800 to 10000 K
- Beam Angle: 8° to 36.1°
- Field Angle: 11.8° to 53°
- Cutoff Range: 17.5° to 66.1°
- Zoom Range: 8° to 66.1°
- Lumens:
  - Source: n/a
  - Output: 6,258
- Illuminance:
  - 11.8°: 8,713 lux @ 5 m
  - 53°: 694 lux @ 5 m
- Selectable PWM: 600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects:
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges:
  - Pan: 180°, 360°, 540°
  - Tilt: 90°, 180°, 270°
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Curves: 6
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No

Connections:
- Power Connection: Bare ended to IP65 PowerCON
- Power Input: IP65 PowerCON
- Power Output: IP65 PowerCON
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: DMX, RDM
- DMX Channels: 15, 17, 22, 33, 54, or 56
- Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)

Electrical:
- Power Linking: 10 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 282 W, 1.28 A @ 230 V, 50 Hz

Certification / Qualification:
- CE, MET, FCC, UKCA
- IP Rating: IP65 (temporary wet location)

Physical:
- Exterior Color: Black
- Housing Material: Aluminum/magnesium alloy, High-impact flameretardant polymer
- Dimensions (W x H x D): 303 x 361 x 218 mm (11.92 x 14.1 x 8.58 inches)
- Weight: 10.6 kg (23.4 lbs)

Further Product Information Below

Chauvet Pro Rogue Outcast 2X Wash Manual (PDF)

Chauvet Pro Rogue Outcast 2X Wash Data Sheet (PDF)

Chauvet Pro Rogue Outcast 2X Wash Quick Reference Guide (PDF)

Chauvet Pro Rogue Outcast 2X Wash 400W Moving Head Supplied With

- Chauvet Rogue Outcast R2X Wash IP
- PowerCON power cord
