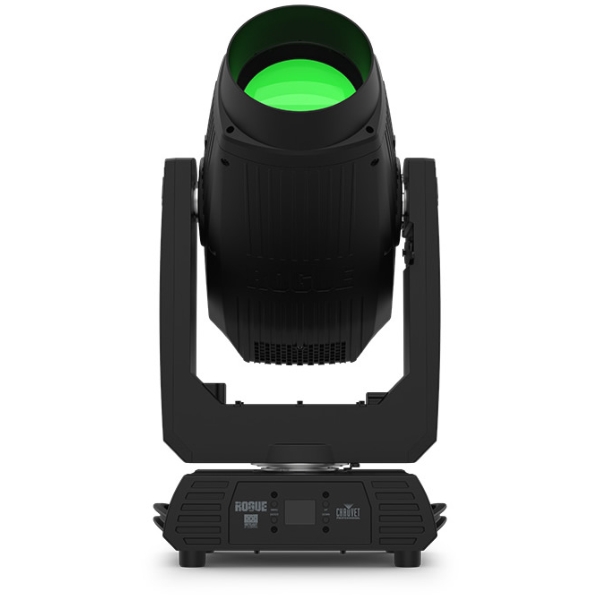

Chauvet Pro Rogue Outcast 2 Hybrid 400W Moving Head, IP65

Chauvet Pro Rogue Outcast 2 Hybrid 400W Moving Head Features

- Fully featured, IP65 rated, high powered Spot/Beam/Wash combination fixture with an Ushio 400 W, 6500 K with 6,000 hour life expectancy lamp, 2 gobo wheels, 2 layerable prisms, large zoom range, and lightweight aluminum/magnesium housing
- Individually controllable and layerable 5 facet linear and 8 facet round prisms for maximizing visual impact
- Frost and beam flattening options for even light distribution
- Tight 0.9° narrow beam angle for focused air effects
- Linear zoom of 0.9° to 20.7° in beam mode, 1.4° to 37.2°in spot mode and 5.4° to 41.7°in wash mode for coverage in any application
- 9 rotating and 13 static gobos for massive visual effect
- DMX and RDM protocol control
- True 1 compatible power input
- Easy to read OLED display with simple, effective menu options
- Simple and complex DMX channel profiles for programming versatility
- USB-C port for uploading software

Chauvet Pro Rogue Outcast 2 Hybrid 400W Moving Head Specifications

Optical:
- Light Source: Ushio NSL-400L W lamp, 8000 K, 6,000 hours life expectancy
- Colour Temperature (at full): 7009K
- Lumens - Output: 16,033
- CRI: 86.1
- Beam Angle:
  - Beam: 0.9° to 6.7°
  - Spot: 1.4° to 14.5°
  - Wash: 5.4° to 32.1°
- Field Angle:
  - Beam: 1.7° to 18.1°
  - Spot: 2.8° to 30°
  - Wash: 9.5° to 39.4°
- Cutoff Angle:
  - Beam: 2.1° to 20.7°
  - Spot: 3.5° to 37.2°
  - Wash: 11.9° to 41.7°
- Zoom Range
  - Beam: 0.9° to 20.7°
  - Spot:1.4° to 37.2°
  - Wash: 5.4° to 41.7°
- Illuminance:
  - Beam @ 0.9°: 180,594 lux @ 15 m
  - Beam @ 20.7°: 2,158 lux @ 15 m
  - Spot @ 1.4°: 790,297lux @ 5 m
  - Spot @ 37.2°: 6,787 lux @ 5 m
  - Wash @ 9.1°: 30,289 lux @ 5 m (Wash mode)
  - Wash @ 41.7°: 1,309 lux @ 5 m (Wash mode)

Dynamic Effects:
- Pan and Tilt: 540°/260°
- Pan and Tilt Ranges:
  - Pan: 540°, 360°, 180°
  - Tilt: 260°, 180°, 90°
- Colours: 13 + White, split colours, continuous scroll at variable speeds
- Gobos:
  - Gobo Wheel 1: 9 + open (9 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  - Gobo Wheel 2: 13 + open (13 metal), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating): 16 mm (outside), 12 mm (image), 1.1 mm (max. thickness)
- Dimmer: Motorized
- Shutter/Strobe: Motorized
- Zoom: Motorized
- Focus: Motorized
- Frost: Motorized
- Prism:
  - 1: 6 Facets, motorized, rotating
  - 2: 8 Facets, motorized, rotating
- Move-in-Black: Yes

Connections:
- Power Connection: Bare-wired to PowerCON IP65
- Power Input: PowerCON IP65
- Data Connectors: 5-pin IP rated
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: DMX, RDM
- DMX Channels: 20 or 25
- Modes/Personalities: 2 personalities (20, 25)

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 568 W, 2.53 A @ 230 V, 50 Hz

Certification / Qualification:
- CE, MET, CB, UKCA
- IP Rating: IP65, temporary outdoor/wet use
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Physical:
- Exterior Color: Black
- Housing Material: Aluminum alloy, Aluminum diecast, High-impact
- Flame-retardant Polymer
- Dimensions (W x H x D): 366 x 705 x 255 mm (14.41 x 27.76 x 10.04 inches)
- Weight: 24.7 kg (54.4 lbs)

Further Product Information Below

Chauvet Pro Rogue Outcast 2 Hybrid Manual (PDF)

Chauvet Pro Rogue Outcast 2 Hybrid Data Sheet (PDF)

Chauvet Pro Rogue Outcast 2 Hybrid Quick Reference Guide (PDF)

Chauvet Pro Rogue Outcast 2 Hybrid 400W Moving Head Supplied With

- Chauvet Rogue Outcast 2 Hybrid
- PowerCON IP65 power cord
- 2 Omega brackets with mounting hardware
