Chauvet Pro Ovation GR1 Gobo Rotator, IP65

Name: Chauvet Pro Ovation GR1 Gobo Rotator, IP65
Brand: Chauvet Pro
SKU: JP99977
Price: 253.81 GBP
Availability: InStock

List Price Displayed - Need a better Price Click Here to Register for a login or give us a call

Price Each £211.51 (£253.81 Including VAT at 20%)

REF: JP99977

Quantity:

Chauvet Pro Ovation GR1 Gobo Rotator, IP65

The Chauvet Pro Ovation GR1 Gobo Rotator is an IP65 outdoor rated gobo rotator for the Ovation E-260WW IP. It can rotate continually in either direction as slow as 0.047 RPM (17 degrees per min), all the way up to 21 RPM. Power and control for this unique gobo rotator are delivered from the dedicated port on the Ovation E-260WW IP, and its fully indexable via the unit's DMX personality. The rotator can hold two B-size gobos that counter rotate.

Click Here for Printer Friendly Version

Chauvet Pro Ovation GR1 Gobo Rotator Features

- IP65 rated gobo rotator for one single or two counter-rotating gobos
- Fully controllable via the Ovation E-260WW IP control personalities
- Variable speed, bi-directional 0.047-21 RPM (17°- 7,560° per minute) standard rotation
- Fully indexable positioning via DMX
- Dedicated power/control supplied by the Ovation E-260WW IP
- Stepper motor driven for ultra-quiet and super smooth movement without stalling or stuttering

Chauvet Pro Ovation GR1 Gobo Rotator Specifications

Dynamic Effects
- Gobos size: B (metal, glass or effect)
- Effects: CW or CCW Rotation, indexing, infinite rotation at variable speeds
- Speed Range: 0.047 - 21 RPM (17° - 7,560° per minute)

Construction / Physical
- Dimensions: 10.9 x 4.7 x 2.2 in (277.5 x 120.5x 56.9 mm)
- Weight: 2.4 lb (1.2 kg)
- Exterior Color: Black
- Housing Material: Aluminum die-cast

Connections
- Power Connection: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
- Data Connectors: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
- Cable Length (power/data): 19 in/483 mm

Control
- Control Protocol: DMX
- DMX Channels: 1

Electrical
- Input Voltage: 24 VDC, 372 mA (via Ovation E-260WW IP)

Certifications / Qualifications
- CE
- IP Rating: IP65, temporary outdoor/wet use
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Further Product Information Below

Chauvet Pro Ovation GR1 Quick Reference Guide (PDF)

Chauvet Pro Ovation GR1 Gobo Rotator Supplied With
- Ovation GR-1 IP
- Power & Data Control Cable

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Chauvet Pro Ovation GR1 Gobo Rotator, IP65

Related products:

Chauvet Pro Ovation E-260WW Warm White Light Engine Only, Black - 230W - NO LENS TUBE

Chauvet Pro Ovation E-260CW Cool White Light Engine Only, Black - 230W - NO LENS TUBE

Chauvet Pro Ovation E-260WWWHT Warm White Light Engine Only, White - 230W - NO LENS TUBE

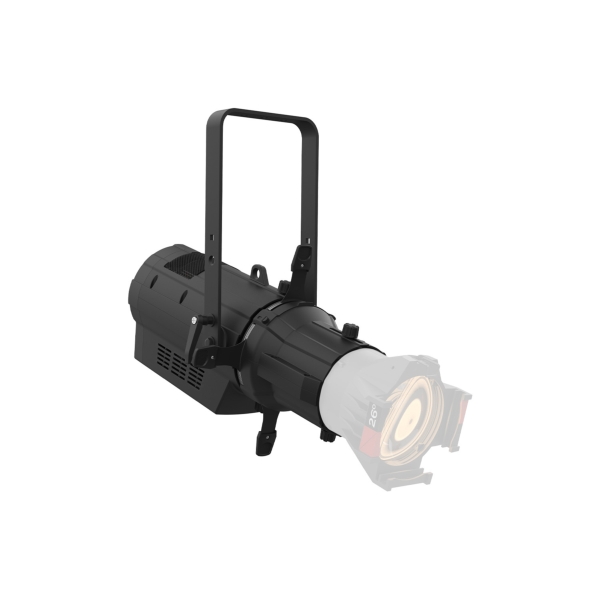

Chauvet Pro Ovation E-260WW IP Warm White IP65 Light Engine Only, Black - 230W - NO LENS TUBE
