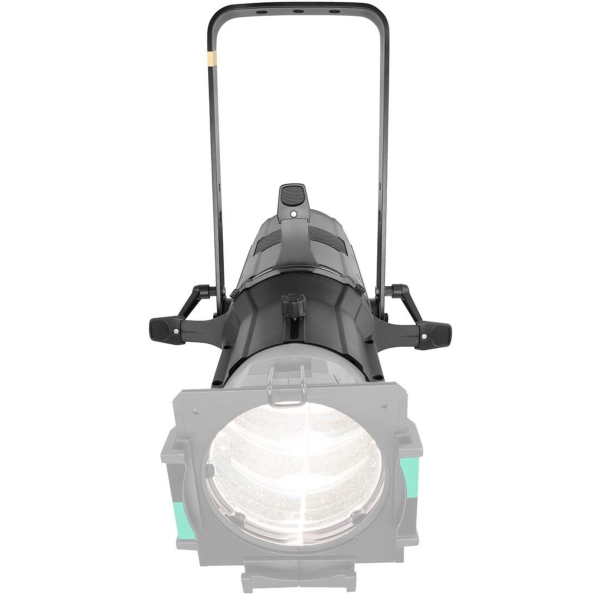

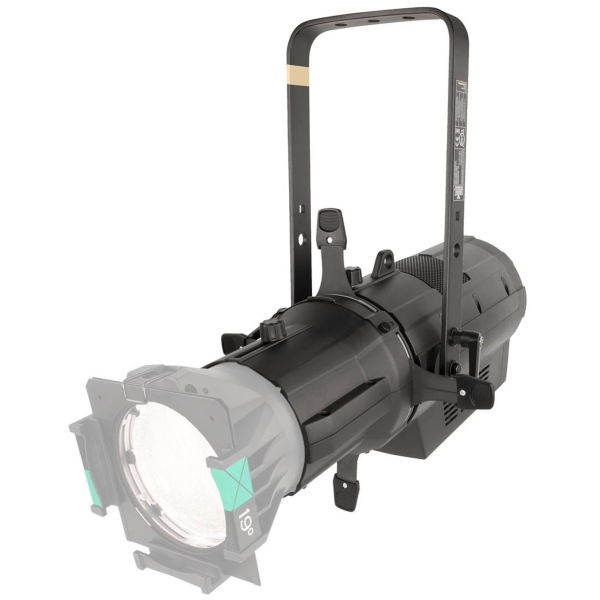

Chauvet Pro Ovation E-160WW - Light Engine Only - NO LENS TUBE

Chauvet Pro Ovation E-160WW Features

- Warm white ERS style fixture with output similar to a tungsten 575 W source
- Draws less than 100 W of power, a true electrical bill reducing fixture
- Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
- Flat, even field of light for superior gobo projection
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Virtually silent operation for use in studio and theater applications

Chauvet Pro Ovation E-160WW Specifications

Optical:
- Light Source: 1 LED (WW) 86 W, (2.3 A), 3031 K, 50,000 hours life expectancy
- Color Temperature (at full: 3031 K
- CRI: 90
- Beam Angle:
  - 5° lens: 4°
  - 10° lens: 6°
  - 14° lens: 8°
  - 19° lens: 12°
  - 26° lens: 16°
  - 36° lens: 20°
  - 50° lens: 31°
  - 15°-30° lens, Narrow: 10°
  - 15°-30° lens, Wide: 15°
  - 25°-50° lens, Narrow: 18°
  - 25°-50° lens, Wide: 24°
- Field Angle:
  - 5° lens: 7°
  - 10° lens: 10°
  - 14° lens: 14°
  - 19° lens: 18°
  - 26° lens: 25°
  - 36° lens: 33°
  - 50° lens: 50°
  - 15°-30° lens, Narrow: 16°
  - 15°-30° lens, Wide: 29°
  - 25°-50° lens, Narrow: 28°
  - 25°-50° lens, Wide: 48°
- Dimming Modes: 4
- Illuminance
  - 5° lens: 40,600 lux @ 5 m
  - 10° lens: 20,000 lux @ 5 m
  - 14° lens: 10,814 lux @ 5 m
  - 19° lens: 6,253 lux @ 5 m
  - 26° lens: 3,189 lux @ 5 m
  - 36° lens: 1,918 lux @ 5 m
  - 50° lens: 743 lux @ 5 m
  - 15°-30° lens, Narrow: 11,201 lux @ 5 m
  - 15°-30° lens, Wide: 3,739 lux @ 5 m
  - 25°-50° lens, Narrow: 3,699 lux @ 5 m
  - 25°-50° lens, Wide: 1,424 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects:
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Manual
- Strobe Rate: 0 to 29 Hz
- Color Temperature Presets: Yes
- Dim Curve: 4
- Dim Modes: 4

Construction / Physical:
- Dimensions:
  - Fixture Only: 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
  - 5° lens extended: 42.79 x 14.17 x 14.48 in (1087 x 360 x 368 mm)
  - 10° lens extended: 34.09 x 12.16 x 12.48 in (866 x 309 x 317 mm)
  - 14° lens extended: 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
  - 26° lens extended: 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
  - 15°-30° lens: 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
  - 25°-50° lens: 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
- Weight:
  - Fixture Only: 14.2 lb (6.4 kg)
  - 5° lens: 20 lb (9.1 kg)
  - 10° lens: 18 lb (8.2 kg)
  - 14° lens: 19.6 lb (8.89 kg)
  - 26° lens: 18.4 lb (8.3 kg)
  - 15°-30° lens: 28.2 lb (12.7 kg)
  - 25°-50° lens: 25.8 lb (11.7 kg)
- Exterior Color: Black
- Gobo Size (Optional:
  - A-size: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
  - B-size: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
- Accessory Holder/Gel Frame Size:
  - 5° lens: 14 in (356 mm)
  - 10° lens: 12 in (304 mm)
  - 14° lens: 7.5 in (191 mm)
  - 19°, 26°, 36°, and 50° lens: 6.25 in (159 mm)
  - 15°-30° lens: 7.5 in (191 mm)
  - 25°-50° lens: 7.5 in (191 mm)

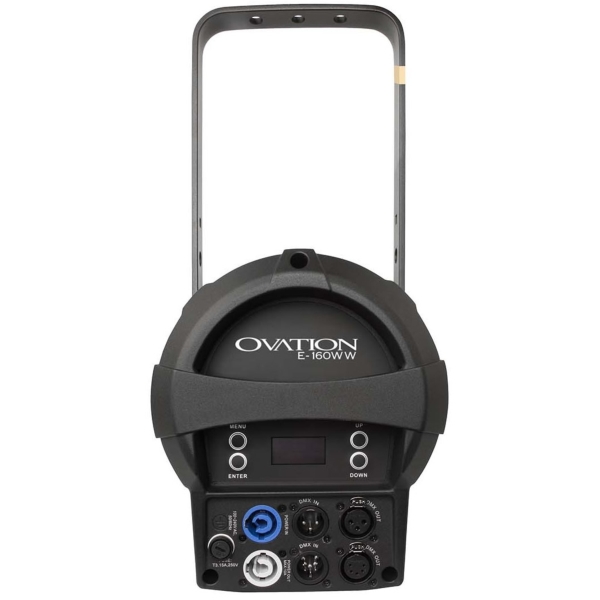

Connections:
- Power Connection: Edison (Local) plug to Neutrik powerCON
- Power Input: Neutrik powerCON
- Power Output: Neutrik powerCON
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: DMX, RDM
- DMX Channels: 1, 2, 3 or 6
- Modes/Personalities: 4 personalities (1, 2, 3, 6)

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 15 units @ 120 V; 26 units @ 208 V; 28 units @ 230 V; 30 units @ 240 V
- Power and Current: 101 W, 0.86 A @ 120 V, 60 Hz
- Power and Current: 100 W, 0.51 A @ 208 V, 60 Hz
- Power and Current: 99 W, 0.47 A @ 230 V, 50 Hz

Certifications / Qualifications:
- CE, MET, FCC
- IP Rating: IP20, dry location

Further Product Information Below

Chauvet Pro Ovation E 160 WW Manual (PDF)

Chauvet Pro Ovation E 160 WW Quick Reference Guide (PDF)

Chauvet Pro Ovation E 160 WW Photometrics (PDF)

Chauvet Pro Ovation E-160WW Supplied With

- Ovation E-160WW
- Neutrik powerCON power cord

Please Note: This listing includes the Light Engine only. The Lens Tube and accessories are sold separately.
