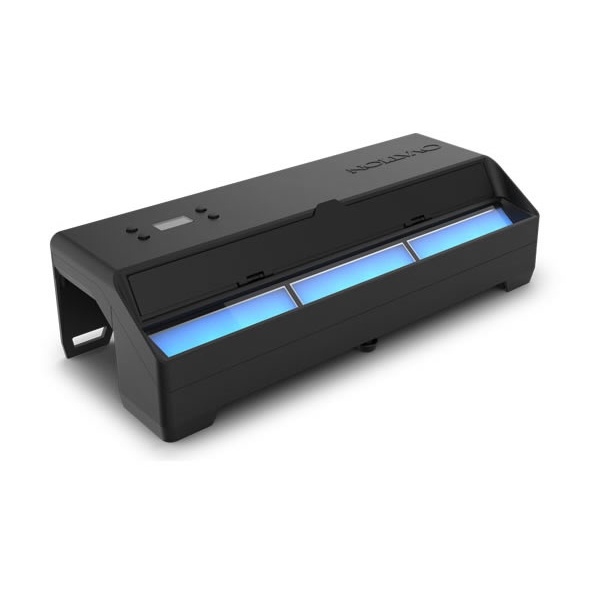

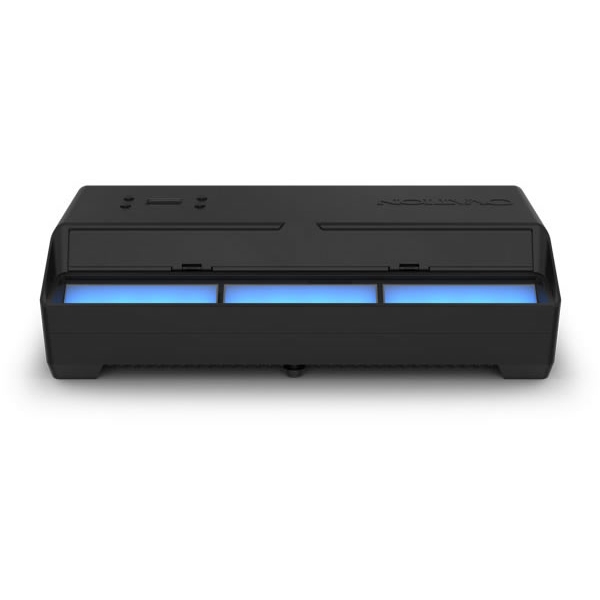

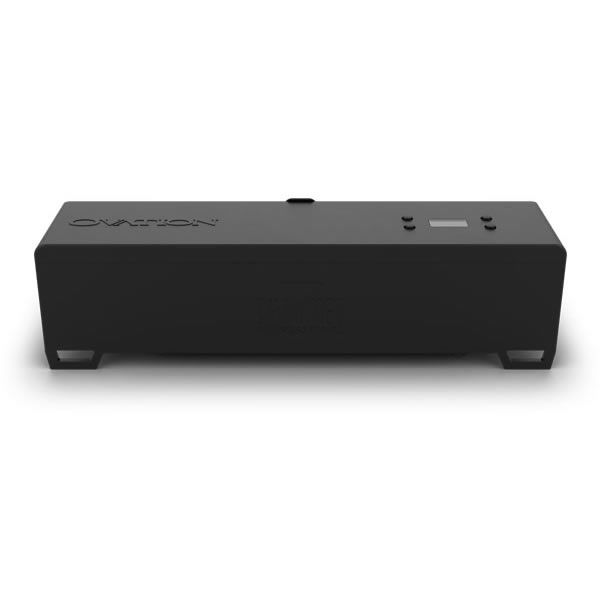

Chauvet Pro Ovation CYC 1 FC Version 2 RGBAL LED Cyc Flood, 137W

Name: Chauvet Pro Ovation CYC 1 FC Version 2 RGBAL LED Cyc Flood, 137W
Brand: Chauvet Pro
Price: 1080.83 GBP
Availability: InStock

Buy 4+ units for £3372.18 Inc VAT. To Do So, Click Here to Register.

Price Each £900.69 (£1,080.83 Including VAT at 20%)

REF: JP106958

Quantity:

Chauvet Pro Ovation CYC 1 FC Version 2 RGBAL LED Cyc Flood, 137W

The Chauvet Pro Ovation CYC 1 FC Version 2 RGBAL LED Cyc Flood is an incredibly sleek, discreet, and light weight CYC that delivers a wide, smooth field of light with significant reach. Completely convection cooled, the unit is ideal for applications where silent operation is critical. Ovation Cyc 1 FC features the advanced RGBAL color-mixing system found in our other Full Color Ovation units to render nearly any color with tremendous realism and saturation. Given the low-profile of the unit, it can also be used effectively as a footlight. The versatile fixture has an integrated kick stand and included glare shield that can adjust and shape its throw and also features an included omega bracket.

Click Here for Printer Friendly Version

Chauvet Pro Ovation CYC 1 FC Version 2 RGBAL LED Cyc Flood Features

- Low-profile and lightweight cyclorama wash or footlight fixture
- Display a full spectrum of hues with RGBAL LEDs for theatre, film and production
- Theatre-ready with 16-bit dimming of master dimmer and individual colors
- Beam modification with built in "kick stand" and adjustable glare shield
- Flat, even field of light with superior color mixing
- Virtual Color wheel with color matched to popular gel colors and color temperature presets
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Silent operation for use in studio and theatre applications

Chauvet Pro Ovation CYC 1 FC Version 2 RGBAL LED Cyc Flood Specifications

Optical:
- Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 1.75 to 4.57 W, (1.4 A), 6935 K, 50,000 hours life expectancy.
- Color Temperature (range): 2800 to 6500 K
- CRI (3200 K): 90.6
- Beam Angle:
  - Horizontal: 81.1°
  - Vertical: 87.1°
- Field Angle:
  - Horizontal: 124.6°
  - Vertical: 148.1°
- Lumens: 8,966
- Illuminance: 210 lux @ 5 m
- PWM Frequency: 600, 1200, 2000, 4000, 6000, 25,000 Hz

Dynamic Effects:
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 27 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No

Connections:
- Power Connection: Edison (Local) plug to PowerCON IP65
- Power Input: PowerCON IP65
- Power Output: PowerCON IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: DMX, RDM
- DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16 or HSV
- Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16 HSV)

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 11 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
- Power and Current: 137 W, 0.58 A @ 230 V, 50 Hz

Certification / Qualification:
- CE, MET, FCC
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Physical:
- Exterior Color: Black
- Housing Material: Aluminum die-cast
- Dimensions (W x H x D): 410 x 160 x 110 mm (16.14 x 6.29 x 4.33 inches)
- Weight: 4.2 kg (9 lb)

Further Product Information Below

Chauvet Pro Ovation CYC 1 FC Version 2 Manual (PDF)

Chauvet Pro Ovation CYC 1 FC Version 2 Data Sheet (PDF)

Chauvet Pro Ovation CYC 1 FC Version 2 Quick Reference Guide (PDF)

Chauvet Pro Ovation CYC 1 FC Version 2 RGBAL LED Cyc Flood Supplied With

- Chauvet OVATION CYC-1FC
- PowerCON IP65 power cord
- Omega bracket with mounting hardware
