Chauvet Pro COLORdash Par H18X RGBWA-UV LED Wash

Name: Chauvet Pro COLORdash Par H18X RGBWA-UV LED Wash
Brand: Chauvet Pro
Price: 636.47 GBP
Availability: InStock

Buy 4+ units for £1985.78 Inc VAT. To Do So, Click Here to Register.

Price Each £530.39 (£636.47 Including VAT at 20%)

REF: JP107397

Quantity:

Chauvet Pro COLORdash Par H18X RGBWA-UV LED Wash

The Chauvet Pro COLORdash Par H18X RGBWA-UV LED Wash efficiently delivers a broad palette of subtle to saturated colors with beautiful precision and over 5,700 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin colour temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H18X is a die-cast workhorse that withstands the rigours of real world use while offering convenient operation and excellent performance, in the rig or on the floor, live or on camera.

Click Here for Printer Friendly Version

Chauvet Pro COLORdash Par H18X RGBWA-UV LED Wash Features

- Rugged RGBWA-UV LED wash for events
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- RDM (Remote Device Management) for added flexibility
- Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
- Easy to read OLED display with password protection and touchscreen interface
- Advanced optics provide exceptional colour mixing and high efficiency
- Double-bracketed yoke with omega bracket doubles as floor stand

Chauvet Pro COLORdash Par H18X RGBWA-UV LED Wash Specifications

Optical:
- Light Source: 18 LEDs (HEX-colour RGBWAUV) 150 W, (550 mA),
- 50,000 hours life expectancy.
- Colour Temperature
- Range: 2800 to 10,000K
- At full: 9507K
- Beam Angle: 23.6°
- Field Angle: 38.6°
- Lumens: 5,736
- Illuminance: 1,207 lux @ 5 m
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects:
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 20 Hz
- Standalone Colour Mixing: Yes
- Colour Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes

Connections:
- Power Connection: Edison (local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: DMX, RDM
- DMX Channels: 6, 8, 9, 13 or 14
- Modes/Personalities: 3 personalities (6ch, 8ch, 9ch, 13ch, 14ch)

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 9 units @ 120 V; 15 units @ 208 V; 17 units @ 230 V
- Power and Current: 152 W, 0.704 A @ 230 V, 50 Hz

Certification / Qualification:
- CE, MET, FCC, UKCA
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Physical:
- Dimensions: 12.45 x 4.38 x 8.68 in (316.4 x 111.5 x 220.7 mm)
- Weight: 10.4 lb (4.7 kg)
- Exterior Colour: Black
- Housing Material: Aluminium die-cast
- Accessory Holder/Gel Frame Size: 9.25 in (235 mm)

Further Product Information Below

Chauvet Pro COLORdash Par H18X Manual (PDF)

Chauvet Pro COLORdash Par H18X Quick Reference Guide (PDF)

Chauvet Pro COLORdash Par H18X Data Sheet (PDF)

Chauvet Pro COLORdash Par H18X RGBWA-UV LED Wash Supplied With

- Chauvet COLORdash PAR H18X
- Seetronic Powerkon IP65 power cord
- Gel frame holder
- Omega bracket

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Chauvet Pro COLORdash Par H18X RGBWA-UV LED Wash

Related products:

Chauvet Pro COLORdash Par H18X Barn Doors

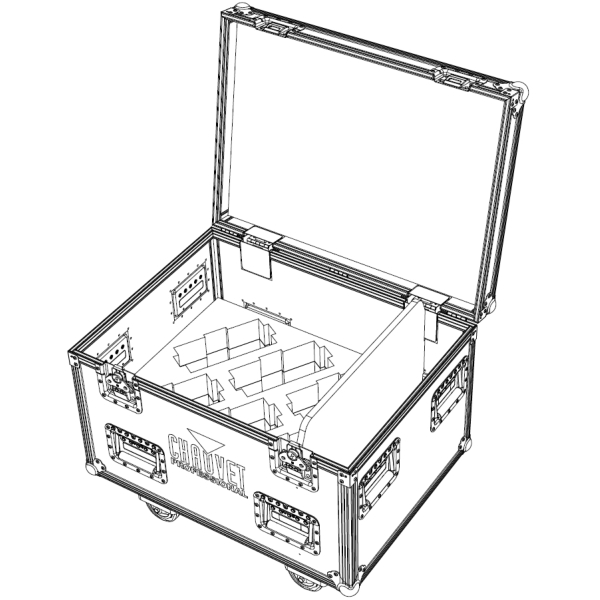

Chauvet Flight Case for 6x Chauvet COLORDash PAR H18X
