Chauvet Pro Net-X II Ethernet to DMX Node

Name: Chauvet Pro Net-X II Ethernet to DMX Node
Brand: Chauvet Pro
SKU: JP99408
Price: 1003.6 GBP
Availability: InStock

Buy 2+ units for £1565.61 Inc VAT. To Do So, Click Here to Register.

Price Each £836.33 (£1,003.60 Including VAT at 20%)

REF: JP99408

Quantity:

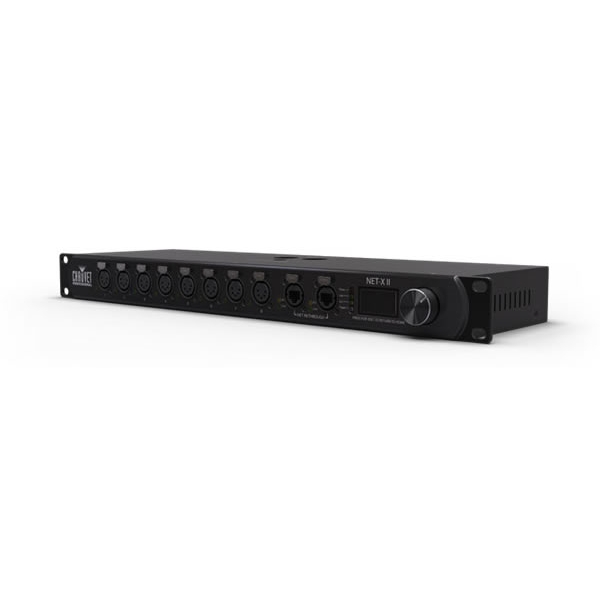

Chauvet Pro Net-X II Ethernet to DMX Node

The Chauvet Pro Net-X II Ethernet to DMX Node is a versatile rack-mountable Ethernet-to-DMX node, which also functions as a merger for two controllers on either Ethernet or DMX inputs. It has the ability to record up to 10 DMX presets which can be triggered remotely. Net-X II has two 5-pin DMX inputs and eight 5-pin DMX outputs -all optically isolated, and can output up to eight universes simultaneously. The eight 5-pin DMX outputs can be individually assigned to either of the two DMX inputs or the Ethernet inputs to mix network inputs with DMX inputs in a single device. LTP and HTP merging fully supports network protocols sACN, Art-Net or DMX to merge two incoming controllers to any DMX output. It has RDM over network functionality. Net-X II provides a reliable platform for novice users with its preset configuration library, while providing experts with a highly customizable network infrastructure for complex control systems.

Click Here for Printer Friendly Version

Chauvet Pro Net-X II Ethernet to DMX Node Features

- 5-pin DMX splitter/distributor
- Art-Net/sACN to DMX converter, up to 8 universes
- DMX to Art-Net/sACN converter, up to 8 universes
- Merge two 5-pin DMX universes into a single universe, or merge 2 NET controllers (Art-Net or sACN) into the same universe, then convert to standard 5-pin DMX for the outputs
- HTP (highest takes priority) and LTP (latest takes priority) merge functions supported
- Backup settings and configurations with same or other NET-X IIs
- Webserver supported for remote configuration and backup/update
- Integrated Record function allows you to record looks from a controller and save them into memory (10 shows in memory, 100 steps each) to trigger up to 4 shows/zones simultaneously using the 5-wire Phoenix cold contacts on the rear of the unit
- Supports RDM over Art-Net

Chauvet Pro Net-X II Ethernet to DMX Node Specifications

Optical:
- Dimensions: 19 x 6.22 x 1.73 in (483 x 158 x 44 mm)
- Weight: 4.6 lb (2.1 kg)
- Threaded Bolt: M12
- Exterior Color: Black
- Housing Material: Steel
- Rackmount: 1U

Construction / Physical:
- Power Connection: Edison (Local) plug to Neutrik powerCON
- Power Input: Neutrik powerCON
- Device Data Inputs: Neutrik etherCON (1 total) and 5-pin XLR (2 total)
- Device Data Outputs: 5-pin XLR (8 total)
- Device Date Throughputs: Neutrik etherCON (1 total)
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: Art-Net, DMX, sACN
- Merge Support: Yes
- Protocol Merging: (2) Art-net consoles, (2) DMX consoles, (2) sACN consoles

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz
- Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz
- Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz

Certifications / Qualifications::
- CE
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Further Product Information Below

Chauvet Pro Net-X II User Manual (PDF)

Chauvet Pro Net-X II Ethernet to DMX Node Includes:
- Net-X II
- Neutrik powerCON power cord
- Phoenix connector

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Chauvet Pro Net-X II Ethernet to DMX Node

Related products:

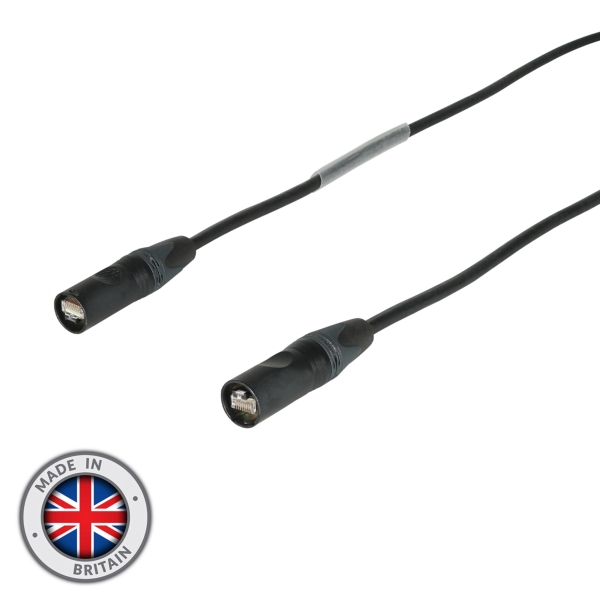

elumen8 5m CAT6A EtherCON Cable
