Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot

Name: Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot
Brand: Chauvet DJ
Price: 141.5 GBP
Availability: InStock

Price Each £117.92 (£141.50 Including VAT at 20%)

REF: JP108845

Quantity:

Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot

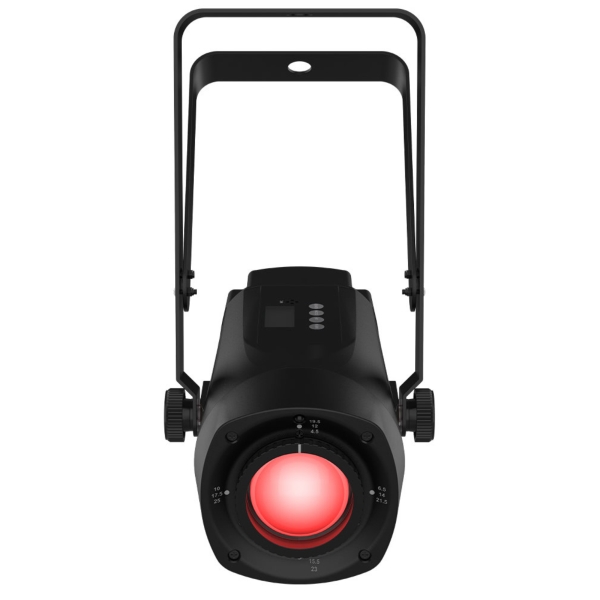

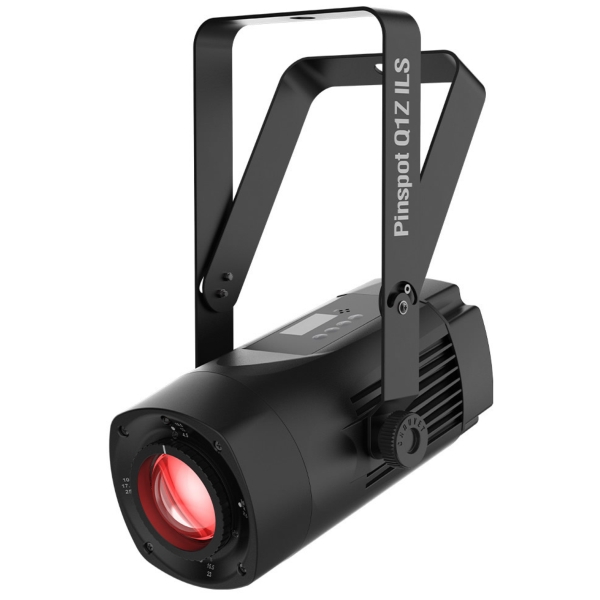

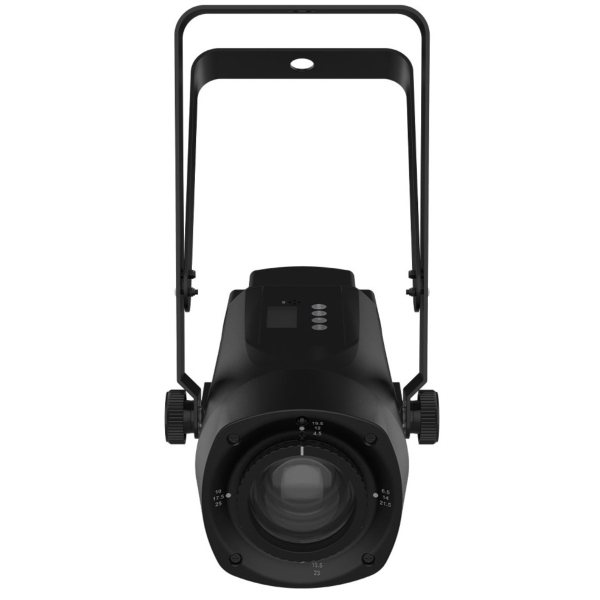

The Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot is a compact 20-watt quad-color (RGBW) LED pinspot fixture with easy menu navigation from the OLED display. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Its manual zoom brings versatility to both short and long throw applications. Conveniently control this easy-to-use fixture with the IRC-6 remote, or your chosen ILS leader such as the ILS Command.

Click Here for Printer Friendly Version

Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot Features

- Compact pinspot fitted with a 20W quad-color RGBW LED
- Manual zoom for short or long throw applications
- D-Fi USB compatibility for wireless master/slave or DMX control
- Easy navigation and access to all functions directly from the OLED display
- Convenient, wireless non-DMX control using the IRC-6 remote.
- Fits best in the CHS-40 VIP Gear Bag

Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot Specifications

- DMX Channels: 4, 6, or 7

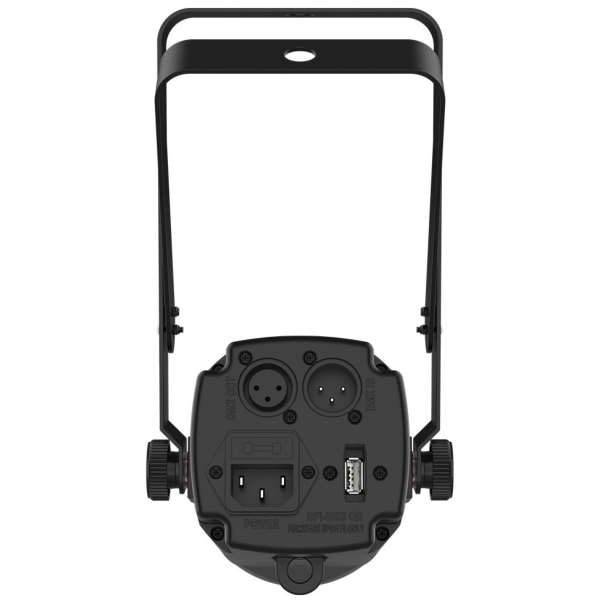

- DMX Connectors: 3-pin XLR
- Light Source: 1 LED (quad-color RGBW) 20 W, (5.3A), 50,000 hours life expectancy
- Strobe Rate: 0 to 33 Hz
- Zoom Angle: 5° to 25°
- Lumens: 617
- Weight: 1.36 kg (3 lb)
- Size: 308 x 89 x 217 mm (12.1 x 3.5 x 8.5 inches)
- Approvals: CE, UKCA, ROHS
- Power and Current: 20 W, .2 A @ 230 V, 50 Hz
- Optional Controllers: IRC6, ILSCOMMAND
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Bracket Mounting Hole: M12
- Illuminance:
- Narrow: 4,081 lux @ 2 m
- Wide: 623 lux @ 2 m

Further Product Information Below

Chauvet DJ LED Pinspot Q1Z ILS Quick Reference Guide (PDF)

Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot Supplied With

- Chauvet Pinspot Q1Z ILS
- Power cord
- Quick Reference Guide
