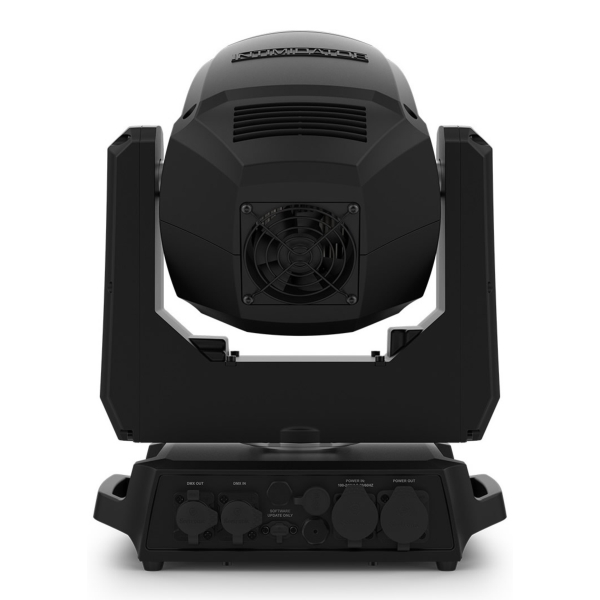

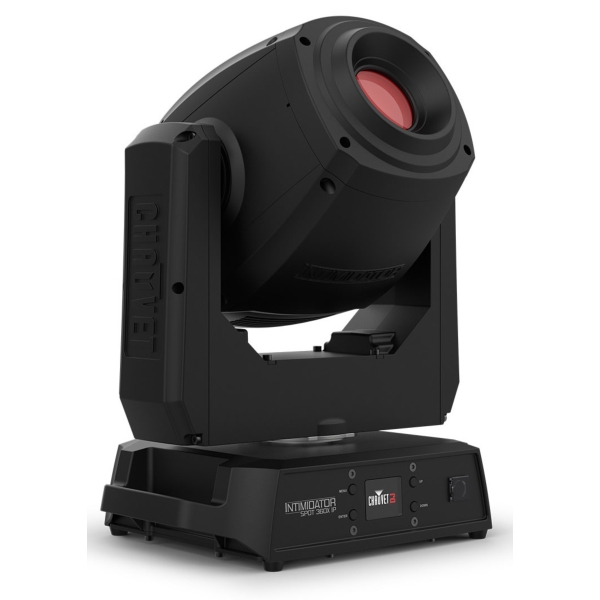

Chauvet DJ Intimidator Spot 360X IP 100W LED Moving Head - IP65

Chauvet DJ Intimidator Spot 360X IP 100W LED Moving Head Features

- Outdoor-rated moving head designed for situations where mother nature gets in the way
- Water resistant power input/output connections save setup time
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
- New home position allows for smoother programming
- Durable magnalium housing is lightweight, strong and corrosion resistant
- Dual rotating prisms split the beam for great effects and cover a larger area
- ¼-turn hanging bracket allows for single or dual clamp mounting options
- Project crisp gobos from nearly any distance with the motorized focus
- Beams always remain on the dance floor using the built-in, innovative Totem mode
- Set, save, and recall 1 scene manually, directly from the full-colour LCD display
- Fits best in the Intimidator Road Case

Chauvet DJ Intimidator Spot 360X IP 100W LED Moving Head Specifications

- DMX Channels: 8 or 14
- DMX Connectors: 3-pin XLR
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colours: 8 + white, split colours, continuous scroll at variable speeds
- Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Light Source: 1 LED (cool white) 100 W, (4.3 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 19°
- Lumens: 4268
- IP Rating: IP65
- Approvals: CE, MET, UKCA, ROHS
- Gobo Size: 24 mm outside, 20 mm image, 0.5 mm max thickness
- Prism:
  - 5-facet linear, bi-directional at variable speeds
  - 3-facet round, bi-directional at variable speeds
- Illuminance:
  - 2m: 23,978 lux
  - 5m: 3,836 lux
- Colour Temperature: 15,000 K
- Startup Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
- Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)
- Cable Length: 5 ft (1.5 m)
- Bracket Mounting Hole: 13 mm

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 5 units @ 120 V; 9 units @ 230 Vv
- Power and Current: 185 W, 1.4 A @ 230 V, 50 Hz

Physical:
- Dimensions (W x H x D): 299 x 406 x 217 mm (11.8 x 15.9 x 8.5 inches)
- Weight: 10.4 kg (23 lbs)

Further Product Information Below

Chauvet DJ Intimidator Spot 360X IP Manual (PDF)

Chauvet DJ Intimidator Spot 360X IP Quick Reference Guide (PDF)

Chauvet DJ Intimidator Spot 360X IP 100W LED Moving Head Supplied With

- Chauvet Intimidator Spot 360X IP
- Power cord
- Hanging bracket
- Quick Reference Guide
